TE CONNECTIVITY TE300B2K7J Datasheet & Stock

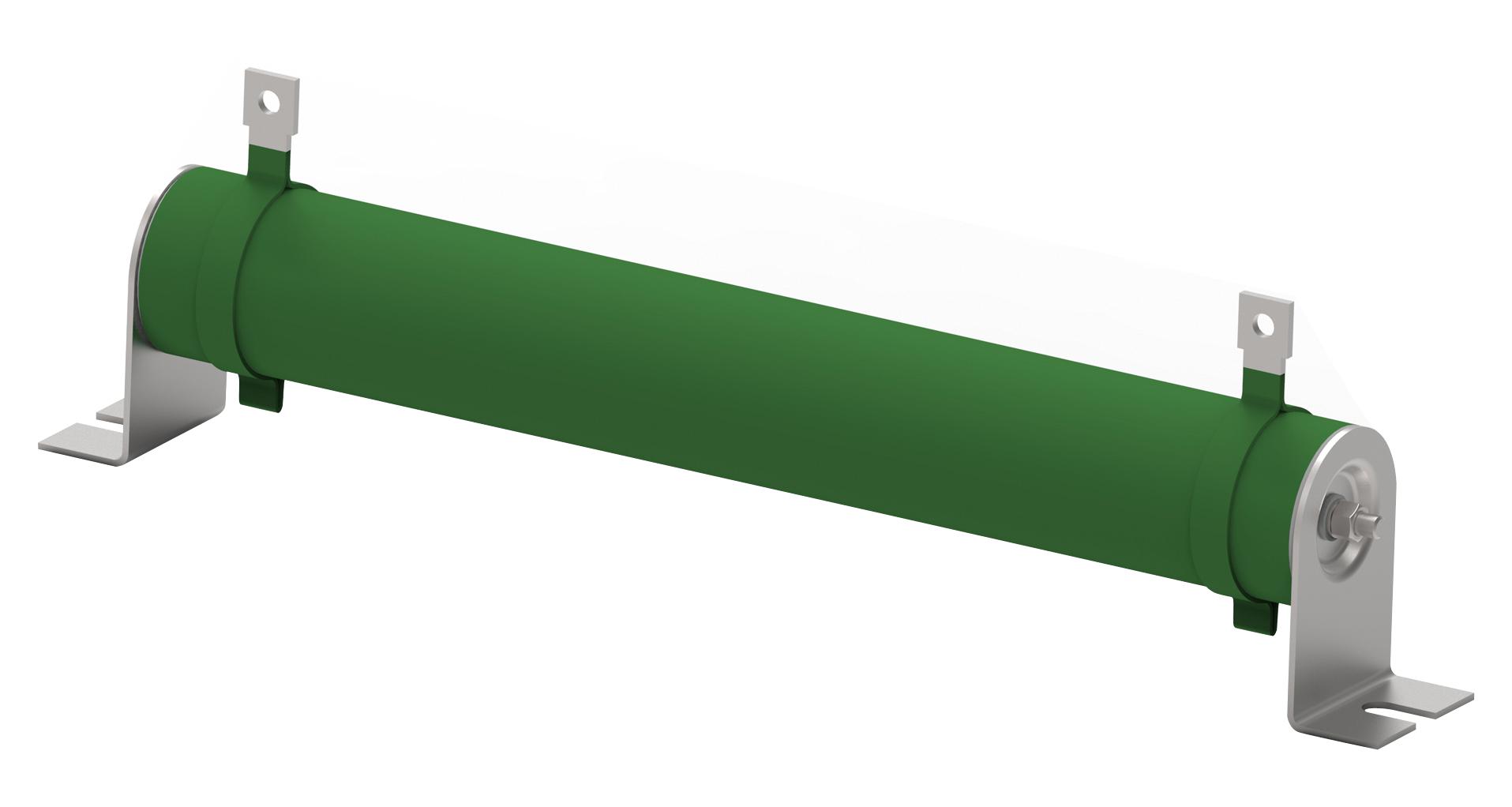

Type TE series high power wire wound resistors are flameproof coated tubular ceramic core resistors which uses both standard and edge wound (corrugated) winding methods to improve power handling capability. Designed for heavy duty machinery, electrical equipment and motor control applications which requiring stability and reliability. Typical applications include large electrical and production machinery, load test simulation, motor start/stop cycles, dynamic braking and equipment discharge.




Flameproof construction, UL94V coating

Operating temperature range from -55 to +155°C

3 x rated power / 5 seconds short term overload

Dielectric strength of 2500VAC minimum

Insulation resistance of 20Mohm minimum at 500VDC

With bracket (standard) mounting
