TE CONNECTIVITY 02350512000 Heavy-Duty DC Gage Head
The GCD Series heavy-duty DC gage heads are designed for industrial environments featuring moisture, dirt, and fluid contaminants. Made from all-welded stainless steel with hermetically sealed housing, these sensors provide high performance and durability. They operate on a +15VDC supply, offering an extremely linear, low noise +10VDC output, and feature long strokes up to 2 inches. With a stainless steel contact tip, high side load resistance, and a rugged construction, they ensure accurate in-process measurements in factory automation, steel mills, and metal gaging environments.
TE CONNECTIVITY 02350512000 Heavy-Duty DC Gage Head Specifications:
- Hermetically sealed housing
- Repeatability: 25 u-inch [0.6 um]
- IEC IP68 rating up to 1,000 PSI [70 bars]
- Stroke range: +0.050 to +2 inches [+1.27 to +50.8 mm]
- Materials: AISI 400 Series stainless steel housing, hardened contact tip
- Operating temperature: +32°F to +160°F [0°C to 70°C]
- Survival temperature: -65°F to +200°F [-55°C to 95°C]
- Shock: 250 g (11 ms half-sine)
- Vibration: 10 g up to 2 kHz
- Electrical connector: 6-pin MIL-C-5015 type
- Output: +/-10VDC, with high linearity and low noise
- Spring force: Typically 90z [255 grams]
- Overall body length range: 4.02 to 17.12 inches
- Weight: 2.5 oz to 14 oz depending on model

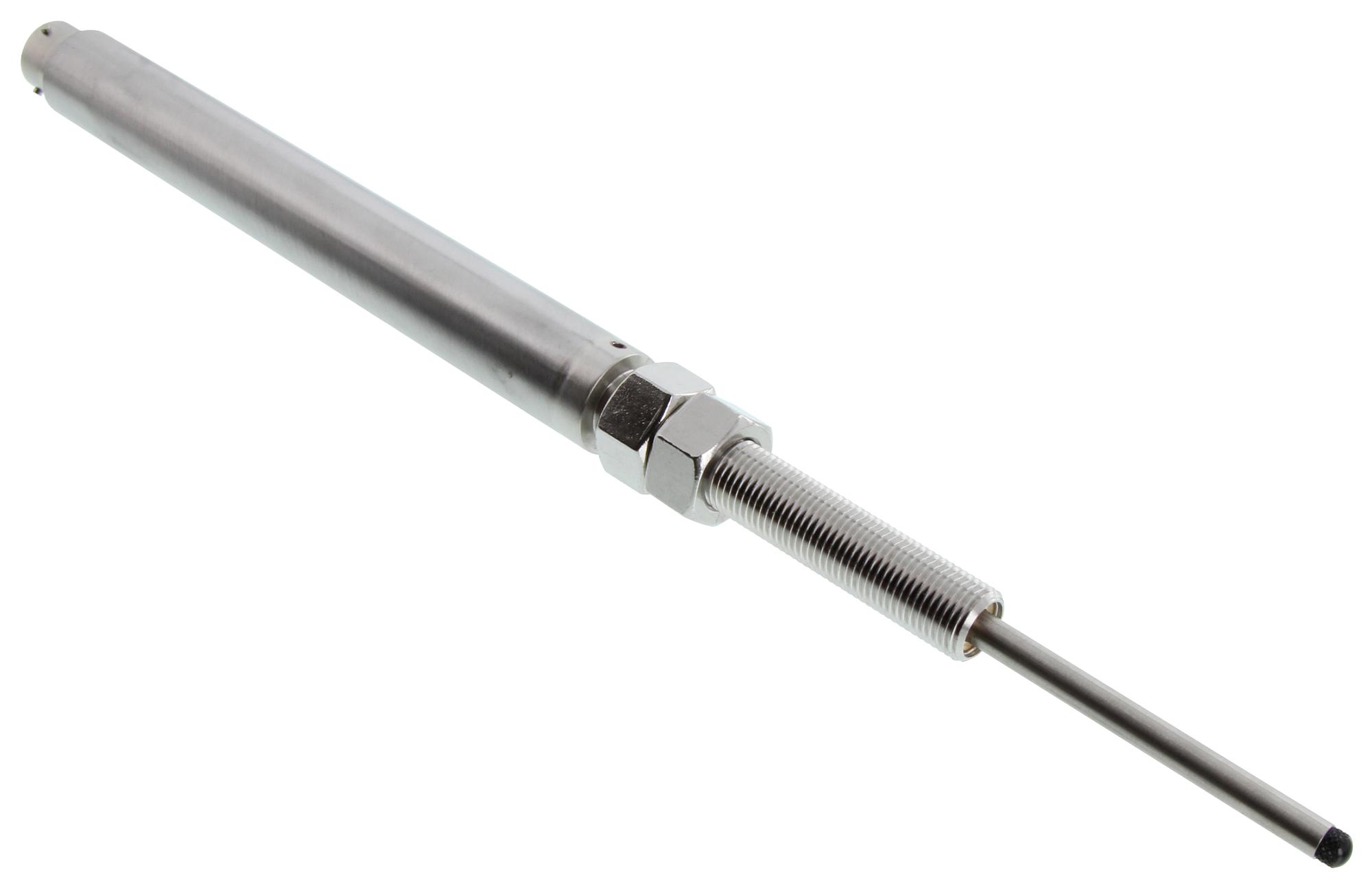

Buy the Measurement Specialties GCD-2000 Reliable Gage for Industrial Applications
Purchase the durable GCD Series heavy-duty DC gage head online today to enhance your industrial measurement systems. Designed for tough environments with moisture, dirt, and fluid contamination, these stainless steel sensors provide high accuracy, long stroke capability, and hermetic sealing. Easy to install with a welded connector and rugged construction, they deliver reliable, high-performance measurements for factory automation, steel mills, and metal gaging applications. Get yours now for unmatched durability and precision in your operations.
Order your Measurement Specialties GCD-2000 series DC gage head today and ensure your industrial precision measurements are always dependable, durable, and accurate for tough environments.
