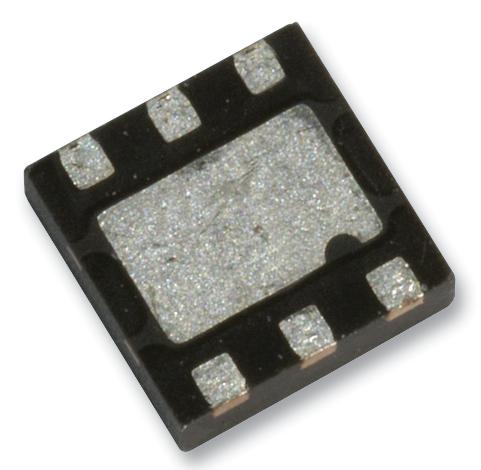

TE CONNECTIVITY 1014204800 Digital Humidity and Temperature Sensor
The HTU31D is a compact, high-accuracy digital humidity and temperature sensor ideal for diverse applications like home appliances, medical devices, and environmental monitoring. Fully calibrated and temperature compensated, it offers typical accuracy of ±2%RH and ±0.2°C, with fast response times of 5 and 10 seconds for humidity and temperature, respectively. Its robust 6-pin DFN package makes reflow soldering straightforward, supporting low power consumption of approximately 3.78μW. The sensor is qualified to AEC Q100 grade 1 standard, ensuring high reliability in demanding environments.
TE CONNECTIVITY 1014204800 Digital Humidity and Temperature Sensor Specifications:
- Operating Range: 0 to 100 %RH, -40 to 125°C
- Accuracy: ±2%RH, ±0.2°C
- Resolution: 0.01 %RH, 0.016°C
- Response Time: Humidity 5 s, Temperature 10 s
- Long term drift: 0.5 %RH/year, 0.04°C/year
- Supply Voltage: 3V to 5.5V, typical 5V
- Power Consumption: 3.78μW (typical)
- Package: 6-pin DFN
- Supports I2C Interface with configurable addresses
- Qualified: AEC Q100 Grade 1
- Certifications: RoHS, REACH compliant
- Built-in heater for moisture removal, diagnostics capabilities
- Traceability: Laser-marked with serial number and manufacturing info
- Package dimensions: approximately 2.5 mm x 2.5 mm x 0.9 mm
- Storage & handling: Store in anti-static packaging, shelf life 1 year at <30°C and 85% RH
Buy the TE Connectivity Series HTU31 Digital Humidity Temperature Sensor: 1014204800
Purchase the TE Connectivity Series HTU31 digital humidity and temperature sensor online today and enhance your environmental monitoring systems. This compact, highly accurate sensor features fast response times, low power consumption, and full calibration with temperature compensation. Ideal for medical devices, home appliances, and industrial applications, it supports easy integration via I2C interface, with configurable addresses and diagnostics. Trust in its robust design, compliance with industry standards, and traceability options to deliver reliable performance in demanding conditions. Buy now for quality, precision, and peace of mind.
Order your TE Connectivity Series HTU31 humidity and temperature sensor today and ensure reliable environmental monitoring in your critical applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 1014204800?
You can click on the BUY or RFQ button to purchase 1014204800 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 1014204800?
You can download the 1014204800 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 1014204800?
TE CONNECTIVITY
