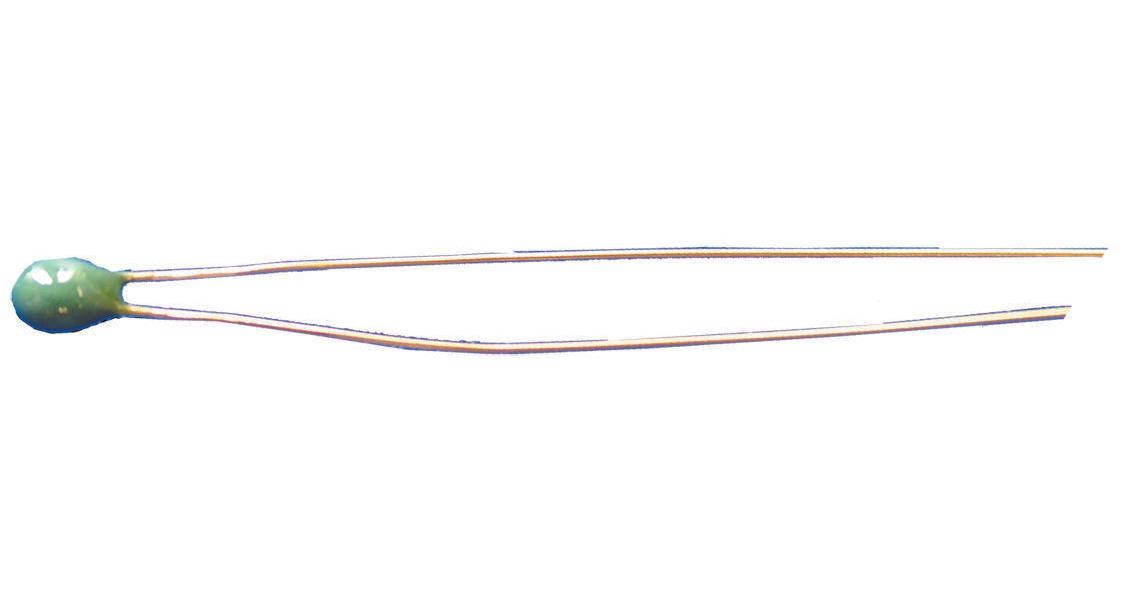

TE CONNECTIVITY 1102619900 Precision Epoxy NTC Thermistor
The TE Connectivity 44031RC Precision Epoxy NTC Thermistor is a robust and reliable component designed for a wide range of applications requiring accurate temperature sensing. Encapsulated in thermally conductive epoxy, it utilizes a high-stability pressed-disk ceramic sensor to ensure consistent performance. This thermistor is RoHS compliant and suitable for mid-range temperature applications, tight tolerance instrumentation, and environments requiring sensing of small temperature changes. Its construction provides good long-term stability and interchangeability, making it a versatile choice for various industrial and commercial uses.
TE CONNECTIVITY 1102619900 Precision Epoxy NTC Thermistor Specifications:
- Resistance @ 25°C: 10,000 ohms
- Tolerance on Resistance: ±0.1°C (0°C to 70°C)
- Beta Value 25/85: 3978 K
- Tolerance on Beta Value: 0.4%
- Time response in air: < 10 seconds
- Dissipation Constant in air: 1 mW/°C
- Insulation Resistance: ≥ 100 Mohms (for 1 second)
- Maximum Diameter: 0.095" (2.4 mm)
- Lead Material: 32 AWG, 3" (7.6 cm) long Silver plated copper leads
- Operating Temperature Range: 0°C to 70°C
- MOQ: 300
