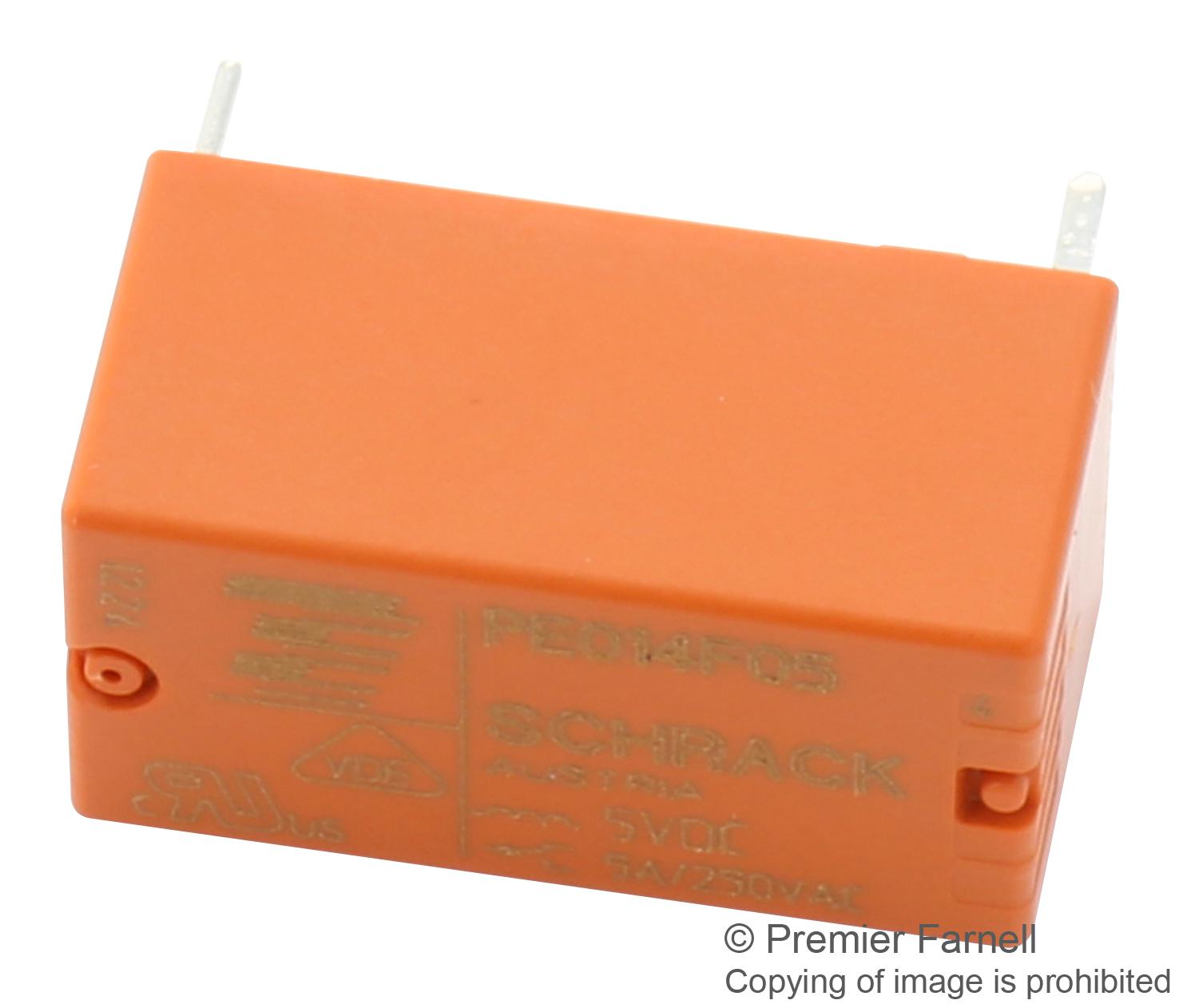

TE CONNECTIVITY 114153901 Miniature PCB Relay
The TE CONNECTIVITY 1-1415390-1 is a miniature PCB relay designed for a variety of applications requiring reliable and compact switching solutions. Its polarized bistable design ensures consistent operation, while the sensitive 200mW coil allows for efficient power consumption. This relay is ideal for use in room thermostats, electricity meters, domotic devices, white goods, and battery-powered controls. It meets RoHS compliance standards and offers robust performance with a dielectric strength of 4000 Vrms and a shock resistance of over 100g. The relay's compact size and flux-proof design make it suitable for space-constrained applications.
TE CONNECTIVITY 114153901 Miniature PCB Relay Specifications:
- Contact configuration: 1 CO contact
- Contact set: single contact
- Type of interruption: micro disconnection
- Rated current: 5 A
- Rated voltage / max.switching voltage AC: 240/400 VAC
- Maximum breaking capacity AC: 1250 VA
- Contact material: AgNi90/10
- Mechanical endurance: 5x10^6 cycles
- Rated frequency of operation: 6 / 1200 min-1
- Coil power: typ. 200 mW
- Ambient temperature: 70 °C
- Low height: 10.0 mm
- Coil voltage range: 2.2...48 VDC
- Reset voltage maximum: <120% at -40°C
- Minimum energization duration: 20 ms
- Maximum energization duration: <1 min at <10% duty factor
- Dielectric strength coil-contact circuit: 4000 Vrms
- Dielectric strength open contact circuit: 1000 Vrms
- Clearance / creepage coil-contact circuit: W 3,2 / 4 mm
- Material group of insulation parts: IIIa
- Tracking index of relay base: PTI 250
- Insulation to IEC 60664-1: basic
- Rated insulation voltage: 250 V
- Pollution degree: 3
- Rated voltage system: 230 V / 400 V
- Overvoltage category: III
- Flammability class: V-0
- Shock resistance: > 100 g
- Category of protection: RTII - flux proof
- Resistance to soldering heat: 270°C / 10 s
- Relay weight: 5 g
- Packaging unit: 25/500 pcs
