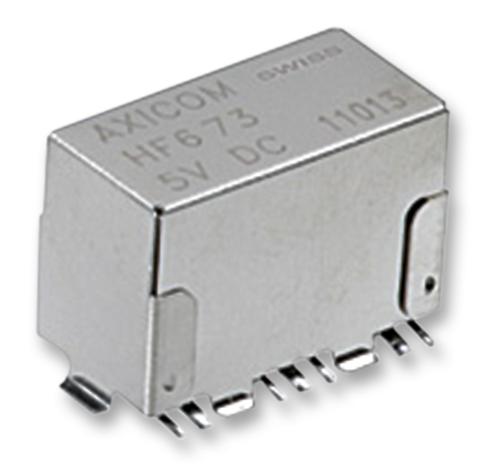

TE CONNECTIVITY 114620527 RF Signal Relay
The TE Connectivity HF6 relay is a high-performance RF signal relay designed for demanding applications such as wireless base stations, antennas, and measurement equipment. This relay offers a wide frequency range (DC to 6GHz), a 50Ω impedance, and compact dimensions (16x7.6x10mm). It features a 1 form C contact configuration, is immersion cleanable, and exhibits low power consumption (≤140mW). The HF6 relay is designed for reliable switching in RF circuits and is suitable for use in harsh environments.
TE CONNECTIVITY 114620527 RF Signal Relay Specifications:
- Frequency range: DC to 6GHz
- Impedance: 50Ω
- Dimensions: 16x7.6x10mm
- Contact type: 1 form C (1 changeover)
- Cleaning: Immersion cleanable
- Power consumption: ≤140mW
- Switching voltage (max): 220VDC, 250VAC
- Rated current: 2A
- Continuous current (limiting): 2A
- Switching power: 60W, 62.5VA, 50W (2.5GHz)
- Contact material: Ag, Au covered
- Minimum switching voltage: 100µV
- Operate time: typ. 3ms, max. 5ms
- Release time: typ. 2ms, max. 5ms (without diode)
- Bounce time: max. typ. 1ms, max. 3ms
- Mechanical endurance: 10 operations
- Coil voltage range: 3 to 24VDC
- Dielectric strength (open contacts): 600Vrms
- Dielectric strength (contact-coil): 1000Vrms
- Surge withstand voltage (open contacts): 1000V
- Surge withstand voltage (contact-coil): 1500V
- Isolation at 3GHz: 60dB
- Insertion loss at 3GHz: 0.15dB
- VSWR at 3GHz: 1.10
- Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
- Ambient temperature range: -55°C to +85°C
- Thermal resistance: <165K/W
- Protection degree: IP 67
- Vibration resistance: 35g, 10 to 1000Hz
- Shock resistance (functional): 50g
- Shock resistance (destructive): 150g
- Terminal type: SMT
- Weight: max. 3g
- Soldering heat resistance: 250°C/10s
- Moisture sensitivity level: MSL3
- Packaging: reel/400 pcs., box/400 or 2000 pcs.
