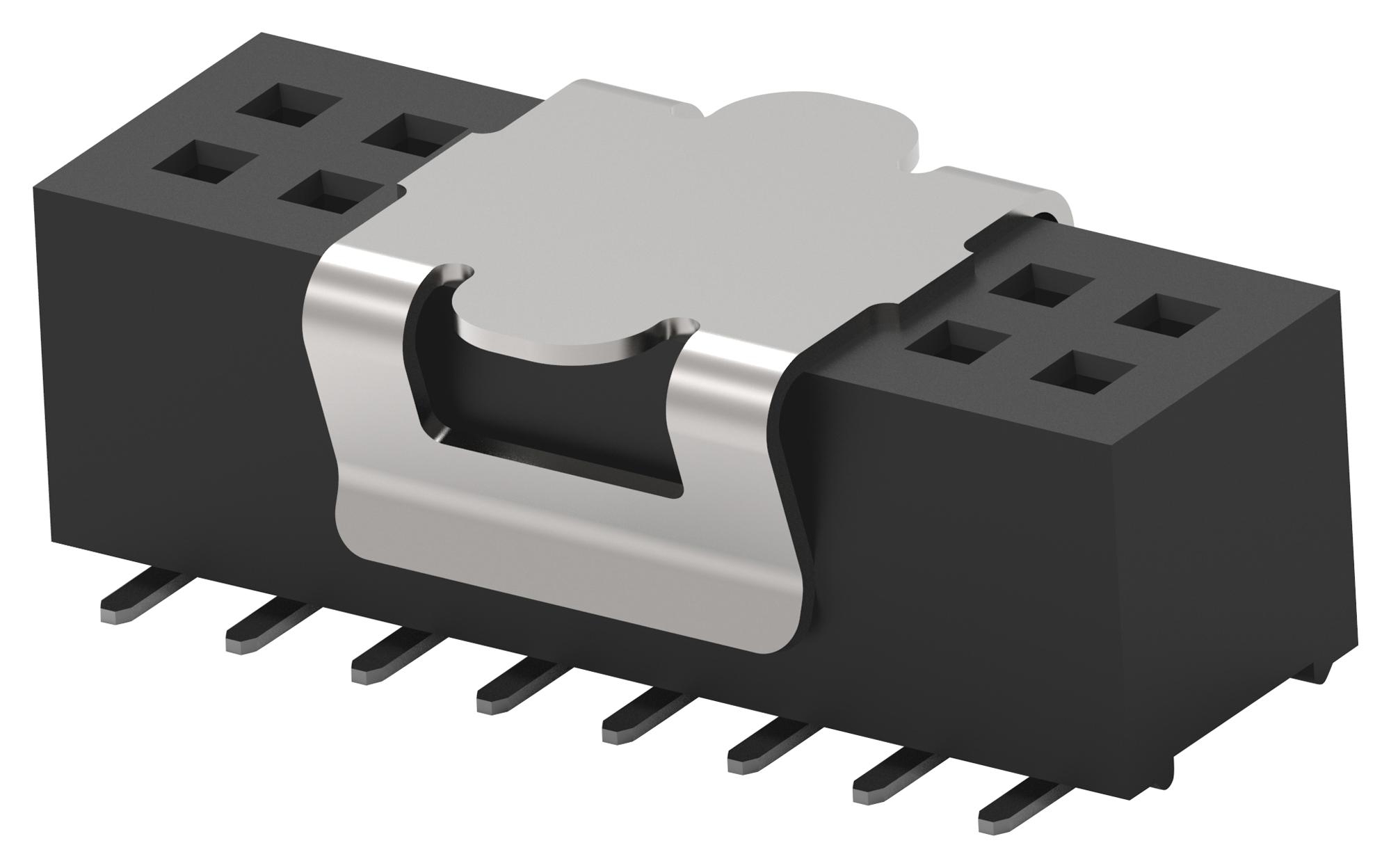

TE CONNECTIVITY 122674400 Small Centerline Connector
TE Connectivity's AMPMODU Small Centerline Interconnection System offers a space-efficient, reliable connector solution with dual-beam contacts and gold plating for enhanced durability. Designed for automated surface mounting and reflow processes, it provides up to 85% PCB space savings over standard connectors with 2.54 mm pitch. Suitable for industrial controls, automation, telecommunication, robotics, and test equipment, these 1.0 mm pitch connectors support up to 100 positions, ensuring robust signal transfer even in shock and vibration environments. Made with high-temperature thermoplastic and copper alloy contacts, they feature dual entry receptacles and RoHS, REACH, UL, and CSA compliance.
TE CONNECTIVITY 122674400 Small Centerline Connector Specifications:
- Centerline: 1.0 mm [0.0394"]
- Housing: high-temperature thermoplastic (LCP)
- Mounting style: surface mount
- Header/receptacle contact material: copper alloy
- Plating options: 30" [0.76 um] gold flash
- Receptacle entry: dual entry
- Solderibility: re-flow capable up to 260°C
- Operating temperature: -55°C to +125°C
- Operating voltage: 30VAC
- Current rating: 14A max per contact, 0.8A at header
- UL recognition: 1.0A, CSA recognition: 0.8A
- Dimensions: double row, 5-50 positions per row
- RoHS and REACH compliant
Buy the TE Connectivity Series AMPMODU Small Centerline Connectors: 122674400
Discover the space-saving and highly reliable TE Connectivity Small Centerline Connector, perfect for industrial automation, robotics, and telecommunication applications. Designed with dual-beam contacts and gold plating, it ensures secure signal transfer even in vibration and shock environments. Suitable for automated surface mounting with reflow capability up to 260°C, this connector supports up to 100 positions in a compact, high-temperature thermoplastic housing. Order online today for a durable, high-performance interconnection solution tailored for demanding industrial and high-reliability environments.
Get TE Connectivity AMPMODU Small Centerline Connector today—engineered for high reliability, space efficiency, and long-lasting durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 122674400?
You can click on the BUY or RFQ button to purchase 122674400 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 122674400?
You can download the 122674400 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 122674400?
TE CONNECTIVITY
