TE CONNECTIVITY 122674655 Interconnection System
The TE Connectivity AMPMODU Small Centerline Interconnection System features fine-pitch 1.0 mm connectors that save 85% space on PCBs compared to standard 2.54 mm connectors. Designed for reliable signal transfer even in shock and vibration conditions, it offers dual-beam contacts and supports automated surface mounting processes. With gold plating options and a high-temperature thermoplastic housing, these connectors are suitable for industrial controls, automation, robotics, telecommunications, and instrumentation. The system is RoHS and REACH compliant, providing dependable performance in demanding environments.
TE CONNECTIVITY 122674655 Interconnection System Specifications:
- Centerline: 1.0 mm [0.0394"]
- Housing: high-temperature thermoplastic (LCP)
- Mounting style: surface mount
- Header/receptacle contact material: copper alloy
- Plating options: 30" [0.76 um] gold flash
- Receptacle entry: dual entry
- Receptacle contact design: dual beam with 5u" gold flash
- Operating temperature: -55°C to +125°C
- Solderability: re-flow capable up to 260°C
- Current rating: 1.0A per contact, UL recognized at 1.0A, CSA recognized at 0.8A
- Operating voltage: 30VAC
- Dielectric withstanding voltage: 300VAC
- Dimensions: 5-50 positions per row, 2 rows, vertical mounting, packaged in tubes with pick & place caps
- Compliance: RoHS, REACH

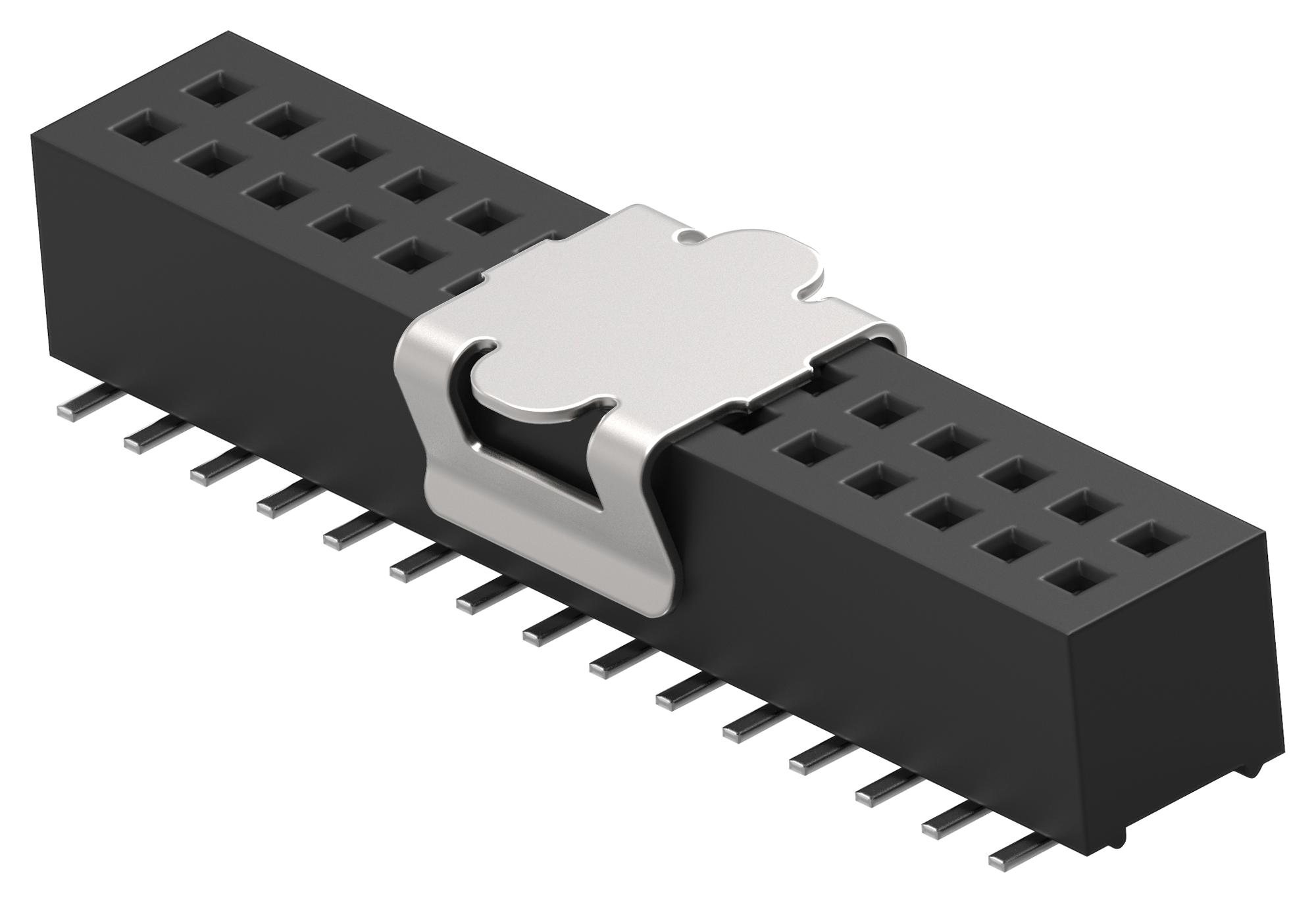

Buy the TE Series AMPMODU Small Centerline: 122674655
Purchase TE Connectivity AMPMODU Small Centerline Interconnection System online today for its space-saving design, reliable dual-beam contacts, and corrosion-resistant gold plating. Perfect for industrial controls, robotics, automation, and telecommunication equipment, these connectors support surface mount assembly with reflow capabilities up to 260°C. Manufactured from high-temp thermoplastic and compliant with RoHS and REACH standards, they deliver outstanding performance in harsh environments. Simplify your assembly process and ensure dependable connections with this versatile interconnection solution, available for immediate online purchase.
Buy TE Connectivity AMPMODU Small Centerline connectors now and experience reliable, space-efficient connections for industrial automation and robotics.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 122674655?
You can click on the BUY or RFQ button to purchase 122674655 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 122674655?
You can download the 122674655 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 122674655?
TE CONNECTIVITY
