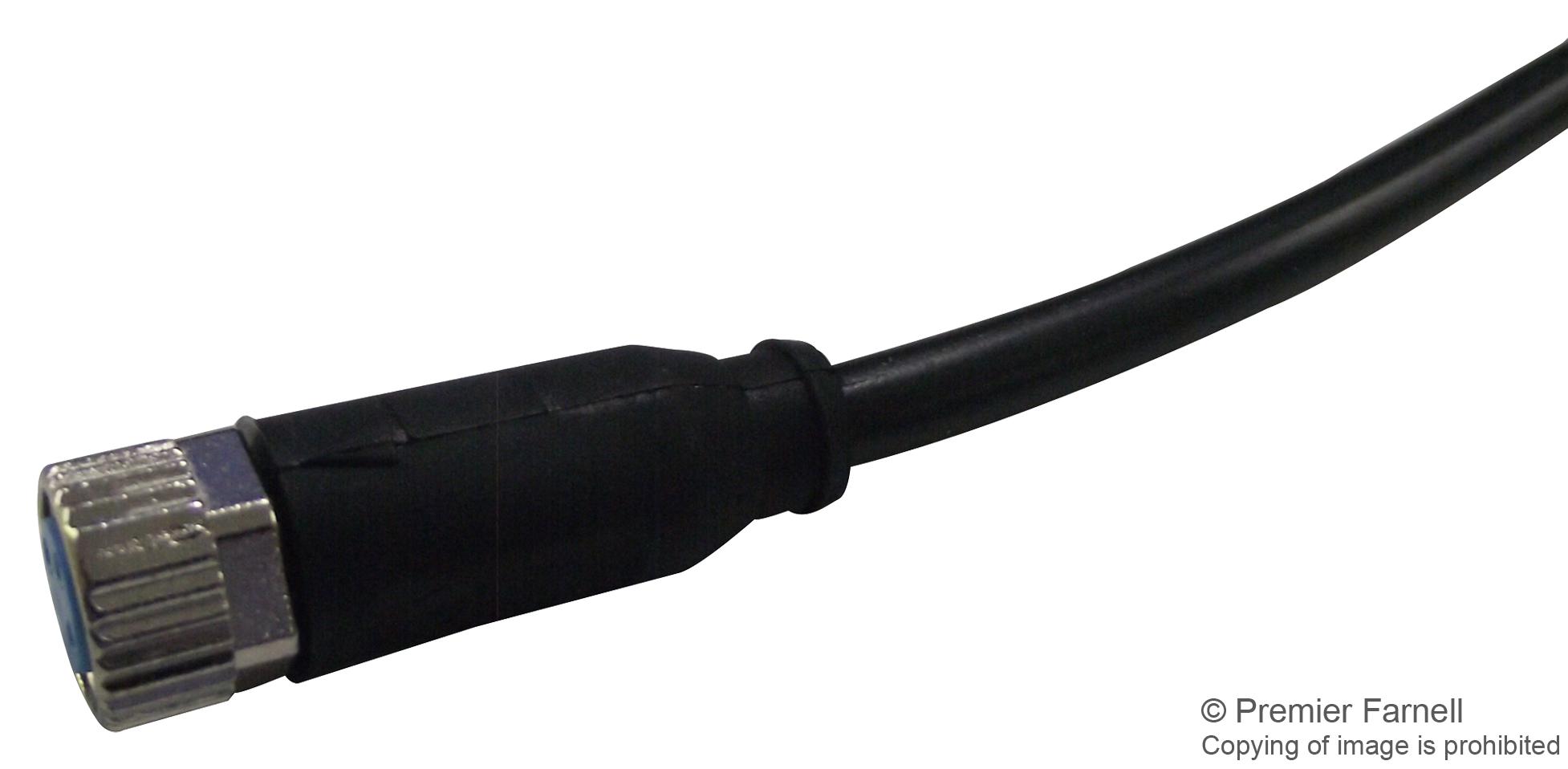

TE CONNECTIVITY 122730011 Control Cable
This product is a versatile control cable assembly designed for industrial automation and device connection. It features a durable PUR jacket with UL and CSA ratings, an outer diameter of approximately 4.5 mm, and bend radius of 10 times the outer diameter. Suitable for fixed temperatures from -30°C to +80°C and mobile use up to +80°C, it supports maximum operating voltages of 60V AC/DC and currents up to 4A per contact. The cable includes three conductors each with 0.25 mm² cross-sectional area and is available in lengths from 1.5m to 10m, making it ideal for control systems, sensor connections, and automation equipment.
TE CONNECTIVITY 122730011 Control Cable Specifications:
- Outer diameter approx. 4.5 mm
- Jacket material: PVC or PUR (UL/CSA certified)
- Bend radius: 10 x outer diameter (10 mm)
- Operating voltage max. 60 V AC/DC
- Operating current max. 4 A per contact
- Temperature range (fixed): -30°C to +80°C
- Temperature range (mobile): -5°C to +80°C
- Number of wires: 3 x 0.25 mm²
- Wire insulation: PVC or PUR (black, blue, brown)
- Length options: 1.5 m, 3 m, 5 m, 10 m
- C-track properties: 5 million flexing cycles
- Protection rating: IP65 and IP67 when plugged and screwed down
- Locking: M8 x 1 mm screw thread with recommended torque 0.4 Nm
Buy the TE Connectivity 122730011 – Reliable Control Cable for Industrial Applications
Purchase the TE Connectivity control cable online today for reliable performance in industrial systems. Featuring a durable PUR jacket, adjustable lengths, and support for high voltages, this cable is ideal for automation, sensors, and control equipment. Its robust construction ensures excellent flexibility and long-term durability, meeting safety standards with IP65 and IP67 ratings. Secure your installation with a cable designed for demanding industrial environments, ensuring dependable operation and easy integration into your control systems. Shop now and experience quality and convenience.
Get TE Connectivity 122730011 today—built for precision, durability, and flexible automation wiring.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 122730011?
You can click on the BUY or RFQ button to purchase 122730011 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 122730011?
You can download the 122730011 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 122730011?
TE CONNECTIVITY
