TE CONNECTIVITY 123142772 Sensor Module

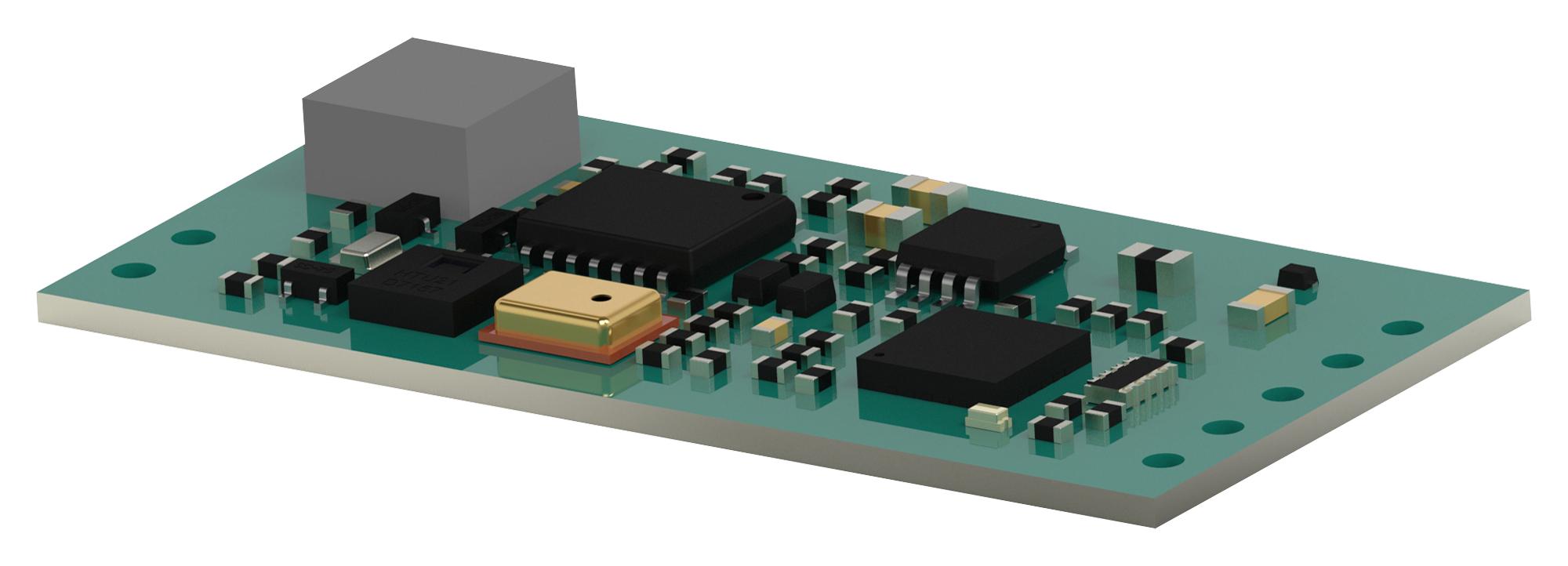

TE Connectivity's AmbiMate MS4 series sensor module features a pre-assembled PCB with dedicated sensors for motion, light, temperature, and humidity detection. This ready-to-attach module simplifies integration into host devices, reducing design effort and accelerating time to market with its pre-engineered, four-sensor solution. Optional sensors include VOC, CO2, and sound, providing versatile environmental monitoring. The module offers flexible mounting options, shared connection points, and a compact design suitable for building automation, smart home, and energy management applications, enhancing environmental control and air quality monitoring.
TE CONNECTIVITY 123142772 Sensor Module Specifications:
- Operating Temperature: 5°C to +50°C
- Storage Temperature: -40°C to +85°C
- Power Supply Input Voltage: 3.3V DC ±5%
- Relative Humidity Range: 5% to 95%, 2% accuracy
- Response Time: <0.5 seconds for motion and sound detection
- VOC Range: 0-1187 ppb, 60-second acquisition
- CO2 Measurement Range: 400-8192 ppm
- Analog Audio Output: -25 to 19 dBV
- Audio Frequency Range: 100 Hz to 10 kHz
- Dimensions: Heavy duty, compact PCB module suitable for ceiling, wall, or corner mounting
- Connectivity: 7-pin common connection, PC output at 100 kBaud, Interrupt-driven event pin
- Mounting: Several options including high-temperature headers, direct solder, or separable attach methods
Buy the TE Connectivity MS4 Series – Reliable Environmental Sensor Module for Industrial Applications
Optimize your project with the TE Connectivity AmbiMate sensor module. This compact, versatile sensor platform integrates motion, light, temperature, humidity, VOC, CO2, and sound detection, ideal for indoor environmental control, smart buildings, and energy management. Its pre-engineered PCB design simplifies installation and accelerates deployment, saving you time and resources. Perfect for ceiling, wall, or corner mounting, the module features flexible attach methods, shared connection points, and high accuracy sensors, ensuring exceptional performance in diverse industrial and automation applications.
Order your TE Connectivity MS4 sensor module today and enhance your building automation or environmental monitoring systems with precise, reliable sensing technology.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 123142772?
You can click on the BUY or RFQ button to purchase 123142772 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 123142772?
You can download the 123142772 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 123142772?
TE CONNECTIVITY
