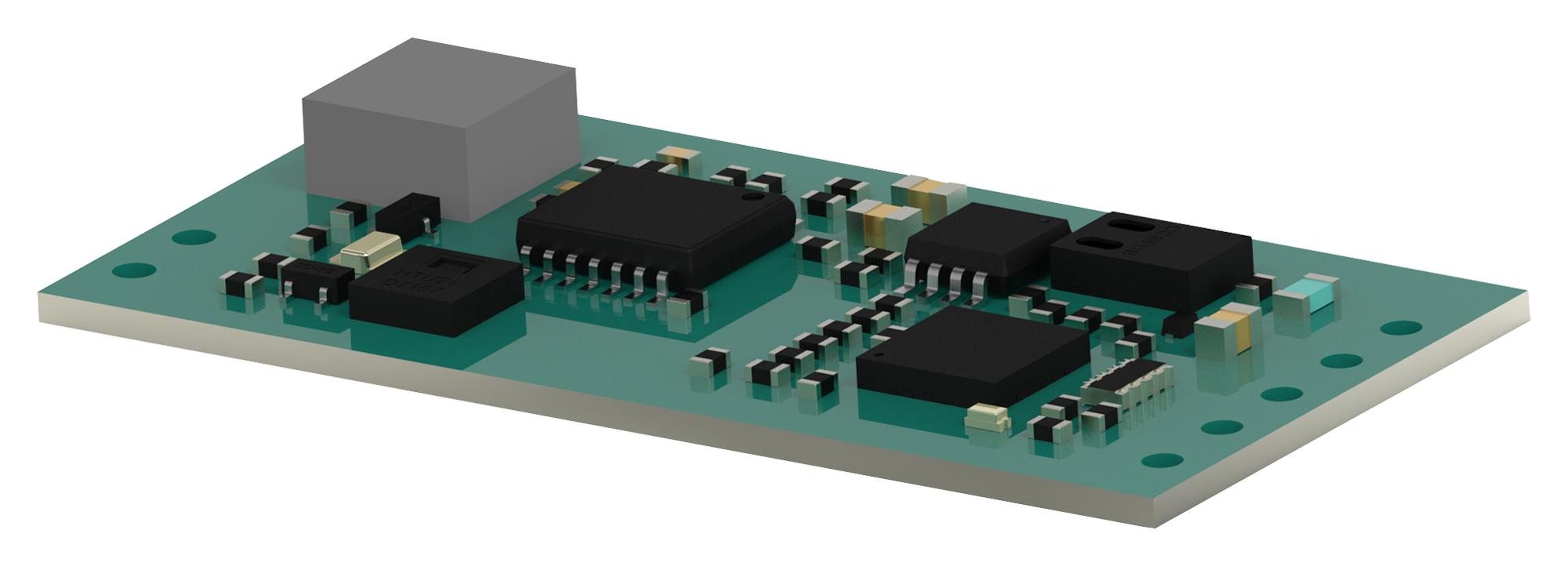

TE CONNECTIVITY 123142911 Sensor Module
The TE Connectivity AmbiMate MS4 Series Sensor Module offers an application-specific set of sensors mounted on a ready-to-attach PCB assembly. It provides quick integration into host products, enabling faster design development and time-to-market. This pre-engineered sensor solution includes core sensors for motion, light, temperature, and humidity, simplifying the development process for various applications. Optional sensors include VOC, CO2, and sound detection, making it ideal for indoor lighting, building automation, air quality monitoring, and energy management, with a compact, space-saving design.
TE CONNECTIVITY 123142911 Sensor Module Specifications:
- Temperature Range: -5°C to +50°C with 0.3°C accuracy, Storage Temperature: -40°C to 85°C
- Power Supply Voltage: 3.3V DC, RH Range: 5% to 95%, 2% accuracy
- Rel. Humidity Acquisition Rate: 1 second, Total System Current Draw: <10 mA
- VOC Detection Range: 0-1187 ppb, 400-8192 ppm, 60 sec rate, Response: <0.5 sec
- CO2 Detection Range: 400-8192 ppm, 60 sec rate, Response: <0.5 sec
- Ambient Light Level Measurement: 1 sec acquisition, Analog Audio Output Sensitivity: -25 to 19 dBV
- Audio Frequency Range: 100 Hz to 10 kHz, Operating Temperature: 5°C to 50°C
- Electrical Interface: 3.3V DC input, PC output at 100 kBaud, Interrupt event pin for motion and sound detection
- Mounting Options: Ceiling, wall, corner, enclosure allows air flow, use of Fresnel lens for PIR sensor
- Dimensions: Approx. 22 mm x 29 mm, with high-temp header for direct PCB soldering, multiple host attachment methods available
Buy the TE Connectivity Series MS4 Sensor Module: 123142911
Order the TE Connectivity MS4 Series Sensor Module now to enhance your environmental sensing solutions. Designed for easy integration, this compact module offers core sensors for motion, light, temperature, and humidity, with optional VOC, CO2, and sound detection. Its space-efficient design supports various attachment methods, making it ideal for indoor lighting, building automation, and energy management. Experience faster deployment, simplified design, and reliable performance by purchasing online today for your next project.
Get TE Connectivity MS4 sensor module today—built for reliable environmental monitoring and seamless integration into your products.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 123142911?
You can click on the BUY or RFQ button to purchase 123142911 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 123142911?
You can download the 123142911 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 123142911?
TE CONNECTIVITY
