TE CONNECTIVITY 123149244 Board-to-Board Receptacle
The product is a versatile and compact board-to-board receptacle designed for high-density applications in industrial controls, PLCs, servo drives, and building automation. Made from high-temperature resistant LCP plastic with phosphor bronze contacts, it features dual cantilever beams for reliable electrical contact. Available in various configurations, it supports surface-mount and through-hole mounting with multiple solder tail lengths, accommodating PCB thicknesses from 1.6mm to 2.4mm. Its space-saving design enhances functionality in tight spaces, ensuring efficient interconnections in demanding environments.
TE CONNECTIVITY 123149244 Board-to-Board Receptacle Specifications:
- Centerline: 200mm [0.079"]
- Dual beam contact with increased surface contact
- Surface-mount and through-hole compatible
- Solder tail lengths for PCB thicknesses 1.6mm to 2.4mm [0.063" to 0.094"]
- Operating Temperature: -40°C to 125°C
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Housing Material: High-temperature liquid crystal polymer (LCP), UL 94V0, black
- Contact Material: Phosphor bronze with gold plating options (30p", 15μ", 4μ")
- RoHS & REACH compliant, UL certified, VDE approval pending
- Available in tape and reel packaging, with top- and dual-entry configurations

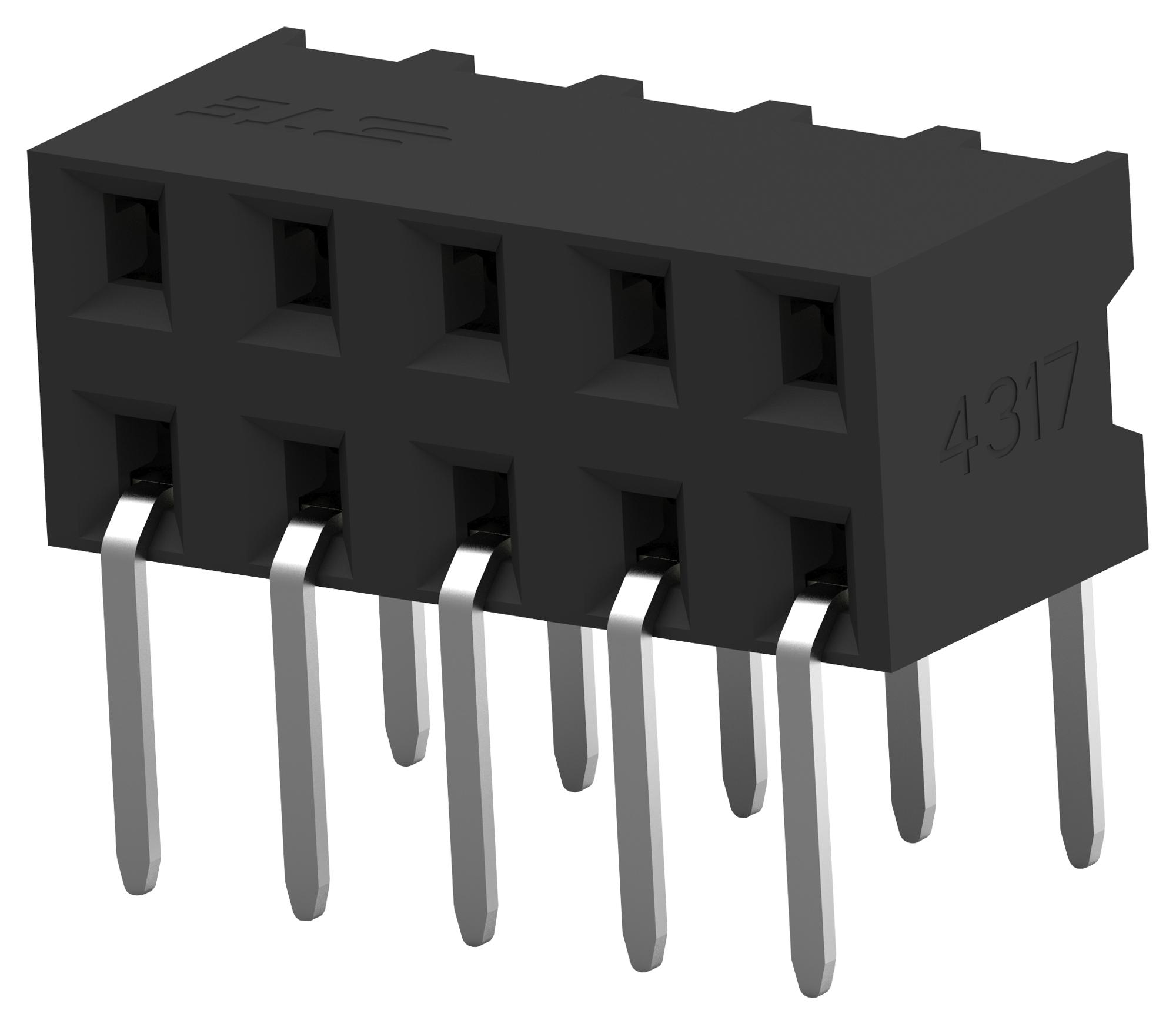

Buy the Buy TE Connectivity AMPMODU 2mm Board-to-Board Receptacle Part Number 123149244 Online
Purchase the TE Connectivity AMPMODU 2mm Board-to-Board Receptacle online and ensure your connection reliability in industrial controls, PLCs, and automation systems. Designed for high-temperature environments, it supports surface-mount and through-hole mounting, providing space-saving solutions with dual cantilever beam contacts for excellent electrical performance. Available in various configurations and packaging options, this receptacle is ideal for demanding applications requiring compact, reliable, and efficient interconnections in tight spaces, enhancing overall system performance.
Buy TE Connectivity AMPMODU 2mm Part Number 123149244 now and experience unmatched reliability and compact high-density interconnections in automation and industrial applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 123149244?
You can click on the BUY or RFQ button to purchase 123149244 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 123149244?
You can download the 123149244 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 123149244?
TE CONNECTIVITY
