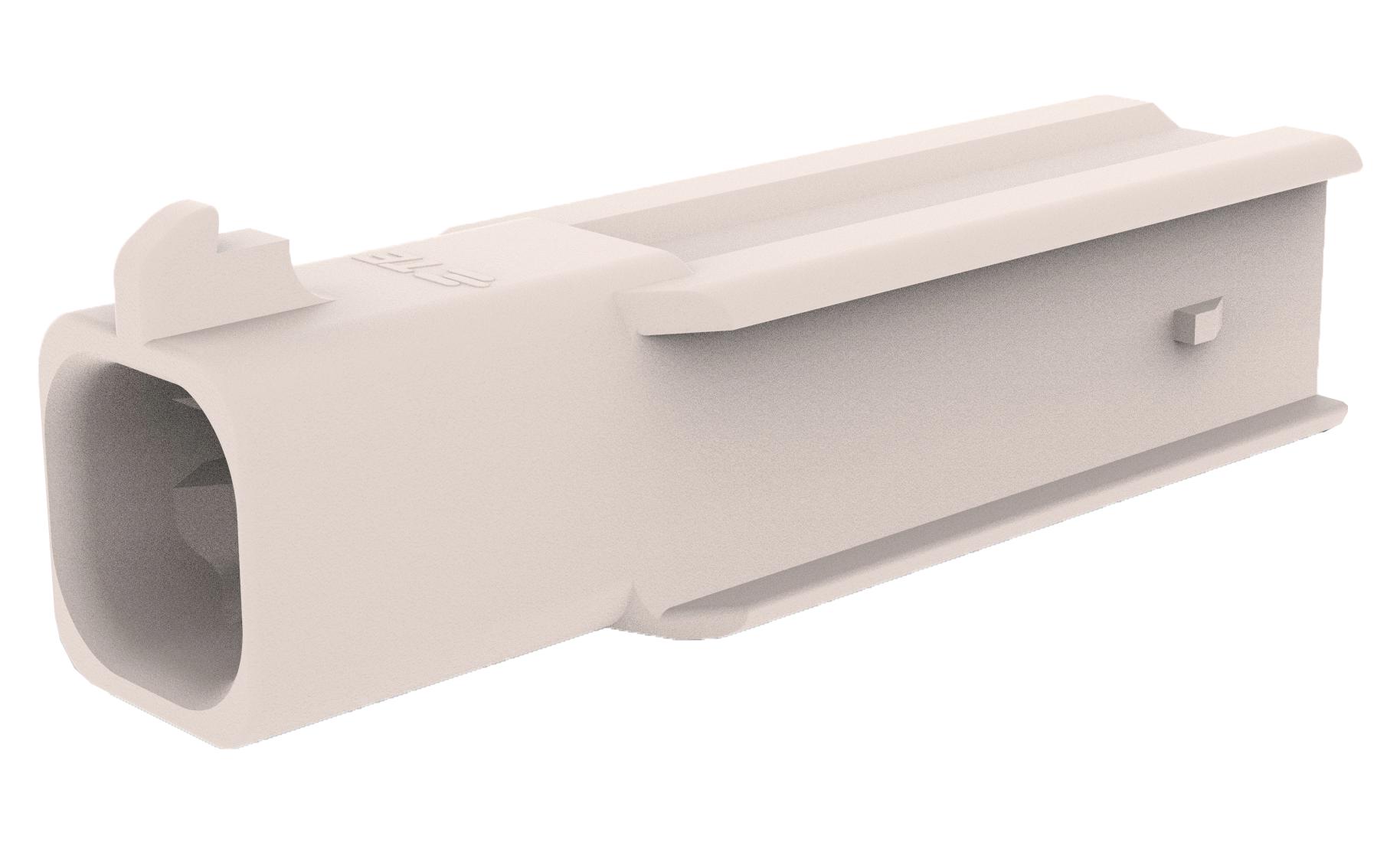

TE CONNECTIVITY 123457291 Rectangular Power Connector Housing
The TE Connectivity 1-2345729-1 is a robust rectangular power connector housing within the Power Versa-Lock 5.0 series. Designed for wire-to-wire connections, this housing offers a sealable design, making it suitable for applications requiring environmental protection. It is UL 94V-0 rated, ensuring compliance with flammability standards. The housing is constructed from PBT GF material and features a straight cable exit angle, making it versatile for various industrial and commercial applications. It is ideal for power distribution systems, industrial equipment, and automotive applications where reliable and secure power connections are essential.
TE CONNECTIVITY 123457291 Rectangular Power Connector Housing Specifications:
- Rectangular Power Connector Type: Housing
- Connector & Housing Type: Cap
- Connector System: Wire-to-Wire
- Number of Positions: 1
- Sealable: Yes
- Connector & Contact Terminates To: Wire & Cable
- Number of Columns: 1
- Number of Rows: 1
- Keying: A
- Seal Type: Interfacial Seal
- Number of Power Positions: 1
- Termination Method to Wire & Cable: Crimp
- Panel Mount Feature: Without
- Housing Color: Natural
- Housing Material: PBT GF
- Cable Exit Angle: Straight
- Operating Temperature Range: -30 – 140 °C
- Circuit Application: Power
- Circuit Identification Feature: With
- UL Flammability Rating: UL 94V-0
- Glow Wire Rating: Standard Part - Not Glow Wire
- Agency/Standard Number: E28476
- Agency/Standard: UL
- Packaging Method: Carton
- For Use With: Plug Housing, Seals, Tab Contact
- EU RoHS Directive 2011/65/EU: Compliant
- EU ELV Directive 2000/53/EC: Compliant
- China RoHS 2 Directive MIIT Order No 32, 2016: No Restricted Materials Above Threshold
- EU REACH Regulation (EC) No. 1907/2006: Current ECHA Candidate List: JAN 2021
- Candidate List Declared Against: JUN 2020 (209)
Buy the 1-2345729-1 TE CONNECTIVITY Rectangular Power Connector Housing | myMectronic
Purchase the TE Connectivity 1-2345729-1 Rectangular Power Connector Housing securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 123457291?
You can click on the BUY or RFQ button to purchase 123457291 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 123457291?
You can download the 123457291 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 123457291?
TE CONNECTIVITY
