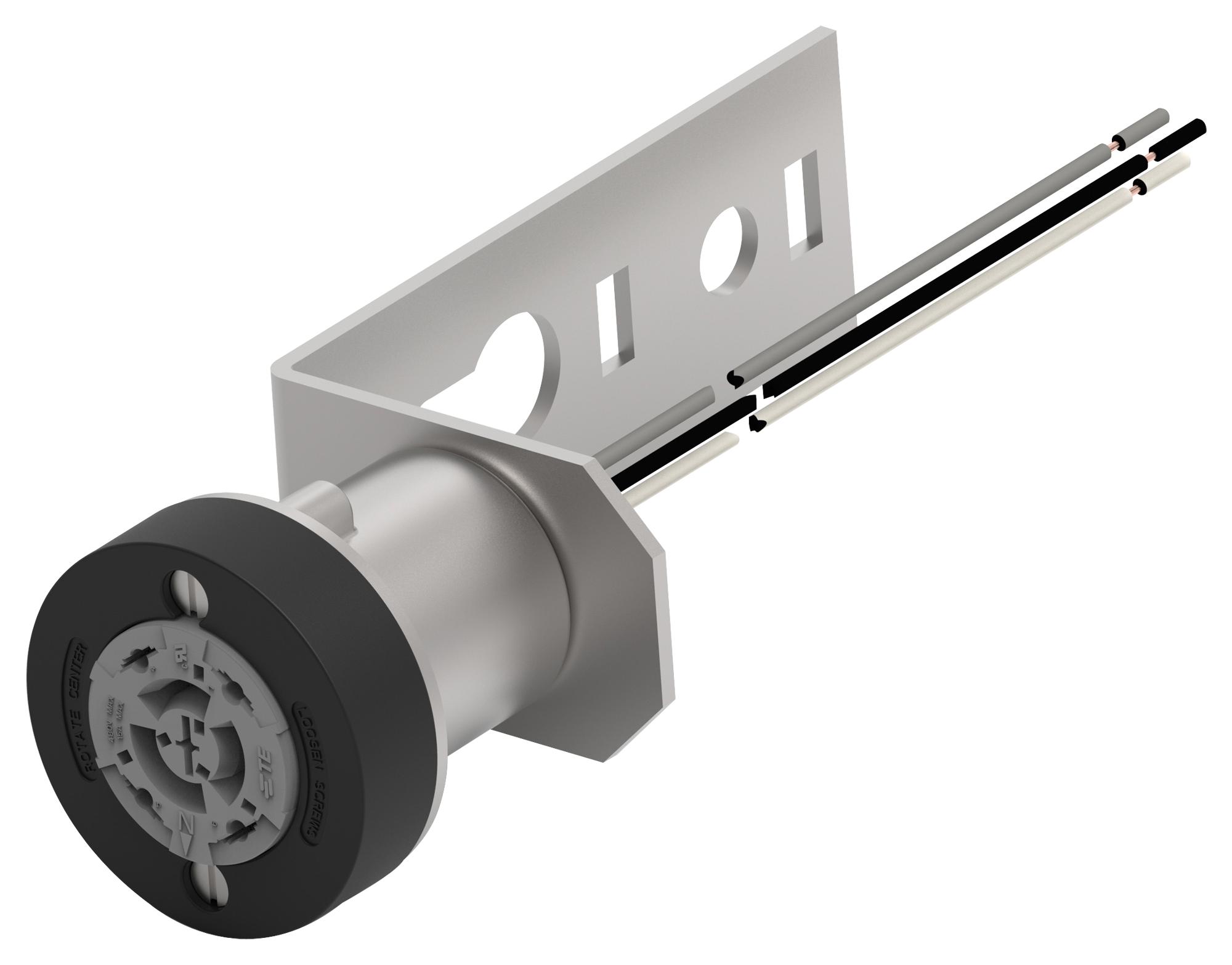

TE CONNECTIVITY 123639291 Bracket Mount Receptacle Assembly
TE Connectivity’s LUMAWISE Endurance N Bracket Mount Receptacle Assemblies offer a robust solution for remote mounting discrete and network lighting controls. These assemblies are ideal for outdoor street and area lighting luminaires, simplifying conversion and maintaining the aesthetics of decorative lighting fixtures. They reduce field installation time and costs, provide a reliable IP66 seal rating, and simplify the positioning of remote lighting controls. The assemblies are ANSI C136.10 and ANSI C136.41 compliant and shipped fully assembled with an integral gasket. Available with standard or rotatable receptacles, they are suitable for roadway, street, decorative, commercial, and area lighting applications.
TE CONNECTIVITY 123639291 Bracket Mount Receptacle Assembly Specifications:
- Material: Aluminum
- Bracket Width: 2.0 inch
- Bracket Depth: 3.0 inch
- Bracket Height: 5-1/2 inch
- Housing Diameter: 2.56 inch
- Housing Height: 2.63 inch
- Nipple: 1/2” - 14NPAL
- Wire Rating: 14 AWG and 18 AWG, 105° C
- Current Rating: 15 AMPS
- Voltage Range: 120 - 480VAC
- Standards: ANSI C136.10 & ANSI C136.41
- Position: 3
Buy the 1-2363929-1 TE CONNECTIVITY Bracket Mount Receptacle Assembly | myMectronic
Purchase the TE Connectivity 1-2363929-1 LUMAWISE N Bracket Mount Receptacle Assembly securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 123639291?
You can click on the BUY or RFQ button to purchase 123639291 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 123639291?
You can download the 123639291 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 123639291?
TE CONNECTIVITY
