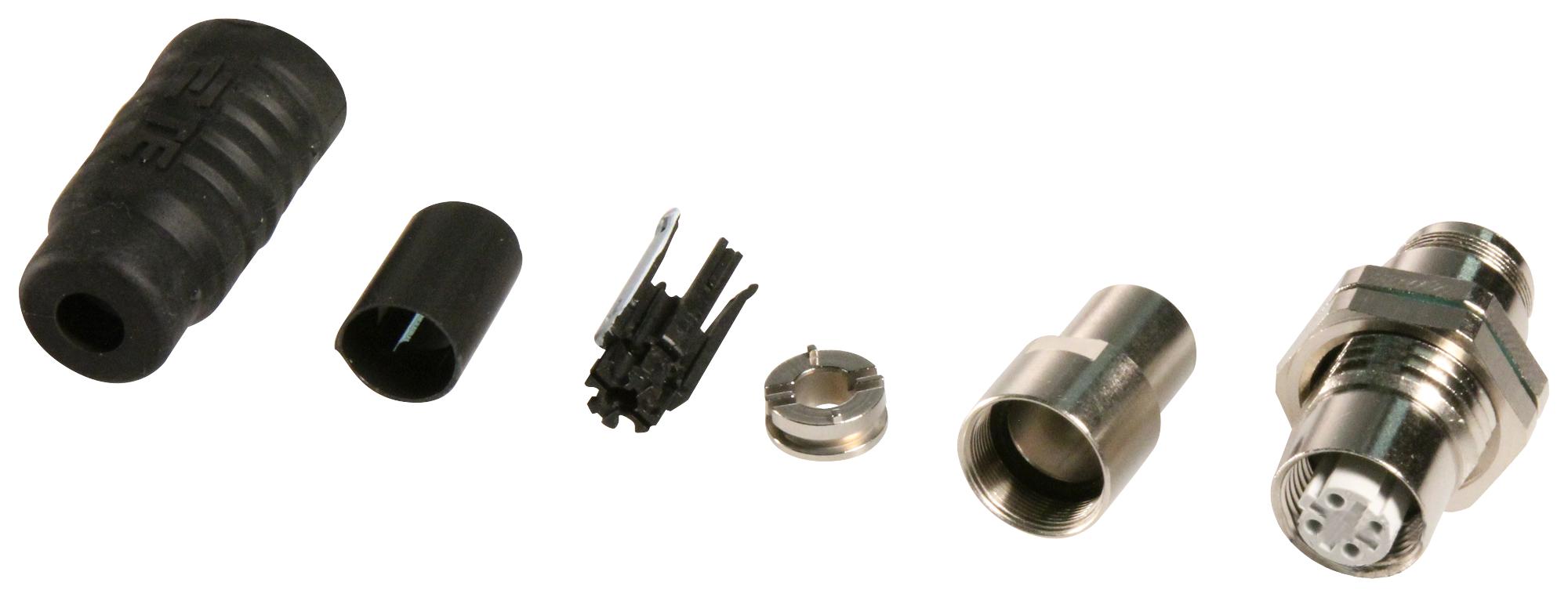

TE CONNECTIVITY 128234467 Industrial M12 Connector
The M12 series connectors are highly reliable, compact industrial connectors designed for field assembly with 360° EMI/RFI shielding. They feature torsion and vibration-proof cable strain relief via crimp flange technology and machined crimp contacts, ensuring secure and durable connections. These pre-assembled connectors support automatic wave soldering, are IP67 rated for excellent environmental protection, and accommodate up to 10 Gbit/s data transmission with >200 mating cycles. They are suitable for industrial automation, sensor interfaces, and harsh environment applications, meeting IEC and EN standards with durable nickel-plated Cu alloy housing and gold-plated contacts.
TE CONNECTIVITY 128234467 Industrial M12 Connector Specifications:
- Housing Material: Copper alloy, nickel plated
- Contact Material: Copper alloy, gold plated
- Insulator & Contact Holder: Thermoplastic
- Sealing: Elastomer
- Environmental Rating: IP67
- Temperature Range: -20°C to 85°C (-30°C with boot)
- Voltage Rating: Up to 50 VDC
- Contact Resistance: Less than 5 milliohms
- Insulation Resistance: Greater than 100 Megaohms
- Mating Cycles: Over 200
- Data Transmission: Up to 10 Gbit/s
- Standards: IEC 11801:2002, EN 61373 Class 1, EN 45545-2
- Compliance: NFF 16101, 16102, UL Listed
Buy the TE Connectivity 128234467 – Reliable Industrial M12 Connectors for Automation
Purchase TE Connectivity M12 connectors online now to ensure your automation projects benefit from reliable, high-quality connections. These connectors feature EMI/RFI shielding, IP67 protection, and support rapid data transfer up to 10 Gbit/s, making them ideal for sensor interfaces, industrial automation, and harsh environments. With over 200 mating cycles, durable construction, and compliance with international standards, order today for fast delivery and superior performance in demanding industrial applications.
Get TE Connectivity M12 connectors today—built for precision, durability, and high-speed industrial data transmission.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 128234467?
You can click on the BUY or RFQ button to purchase 128234467 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 128234467?
You can download the 128234467 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 128234467?
TE CONNECTIVITY
