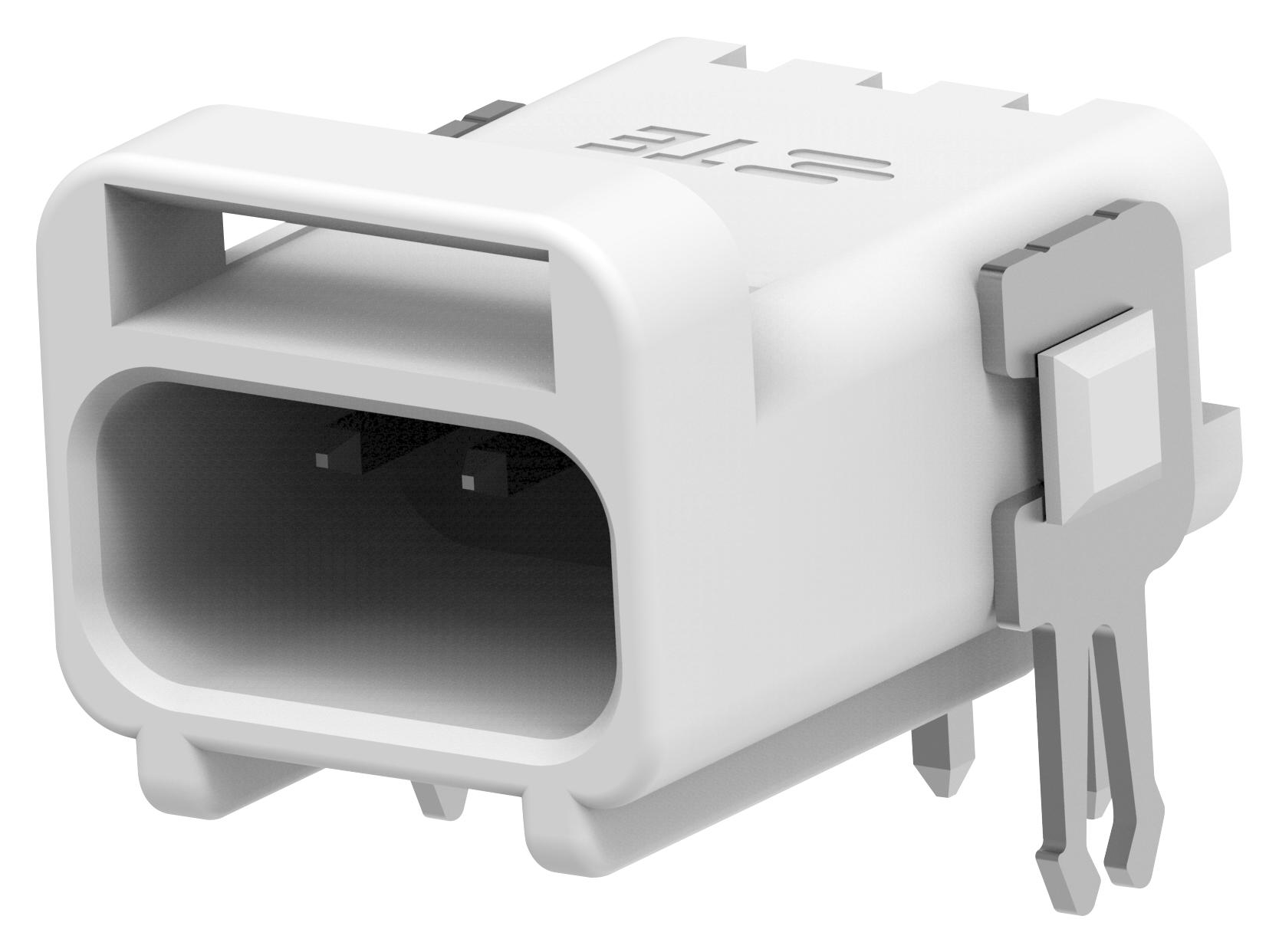

TE CONNECTIVITY 128342381 miniature waterproof connector
TE Connectivity's SlimSeal connector miniature series is a dust- and waterproof, IP67-rated connector ideal for harsh environments like outdoor lighting and high humidity areas. This compact, space-saving connector supports wire-to-board and wire-to-wire configurations, featuring a robust press-to-release latch for secure connection. It includes pre-assembled rubber seals for quick installation and long-lasting protection against dust and water ingress. Operating from -40°C to +105°C, it handles voltages up to 250VAC for wire-to-board and 400VAC for wire-to-wire, with optional color coding for easy identification and design flexibility.
TE CONNECTIVITY 128342381 miniature waterproof connector Specifications:
- Ingress Protection: IP67
- Operating Temperature Range: -40°C to +105°C
- Voltage Rating: up to 250VAC wire-to-board, 400VAC wire-to-wire
- Current Rating: 5A Max for wire-to-board, 3A Max for wire-to-wire
- Housing Material: LCP, UL 94 V-0
- Contact Material: Copper alloy with tin plating
- Seal Material: Rubber
- Connector Configurations: Two and three positions
- Colors Available: Natural, Black, Red, White
- Durability: 30 cycles
- Approval: UL1977
Buy the Buy TE Connectivity SlimSeal Connector Part Number 128342381 Online
Enhance your project reliability with TE Connectivity's SlimSeal waterproof connector, offering IP67 protection for outdoor lighting, industrial, and high humidity applications. This space-efficient, durable connector features a secure press-to-release latch and pre-assembled rubber seals for easy installation. Operating from -40°C to +105°C, it supports voltages up to 250VAC for wire-to-board and 400VAC for wire-to-wire configurations. Available in multiple colors, it ensures flexible design and quick assembly, ideal for harsh environments requiring waterproof and dustproof performance.
Order your TE Connectivity SlimSeal connector Part Number 128342381 today and secure your projects with a reliable, IP67 waterproof solution for harsh environments.
