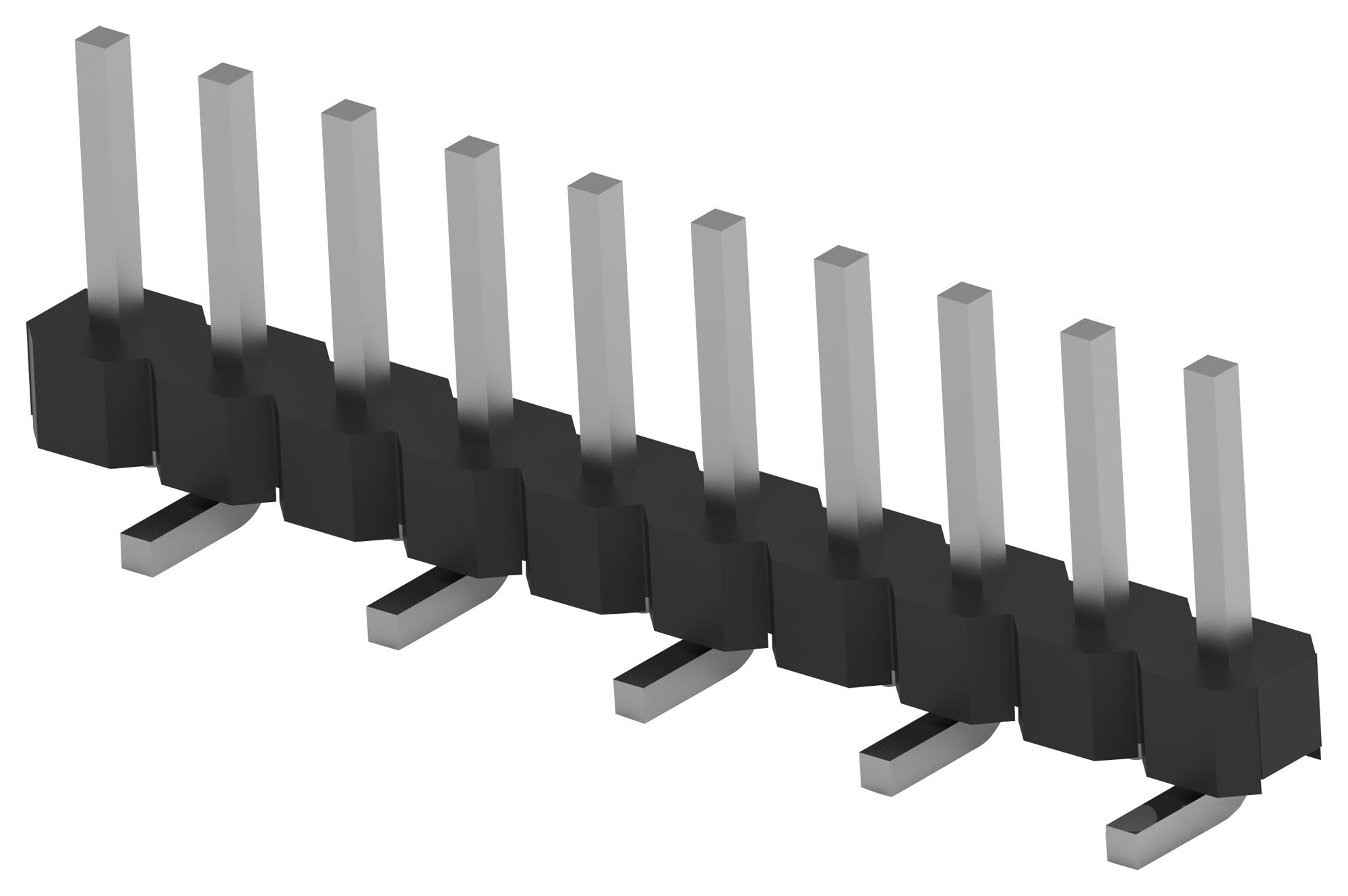

TE CONNECTIVITY 128421020 Industrial Breakaway Header
The TE Connectivity AMPMODU 2mm breakaway header is a space-efficient, reliable connector suitable for PCB assembly in industrial automation and control applications. Featuring a 2.00mm centerline, it supports surface mounting, through-hole reflow, and traditional through-hole methods. With current ratings up to 2A, operating temperature from -40°C to 125°C, and Plating options including gold and tin, this high-quality brass contact connector is ideal for PLCs, servo drives, and instrumentation. Its compact design saves space and offers excellent environmental and electrical performance.
TE CONNECTIVITY 128421020 Industrial Breakaway Header Specifications:
- Centerline: 2.00mm [0.079]
- Contact Dimension: 0.50mm [0.02"] square pins
- Number of Positions: 2-25 per row, available in single and double rows
- PCB Thickness: 1.6mm to 2.4mm [0.063" to 0.094"]
- Current Rating: 2A max.
- Operating Voltage: 125VDC
- Dielectric Withstanding Voltage: 650VAC
- Operating Temperature: -40°C to 125°C
- Contact Material: Brass
- Plating: 0.76um [30p"] Gold, 0.38um [15u"] Gold, Tin
- Housing Material: High Temperature Plastic, UL 94VO, Black
- Reflow Solder Temperature: Capable up to 260°C
- Environmental Compliance: RoHS & REACH
- Vibration Resistance: No electrical discontinuity greater than UL certified
- Product options include tape & reel, tube, or box packaging to suit various handling systems.
Buy the TE Series AMPMODU 2mm Breakaway Header: 128421020
Enhance your PCB assembly with the TE Connectivity AMPMODU 2mm breakaway header, offering space-saving design, high electrical performance, and flexible mounting options ideal for industrial automation, PLC, servo drives, and instrumentation. Easy to automate with surface mount or through-hole processes, this connector ensures reliable connections and long-term durability. Available in various packaging styles including tape & reel, tube, and box. Upgrade your electronics with this high-quality connector designed for demanding industrial environments, ensuring seamless operation and space efficiency for your control and automation systems.
Buy TE Connectivity AMPMODU 2mm breakaway header now and experience reliable, space-saving PCB connections for industrial automation and control solutions.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 128421020?
You can click on the BUY or RFQ button to purchase 128421020 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 128421020?
You can download the 128421020 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 128421020?
TE CONNECTIVITY
