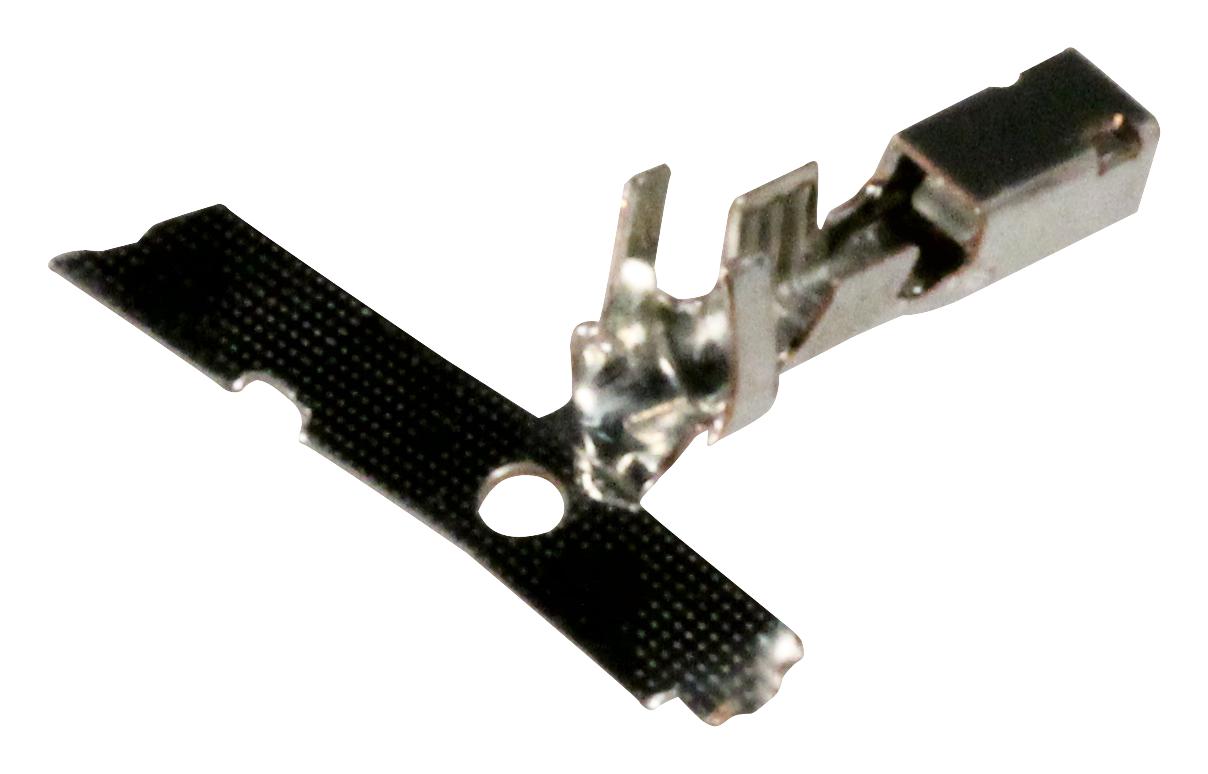

TE CONNECTIVITY 13763471 6.0 mm Wire-to-Board Connector
TE Connectivity’s GRACE INERTIA connector provides a robust and compact solution for wire-to-board connections. Designed with an error-proofing, locking mechanism, it prevents contact between receptacle and header contacts when incorrect mating is attempted. The inertia force assists in mating, preventing half-mating, and the 6.0 mm pitch delivers medium power connections in a compact design. Applications include appliances, air conditioners, refrigerators, washing machines, industrial equipment, control cabinets, industrial machinery, and HVAC systems.
TE CONNECTIVITY 13763471 6.0 mm Wire-to-Board Connector Specifications:
- Voltage Rating: 300 VAC or VDC
- Current Rating: Up to 10 amps maximum
- Centerline Pitch: 6.0 mm (.236 in)
- Wire Gauge: 24-16 AWG [.22-1.25 mm]
- Housing Material: 6/6 nylon (glass filled) rated UL 94 V-0
- Contact Material: Tin plated copper alloy
- Operating Temperature: -40°C to 105°C
- Product Specification: 108-106193
- Application Specification: 114-5292
- Mating Protection: Yes
- Locking Design: Inertia lock
- Latching: Positive latching
- Keying Function: Yes
Buy the 1376347-1 TE CONNECTIVITY 6.0 mm Wire-to-Board Connector | myMectronic
Securely purchase the TE Connectivity 1376347-1 connector and ensure reliable connections for your industrial applications.
