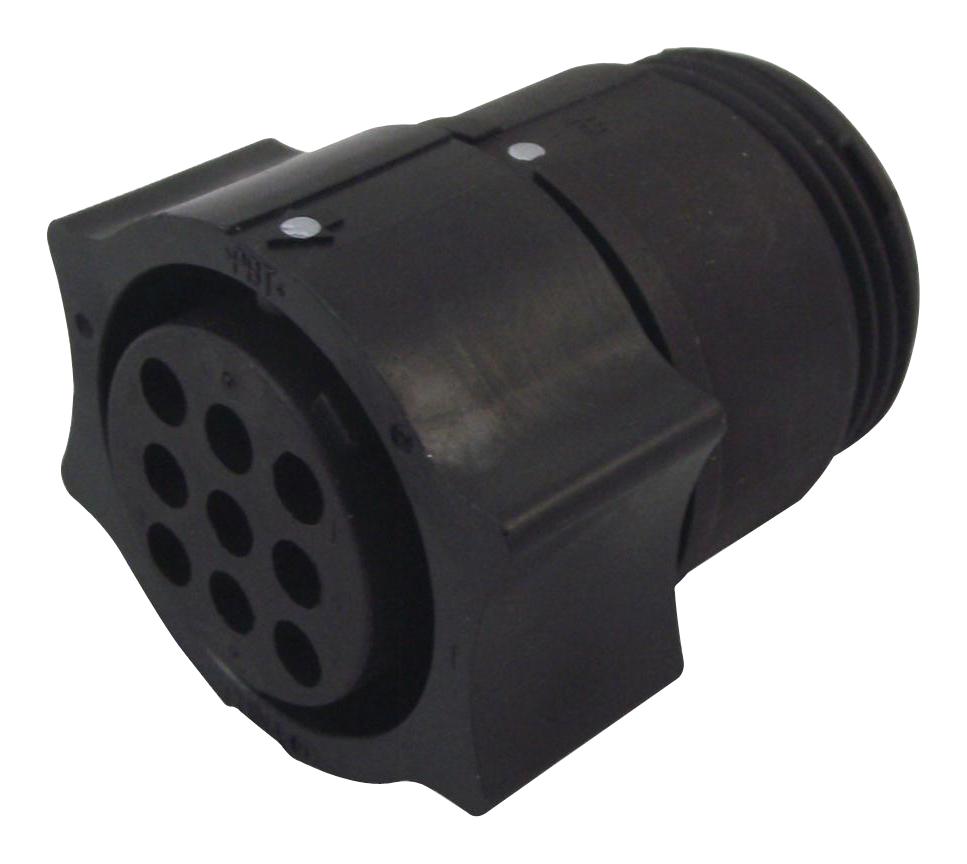

TE CONNECTIVITY 14458191 Power Connector Housing
The AMP CPC circular power connector housing is designed for reliable wire-to-wire connections operating at 250 VDC. It supports 30-18 AWG wire sizes with insulation diameters ranging from .0509 to .823 mm. Featuring a 6-position layout, it offers excellent sealing with a wire entry seal and a durable thermoplastic shell. Suitable for power applications requiring secure and sealed connections, it complies with industry standards including UL Flammability Rating UL 94V-0. This connector housing is ideal for industrial and electronic applications demanding high voltage, robust sealing, and secure wire terminations.
TE CONNECTIVITY 14458191 Power Connector Housing Specifications:
- Operating Voltage: 250 VDC
- Wire Size: 30-18 AWG (.0509 — .823 mm insulation diameter)
- Number of Positions: 6
- Connector System: Wire-to-Wire
- Seal Type: Wire Entry Seal
- Housing Material: Thermoplastic
- Housing Color: Black
- Shell Size: 11
- Temperature Range: -55°C to +105°C
- UL Flammability Rating: UL 94V-0
- Sealable: Yes
- Max Contact Current: 5.9A
- Termination: Crimp
- Housing Dimensions: Accepts wire insulation diameter of 0.035 to 0.059 inches
- Compliance: EU RoHS, REACH compliance
- Packaging: Bag of 100 units
Buy the AMP Series CPC Power Connector Housing: 14458191
Purchase the AMP CPC power connector housing online today and experience a dependable solution for your power circuit needs. Ideal for industrial, automation, and electronic applications, this 6-position wire-to-wire connector supports up to 250 VDC and accommodates 30-18 AWG wires with insulation diameters from .0509 to .823 mm. Made of durable thermoplastic, it offers a reliable seal with wire entry seals, ensuring safety and performance. Order now for quick delivery and trust the quality for your electrical connections.
Order your AMP Series CPC Power Connector Housing today and ensure reliable, sealed power connections for your industrial projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 14458191?
You can click on the BUY or RFQ button to purchase 14458191 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 14458191?
You can download the 14458191 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 14458191?
TE CONNECTIVITY
