TE CONNECTIVITY 14620423 Signal Relay
The IM - C Relay is a compact, high-performance signal relay designed for telecommunications and industrial control applications. It features bifurcated contacts, low profile dimensions (5.65mm height), and a slim 10x6mm footprint, ensuring efficient space utilization on circuit boards. The relay supports a coil voltage range from 1.5 to 24VDC, with ratings up to 4A current and 250VAC switching capacity. Its robust construction includes high dielectric strength, hermetic sealing with SF6 gas for enhanced dielectric performance, and high mechanical shock resistance, making it suitable for demanding environments such as medical, measurement, and test equipment.
TE CONNECTIVITY 14620423 Signal Relay Specifications:
- Dimensions: 10x6mm footprint, height 5.65mm
- Coil voltage range: 1.5 to 24VDC
- Contact arrangement: 1 Form C (CO)
- Contact Material: PdRu, Au covered
- Rated current: 4A
- Switching voltage: up to 250VAC, 220VDC
- Mechanical endurance: min. 10^7 operations
- Dielectric strength: 750V between open contacts, 1800V between contact and coil
- Ambient temperature: -40°C to +85°C
- Vibration resistance: 20g, 10-500Hz
- Shock resistance: 50g, half sinus, 11ms
- hermetic sealing with SF6 gas for dielectric enhancement
- IP67 degree of protection, immersion cleanable

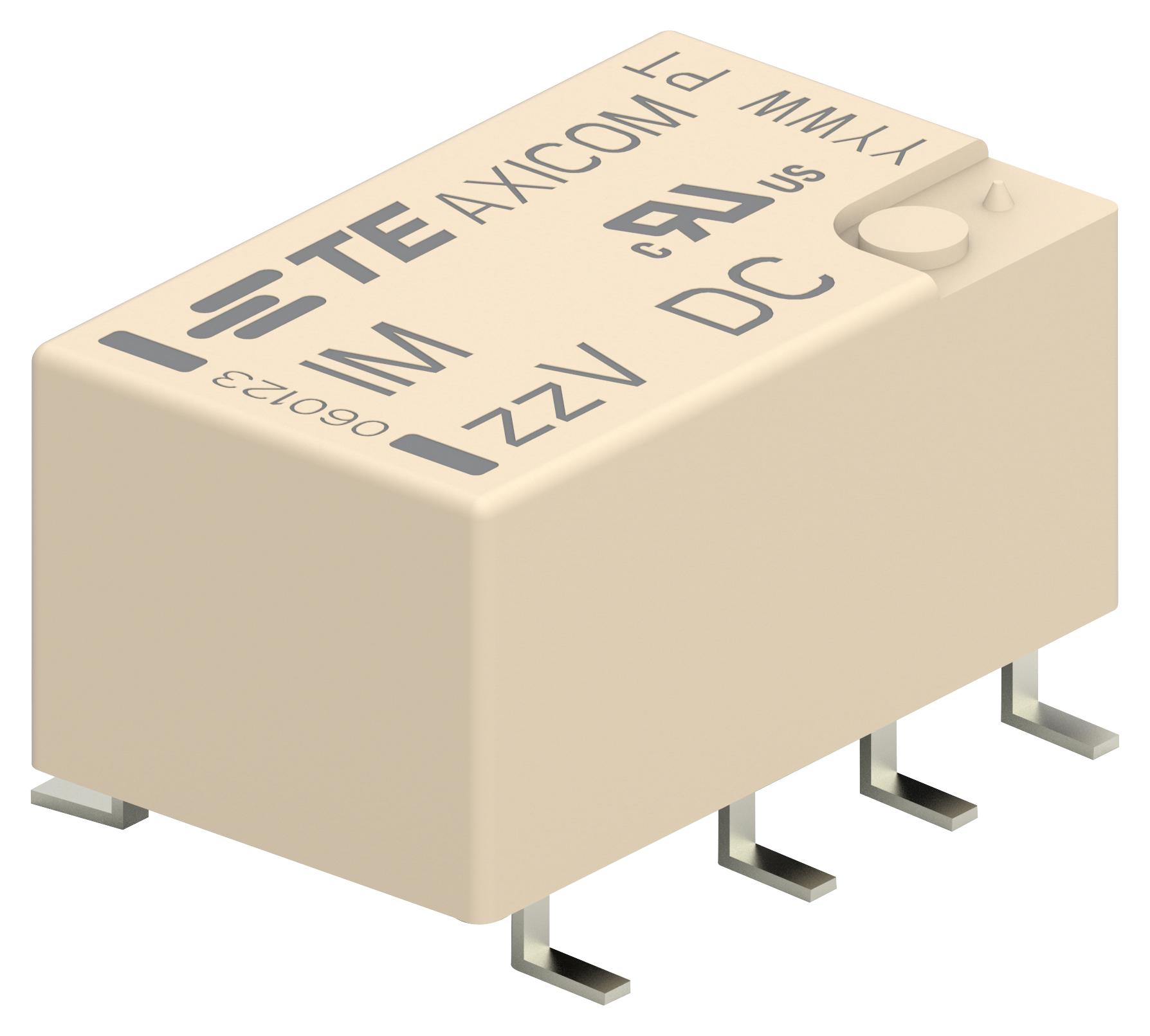

Buy the Buy AXICOM Signal Relays Part Number 14620423 Online
Purchase the AXICOM signal relay 14620423 online today to benefit from its compact size, high switching capacity, and reliable hermetic sealing. Ideal for telecommunication, medical, measurement, and control equipment, this relay offers excellent resistance to shock, vibration, and harsh environments. Its robust construction ensures long service life with up to 10 million operations, making it a trusted component for demanding applications. Order now and enhance your system’s performance with this high-quality, space-efficient relay designed for reliable switching and safety.
Buy AXICOM 14620423 now and experience unmatched durability, high dielectric strength, and space-saving design for telecommunication and industrial systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 14620423?
You can click on the BUY or RFQ button to purchase 14620423 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 14620423?
You can download the 14620423 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 14620423?
TE CONNECTIVITY
