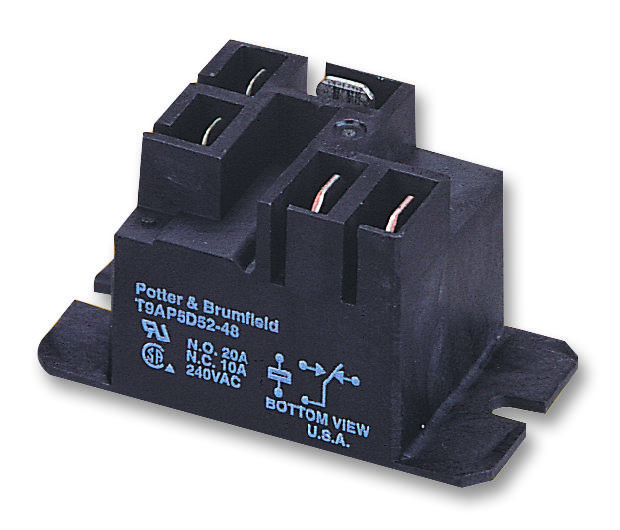

TE CONNECTIVITY 16493412 Power Relay
This high power PCB relay features AC coil operation with a flange mount, designed for reliable switching of resistive loads up to 250VAC at 20A or 10A. It incorporates AgSnOInO contact material for durability, and is approved by UL, CSA, and VDE standards. Suitable for HVAC, power supplies, and control applications, it offers quick connect terminals, dielectric strength of 2.5kV between contacts and coil, and operates in a temperature range of -40°C to 70°C. Its compact design measures approximately 187 x 20.1 mm and weighs 33 grams, ensuring easy integration into various circuits.
TE CONNECTIVITY 16493412 Power Relay Specifications:
- Contact Arrangement: 1 NO, 1 NC, 1 CO
- Rated Voltage: 250VAC
- Max Switching Voltage: 250VAC
- Rated Current: 20A / 10A
- Breaking Capacity: 5000VA
- Contact Material: AgSnOInO
- Initial Contact Resistance: 75 mΩ at 1A, SVDC or 12VAC
- Operate/Release Time: Max. 15/15 ms
- Coil Voltage Range: 12-240VAC
- Coil Power: 1.6VA (A code), 1.2VA (E code)
- Coil Insulation: Class F UL
- Dielectric Strength between contacts: 1500V
- Between contact and coil: 2500V
- Ambient Temperature: -40°C to 70°C
- Vibration Resistance: 1.5mm at 10-55Hz
- Shock Resistance (Functional): 10g
- Terminal Type: Quick connect
- Dimensions: 187 x 20.1 mm
- Weight: 33g
Buy the Buy TE Connectivity Power Relay Part Number 16493412 Online
Purchase the TE Connectivity Power Relay 16493412 online today to ensure reliable switching capabilities for your HVAC, power supply, and control systems. This high power PCB relay features AC coil operation, flange mount design, and is UL/VDE approved. With a contact capacity of 20A/10A at 250VAC and quick connect terminals, it offers ease of installation and exceptional durability. The relay operates efficiently in temperatures from -40°C to 70°C, making it an ideal choice for various industrial and commercial applications. Order now for seamless integration and dependable performance.
Get TE Connectivity 16493412 today—built for precision, high power switching, and long-lasting durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 16493412?
You can click on the BUY or RFQ button to purchase 16493412 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 16493412?
You can download the 16493412 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 16493412?
TE CONNECTIVITY
