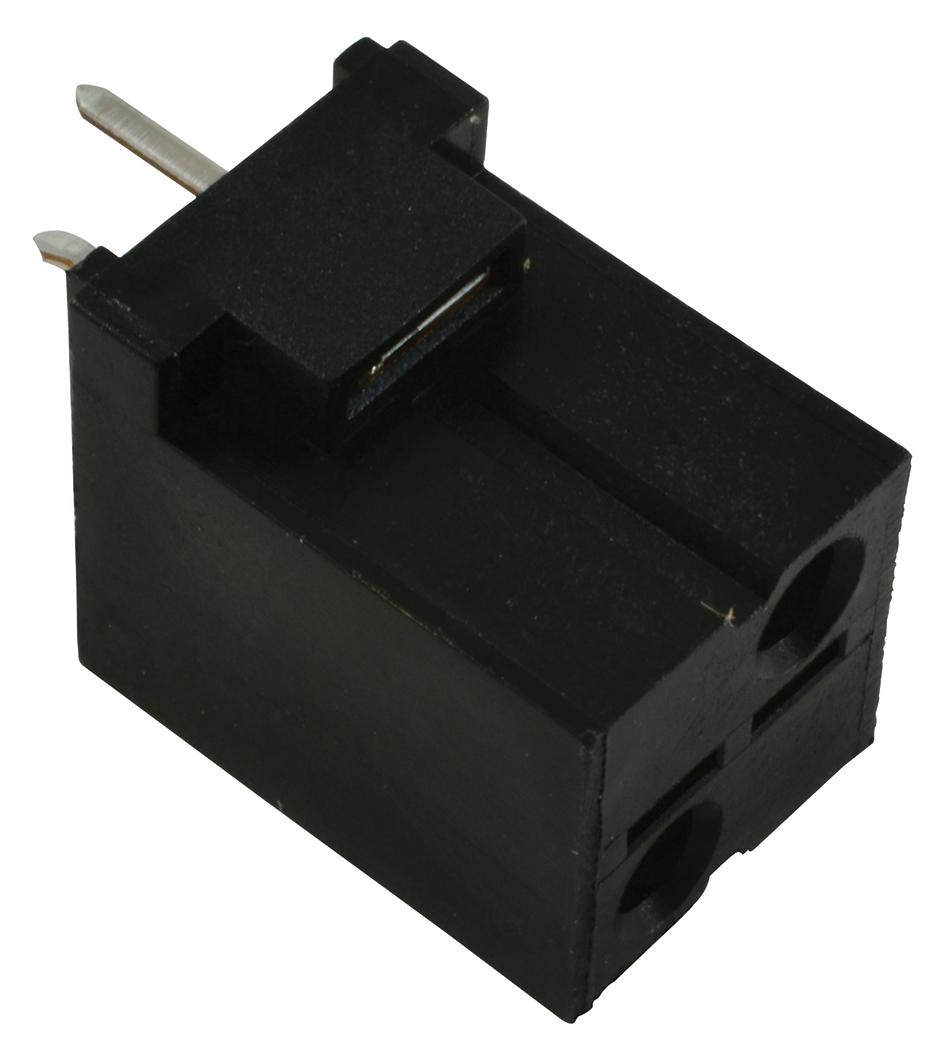

TE CONNECTIVITY 18119571 Screwless Wire Connector
The vertical and in-line screwless wire connectors by TE Connectivity offer a reliable and easy-to-use solution for PCB wiring. Compatible with wave solder processes, they allow stripping and inserting solid conductors without special tools. The connectors provide secure, permanent connections with the convenience of removal using extraction tools. Suitable for applications such as lighting, HVAC controls, security systems, and consumer electronics, they feature durable materials, UL 94V-0 rated housing, and are rated for 2 A current and 2200 VAC dielectric withstand voltage. Different configurations include 2, 3, 4, and 6 position models, with excellent retention and mechanical durability.
TE CONNECTIVITY 18119571 Screwless Wire Connector Specifications:
- Housing: UL 94V-0 rated PBT
- Contact Material: Pre-tin over nickel plate copper alloy
- Operating Temperature: -30°C to 105°C
- Rated Current: 2 A
- Dielectric Withstanding Voltage: 2200 VAC
- Voltage Rating: 600 VAC
- Mechanical Retention: 5 Ib. [22.25 N]
- Durability: 5 cycles
- Pitch: 138 mm (2, 4, 6 position staggered), 8.2 mm (in-line 2 & 3 positions)
- Connector Types: Vertical and in-line screwless wire connectors
- Connection Type: Wire insertion without tooling, fits industry standard 18-16 AWG solid wire
- Standards: UL 1977
- Compatible with wave soldering processes, with secondary board locks for additional retention
- Part Numbers include 18119571, 18119572, 18113984, 14444, 18113981
Buy the Buy TE Connectivity Vertical Screwless Wire Connectors Part Number 18119571 Online
Secure your electronic projects with TE Connectivity screwless wire connectors. Designed for PCB applications, these connectors simplify wiring by eliminating the need for hand soldering or fixtures. Compatible with industry-standard wire sizes, they provide reliable, tool-free insertion of solid conductors, ensuring durable connections for lighting, HVAC, security, and consumer electronics. Their robust materials and UL certifications guarantee safety and longevity, making them ideal for OEM and repair applications. Order now online to benefit from fast delivery and trusted quality in every connection.
Order your TE Connectivity Series18119571 screwless wire connector today and ensure secure, easy wiring for your PCB assemblies with high-quality retention.
