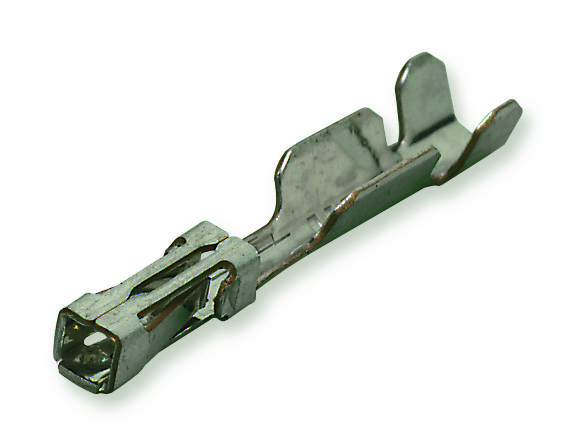

TE CONNECTIVITY 18275872 signal connector
The AMP Dynamic Series connectors by Tyco Electronics are versatile, high-quality connectors designed for signal and power applications in industrial automation, control systems, PCs, servodrivers, and inverters. They feature various mounting options including panel mount, free hanging, horizontal, and vertical types, with robust housings and reliable gold or tin-plated contacts. The series supports a wide wire range up to 18 AWG, ensuring secure connections. These connectors meet RoHS compliance, ensuring environmentally friendly manufacturing and usage. They are suitable for compact, efficient electronic installations requiring precise, durable connections.
TE CONNECTIVITY 18275872 signal connector Specifications:
- Voltage Rating: 125 VAC for 2mm, 250 VAC for 2.5mm and 3.5mm centerline types
- Current Rating: 3A (AWG 22 wire), 5A (AWG 18 wire)
- Contact Resistance: Max. 20mΩ
- Dielectric Withstanding Voltage: 700V for 2mm, 1100V for 2.5mm and 3.5mm types
- Temperature Range: -55°C to +105°C
- Material: Copper alloy contacts with gold or tin plating, housing made of glass-filled polyester (UL 94V-0)
- Wire Range: 30 to 18 AWG (0.05 mm² to 2.2 mm insulation diameter)
- Dimensions vary by series but support compact, space-efficient designs
- RoHS compliant, suitable for environmentally conscious applications
- Includes both strip and loose piece contacts, with hand and automation tooling compatibility
Buy the Tyco Electronics R-18275872 – Reliable Signal and Power Connectors for Industrial Applications
Enhance your electronic setup with Tyco Electronics signal connectors designed for industrial automation and power applications. These high-quality connectors feature diverse mounting options, robust construction, and RoHS compliance, ensuring environmentally friendly operation. With support for wide wire ranges up to 18 AWG, they guarantee secure, reliable connections in compact, space-saving designs. Perfect for control panels, automation systems, and factory equipment, these connectors are easy to install and maintain, providing long-lasting performance in demanding environments. Buy online now for precision and durability.
Get Tyco Electronics R-18275872 today—built for precision and long-lasting durability in industrial, automation, and electronic systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 18275872?
You can click on the BUY or RFQ button to purchase 18275872 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 18275872?
You can download the 18275872 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 18275872?
TE CONNECTIVITY
