TE CONNECTIVITY 19717862 Power Connector
The Power Triple Lock connector system by TE Connectivity offers high performance and a reliable connection for power and signal applications. Designed with a locking mechanism that activates three ways—cap latch, connector position assurance, and terminal position assurance—this system ensures secure and accurate connections. It is available in various material options supporting standard 105°C, high temperature 150°C, and glow wire applications. Suitable for appliances, industrial machinery, and electrical systems, it accommodates wire sizes from 12 to 22 AWG and up to 20 A current handling capacity, ensuring dependable operation across diverse environments.
TE CONNECTIVITY 19717862 Power Connector Specifications:
- Voltage Rating: 600 VAC/VDC
- Current Rating: Up to 20 A
- Position sizes: Single row 2-5, Dual row 2x3 to 2x6, Matrix 3x3 to 3x5
- Centerline spacing: 6.0 mm
- Row-to-row spacing: 8.1 mm
- Operating temperature: -55°C to 105°C (standard), -55°C to 150°C (high temp)
- Housing materials: UL 94V-0 rated PBT, Nylon
- Contacts: Tin-plated copper alloy
- Wire sizes accommodated: 12 AWG to 22 AWG
- Certifications: UL Recognized, VDE IEC 61984

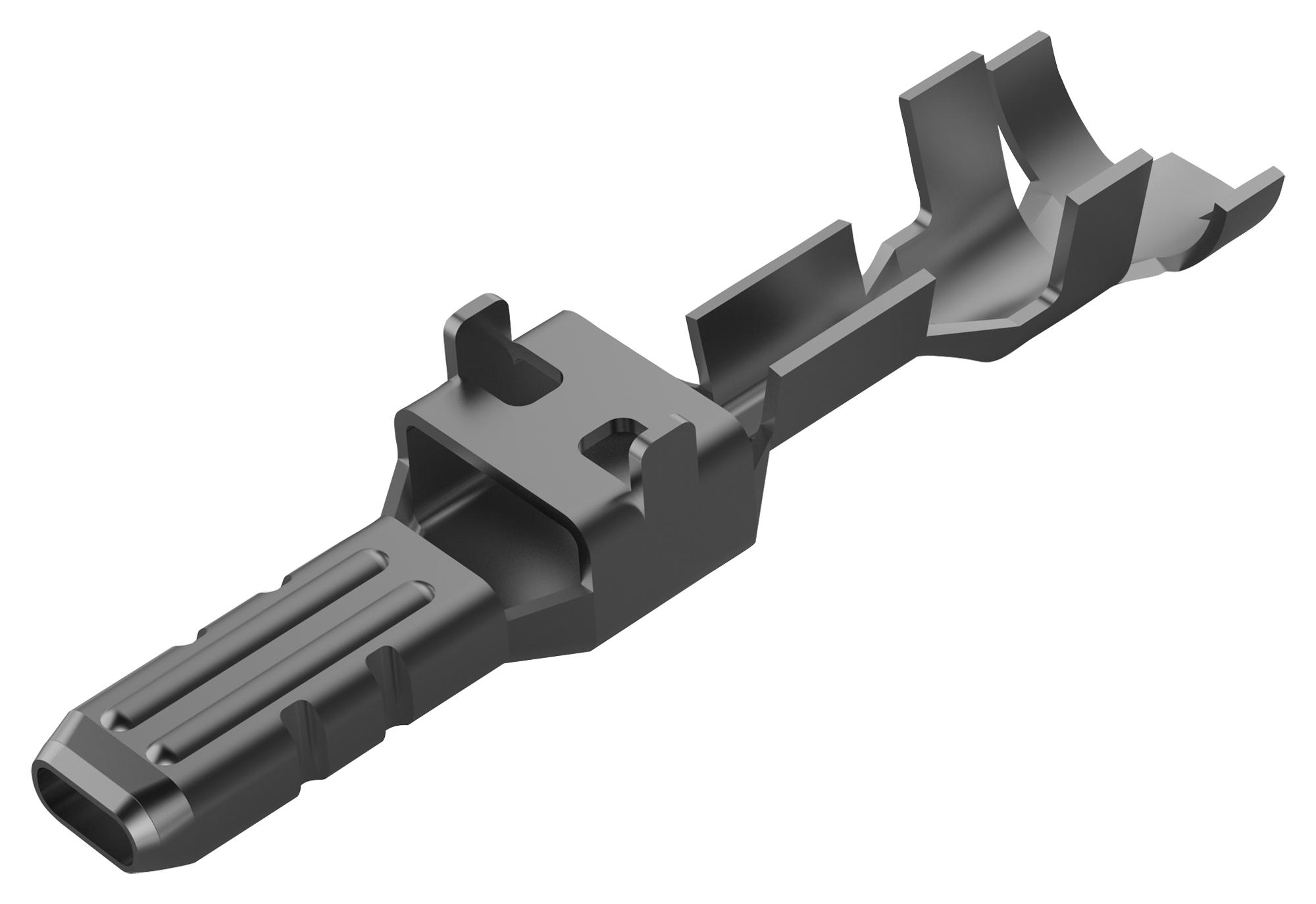

Buy the Buy TE Connectivity Power Triple Lock Part Number 19717862 Online
Secure your electrical and signal connections with the Power Triple Lock connector system by TE Connectivity. It offers a robust triple-locking mechanism for enhanced safety and stability, supporting wire sizes from 12 to 22 AWG and rated up to 20 amps for dependable power delivery. Suitable for appliances, industrial machinery, and wiring applications, it features multiple temperature ratings including standard 105°C, high temperature 150°C, and glow wire compliance. Easy to assemble in various configurations, this connector ensures safety, precision, and reliable operation in diverse environments.
Buy TE Connectivity Power Triple Lock 19717862 now and experience unmatched reliability and secure power connections.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 19717862?
You can click on the BUY or RFQ button to purchase 19717862 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 19717862?
You can download the 19717862 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 19717862?
TE CONNECTIVITY
