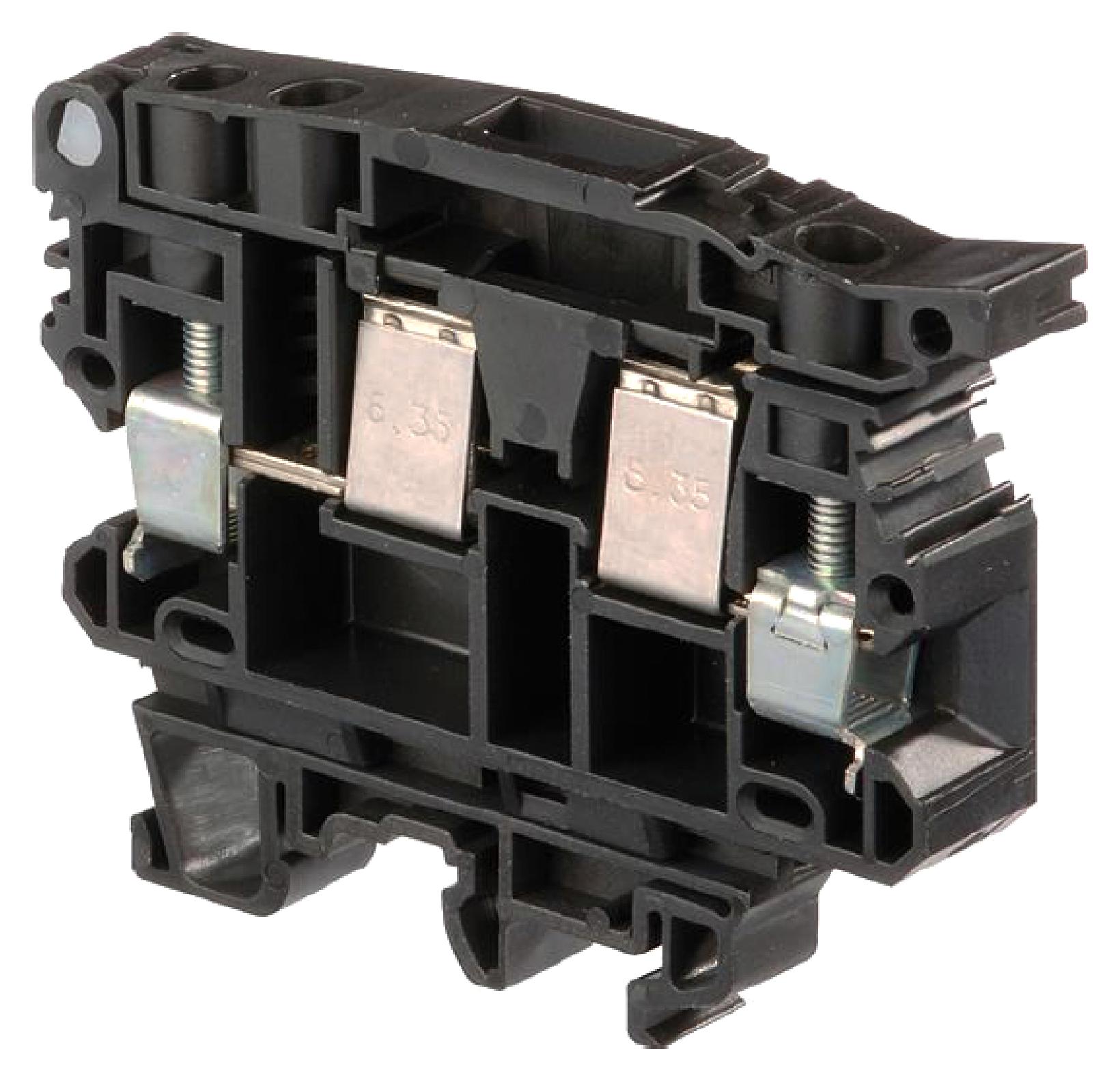

TE CONNECTIVITY 1SNA199095R1300 Screw Clamp Terminal Block
The TE Connectivity ML10/13.SF screw clamp terminal block is a robust solution for circuit protection, specifically designed to accommodate 6.35x25.4 and 6.35x32 fuses. It offers a secure connection for flexible and rigid wires, with a rated cross-section of 10 mm² and a spacing of 13 mm. The block is compatible with various DIN rail standards (G32, TH35-7.5, TH35-15), making it versatile for different panel configurations. Its robust construction and reliable clamping mechanism ensure long-lasting performance in industrial applications. TE Connectivity acquired this product range from ABB, ensuring continued quality and support.
TE CONNECTIVITY 1SNA199095R1300 Screw Clamp Terminal Block Specifications:
- Extended Product Type: ML10/13.SF
- Product ID: 1SNA199095R1300
- EAN: 3472591990959
- Color: Black
- Minimum Order Quantity: 20 piece
- Customs Tariff Number: 85361050
- Product Net Width: 13 mm
- Product Net Height: 85 mm
- Product Net Depth / Length: 58 mm
- Product Net Weight: 51 g
- Rated Cross-Section: 10 mm²
- Spacing: 13 mm
- Connection Type: Screw clamp
- Function: Fuse
- Number of Levels: 1
- Connecting Capacity Main Circuit Flexible: 1x 0.5 ... 10 mm²
- Connecting Capacity Main Circuit Rigid: 1x 0.5 ... 16 mm²
- Gauge Type: A6
- Rated Current (I n) Main Circuit: 16 A
- Rated Voltage (U r): 800 V
- Rated Impulse Withstand Voltage (U imp): 8000 V
- Pollution Degree: 3
- Mounting on DIN Rail: G32, TH35-7.5, TH35-15
- Wire Stripping Length: 12.0 mm
- Recommended Screw Driver: 5.5 mm
- Tightening Torque IEC 60947-1: 1.2 N·m
- Tightening Torque Manufacturer: 1.4 N·m
- Maximum Operating Voltage Main Circuit: 600 V
- Connecting Capacity Main Circuit UL/CSA Rigid: 1x 22 ... 10 AWG
- Connecting Capacity UL/CSA Stranded: 10 AWG
- Flammability According to UL94: V0
- RoHS Status: Following EU Directive 2002/95/EC
- Object Classification Code: X
- ETIM 4: EC000899 - Fuse terminal block
- ETIM 5: EC000899 - Fuse terminal block
- ETIM 6: EC000899 - Fuse terminal block
- Package Level 1 Units: 20 piece
- Package Level 1 Width: 172 mm
- Package Level 1 Depth / Length: 155 mm
- Package Level 1 Height: 71 mm
- Package Level 1 Gross Weight: 1.02 kg
- Package Level 2 Units: 200 piece
- Package Level 2 Width: 300 mm
- Package Level 2 Depth / Length: 500 mm
- Package Level 2 Height: 300 mm
- Package Level 2 Gross Weight: 10.700 kg
- Package Level 3 Units: 4800 piece
- Product Packing Type: Box
