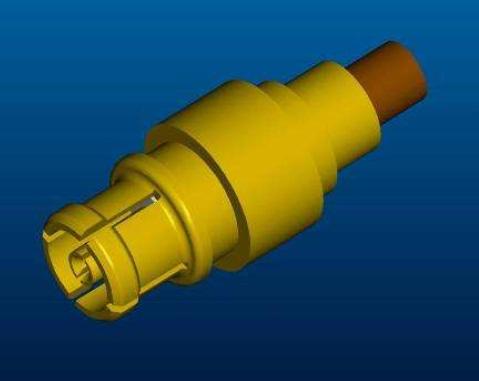

TE CONNECTIVITY 21010121 High-Frequency RF Connector
The SMPM RF connector is engineered for 0.086-inch cables, providing excellent high-frequency performance up to 40 GHz. Its compact design ensures reliable signal integrity in demanding RF applications, with features like easy plug-in mechanisms, low insertion loss, and a durable construction suitable for aerospace and defense environments. Designed to support various cable types, the connector maintains stable RF connections and offers compatibility with MIL-STD-348 standards for RF interface configurations. Ideal for high-density packaging and critical communication systems, it ensures optimal RF performance and long-lasting durability.
TE CONNECTIVITY 21010121 High-Frequency RF Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: DC to 40 GHz
- VSWR: 1.15 max to 26.5 GHz, 1.50 max to 40 GHz
- Engagement force: 8.0 lbs max (full detent), 2.5 lbs max (smooth bore)
- Disengagement force: 5 lbs min (full detent), 0.5 lbs min (smooth bore)
- Radial misalignment: .010 inch minimum
- Axial misalignment: .000 to .010 inch
- DWV: 200 VRMS minimum
- Operation Temperature: -65°C to +165°C
- Durability: 100 cycles full detent, 500 cycles smooth bore
- Material: Stainless Steel or Aluminum
- Compliance: Meets MIL-STD-348, ANSI/VITA 47 standards
- Application: High-frequency RF interconnects, aerospace, defense
Buy the TE Connectivity Series SMPM High-Frequency RF: 21010121
Order the TE Connectivity SMPM RF connector designed for 0.086-inch cables today and experience exceptional high-frequency performance up to 40 GHz. Perfect for aerospace, defense, and communications, this durable connector ensures reliable RF signal transmission and easy installation. Its compact design supports high-density packaging, complies with industry standards, and provides excellent channel-to-channel isolation. Compatible with various cables and environments, it guarantees long-lasting durability and optimal RF performance, making it a critical component in your high-frequency RF systems.
Get TE Connectivity SMPM RF connector 21010121 today—built for high-frequency performance and reliable signal transmission in demanding RF systems.
