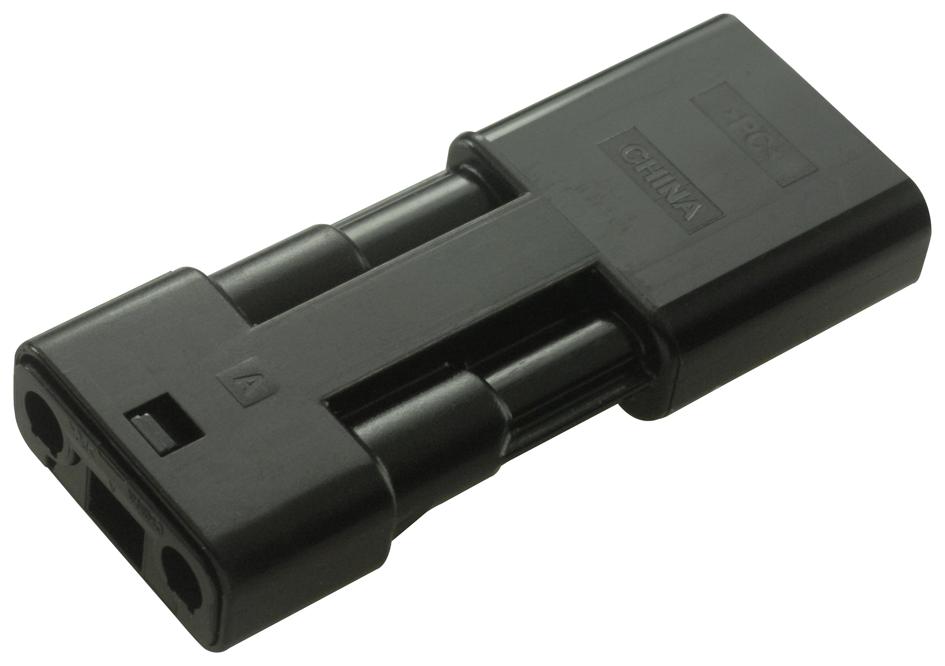

TE CONNECTIVITY 21061362 Sealed LED Connector
The SlimSeal Series Low-Profile Connector is designed for indoor and outdoor LED lighting applications, providing a sealed, low-power, wire-to-wire or wire-to-board connection. These connectors are suitable for hanging fixtures and offer robust electrical and mechanical stability in solid-state lighting systems. Features include a 1-position design for daisy chaining LED modules within a fixture, compatibility with SMT and through-hole assembly on metal-clad and FR4 PCBs, and polarized connections to prevent mis-mating. They also incorporate positive integral latching to prevent accidental disconnection, with pre-assembled seals and wire guides for easier installation. The connectors are rated IP67 for waterproof and dustproof protection. Common applications include HVAC systems and lighting installations.
TE CONNECTIVITY 21061362 Sealed LED Connector Specifications:
- Operating Current: 5 AMPS (18-20 AWG) & 3.5 AMPS (22-24 AWG)
- Maximum Operating Voltage: 400OVAC / 400VDC
- Dielectric Withstanding Voltage: 1800 VAC
- Number of positions: 1, 2, 3 and 4
- Operating Temperature: -40°C to 105°C
- Seal Rating: IP67
- Durability: 30 mating cycles
- Housing Material: UL 94 VO rated high temperature thermoplastic
- Receptacle Contacts: Tin Plated Copper Alloy
- Tab Contacts: Tin Plated Brass
- Integral Seals: Silicone Rubber
- Certifications: UL 1977, CSA C22.2 No. 182.3
- Exposure: UL 746C F1 (outdoor suitability for wire-to-wire connection)
Buy the Buy TE Connectivity SlimSeal Series Connector Part Number 21061362 Online
Experience the durability and reliability of TE Connectivity SlimSeal Series low-profile sealed connectors, perfect for indoor and outdoor LED lighting applications. Rated IP67, these connectors feature integral seals, polarized contacts, and a secure latching mechanism to prevent accidental disconnection. Suitable for wire-to-wire and wire-to-board configurations, they support various wire gauges including 18-20 AWG and 22-24 AWG, with a maximum operating voltage of 400VAC/DC. Easy to install with pre-assembled seals, ideal for HVAC systems, lighting, and solid-state lighting installations requiring waterproof, dustproof, and vibration-resistant connections.
Get TE Connectivity SlimSeal Series Connector 21061362 today—designed for waterproof LED lighting systems with robust sealing and reliable connections.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 21061362?
You can click on the BUY or RFQ button to purchase 21061362 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 21061362?
You can download the 21061362 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 21061362?
TE CONNECTIVITY
