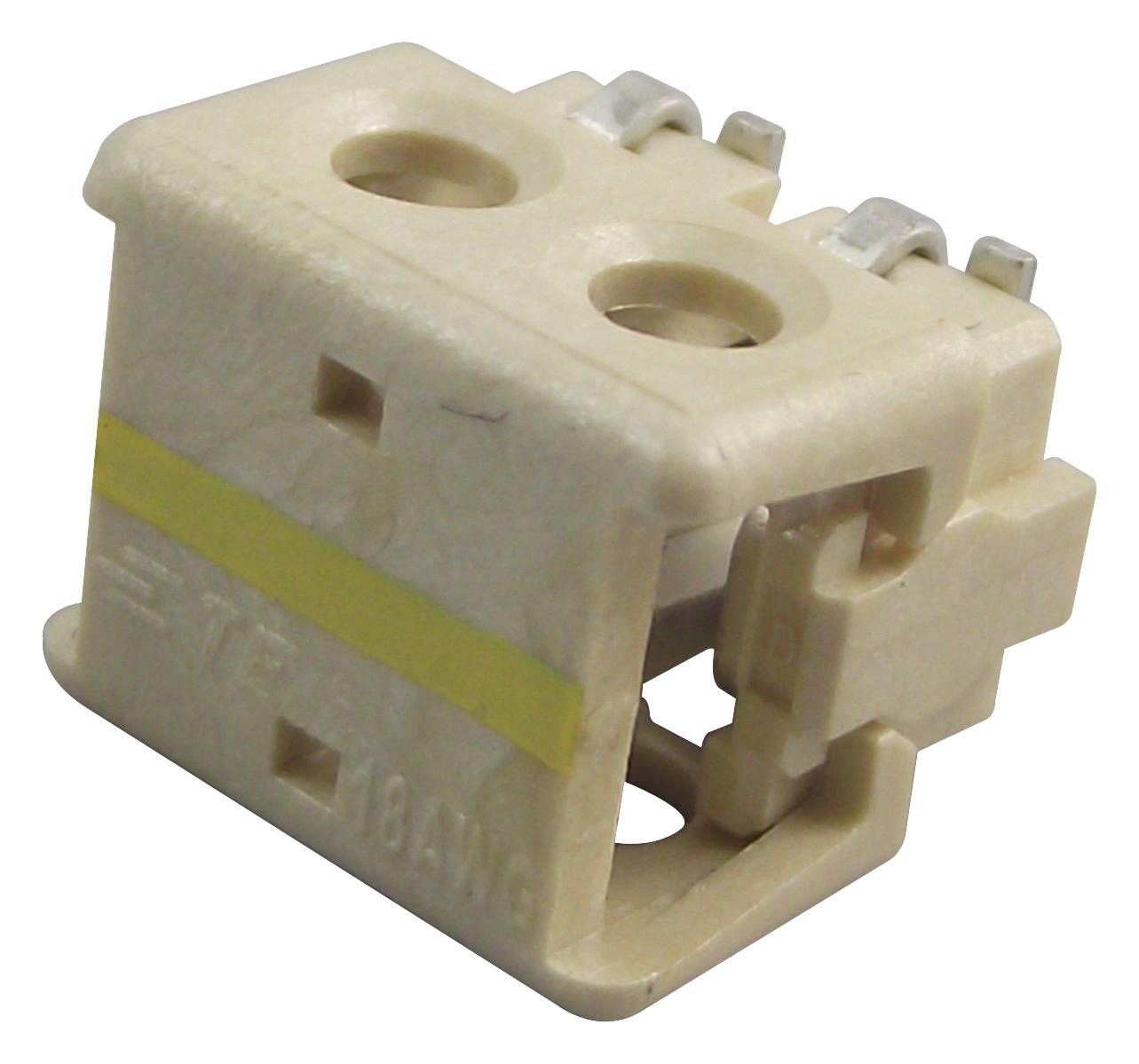

TE CONNECTIVITY 21064312 IDC Wireless Connector
The IDC SSL Connector series by TE Connectivity are insulation displacement, wire-to-board connectors designed for quick, tool-less termination of 18-24 AWG stranded and solid wires. Available in SMT and thru-hole versions, they are ideal for LED lighting controls, general illumination fixtures, and non-lighting applications. These connectors feature high temperature resistant thermoplastic housings, tin over nickel-plated copper alloy contacts, and support operating currents up to 8 amps at 400 volts. They are packaged in tape and reel for automated manufacturing, providing robust electrical and mechanical connections for power and signal applications.
TE CONNECTIVITY 21064312 IDC Wireless Connector Specifications:
- Wire Gauge: 18-24 AWG stranded and solid wire
- Maximum Operating Voltage: 400 VAC/DC
- Operating Current: 8 AMPS (18 AWG only)
- Operating Temperature: -40°C to 105°C
- Housing Material: High temperature resistant thermoplastic
- Contacts: Tin over nickel plated copper alloy
- Wire Retention: 5 lbs. minimum
- Dielectric Withstanding Voltage: ISOOVAC
- Packaging: Tape and reel per EIA-481
- Terminations: Tool-less, insulation displacement technology
- Application: LED lighting controls, general illumination fixtures, non-lighting applications
- Connector Types: SMT and thru-hole, closed end and feed thru
- Color Coding: Yellow (18 AWG), Blue (20 AWG), Green (22 AWG), Red (24 AWG)
Buy the Buy TE Connectivity IDC SSL Connector Part Number 21064312 Online
Order the TE Connectivity IDC SSL Connector 21064312 online now and experience quick, tool-less termination suitable for 18-24 AWG wires. These connectors provide a secure, high-quality electrical connection for LED lighting and non-lighting applications, featuring durable thermoplastic housing, tin-plated copper contacts, and high-temperature resistance. Packaged in tape and reel for efficient automated assembly, they support up to 8 amps at 400 volts, ensuring long-lasting performance. Ideal for LED fixtures, control systems, and power distribution in various electronic and lighting setups. Purchase today for reliable wiring solutions.
Get TE Connectivity IDC SSL Connector 21064312 today—designed for reliable, quick, and tool-less wiring for LED lighting and electronic applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 21064312?
You can click on the BUY or RFQ button to purchase 21064312 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 21064312?
You can download the 21064312 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 21064312?
TE CONNECTIVITY
