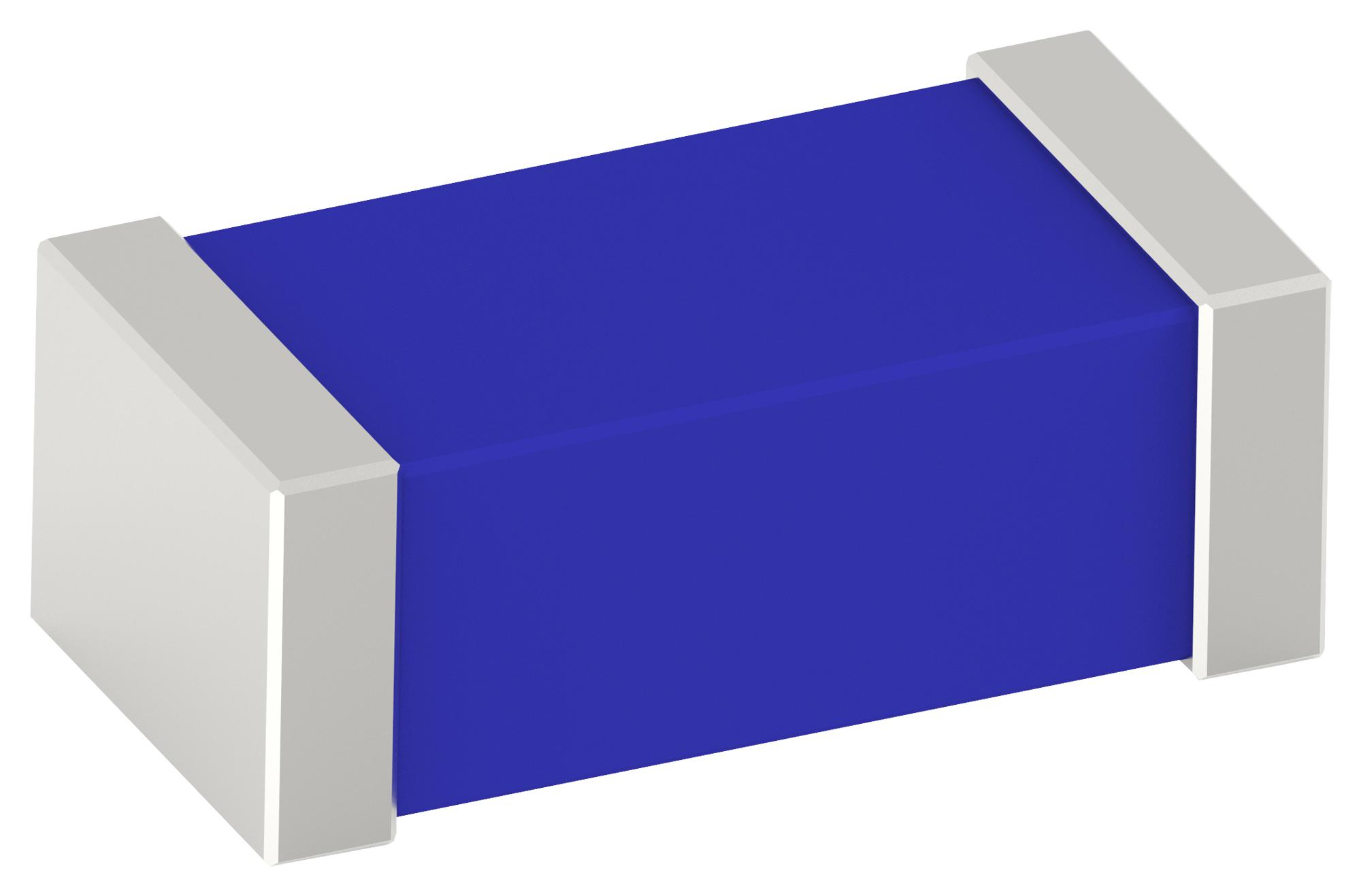

TE CONNECTIVITY 21088381 Embedded Chip Antenna
The TE Connectivity 2108838-1 is a compact embedded chip antenna optimized for 2.4 GHz wireless applications, including Wi-Fi, Bluetooth, and ZigBee. Its small form factor and surface mount design make it ideal for integration into a wide range of devices. The antenna delivers reliable performance with a VSWR of less than 2.0:1 and an average efficiency of 57%. It is designed for use in portable devices, IoT applications, and other wireless systems requiring a compact and efficient antenna solution. The antenna operates within a frequency range of 2400-2500 MHz and is suitable for applications requiring robust wireless connectivity.
TE CONNECTIVITY 21088381 Embedded Chip Antenna Specifications:
- Frequency Range: 2400-2500 MHz
- VSWR: < 2.0:1
- Average Efficiency: 57%
- Peak Gain: 2.4 dBi
- Average Gain: -2.5 dBi
- Feed Point Impedance: 50 ohms
- Polarization: Linear
- Size: 3.2 mm x 1.6 mm x 1.2 mm
- Weight: < 0.02 g
- Mounting: Surface mount
- Operating Temperature: -40 to +85°C
- Storage Temperature: -40 to +85°C
