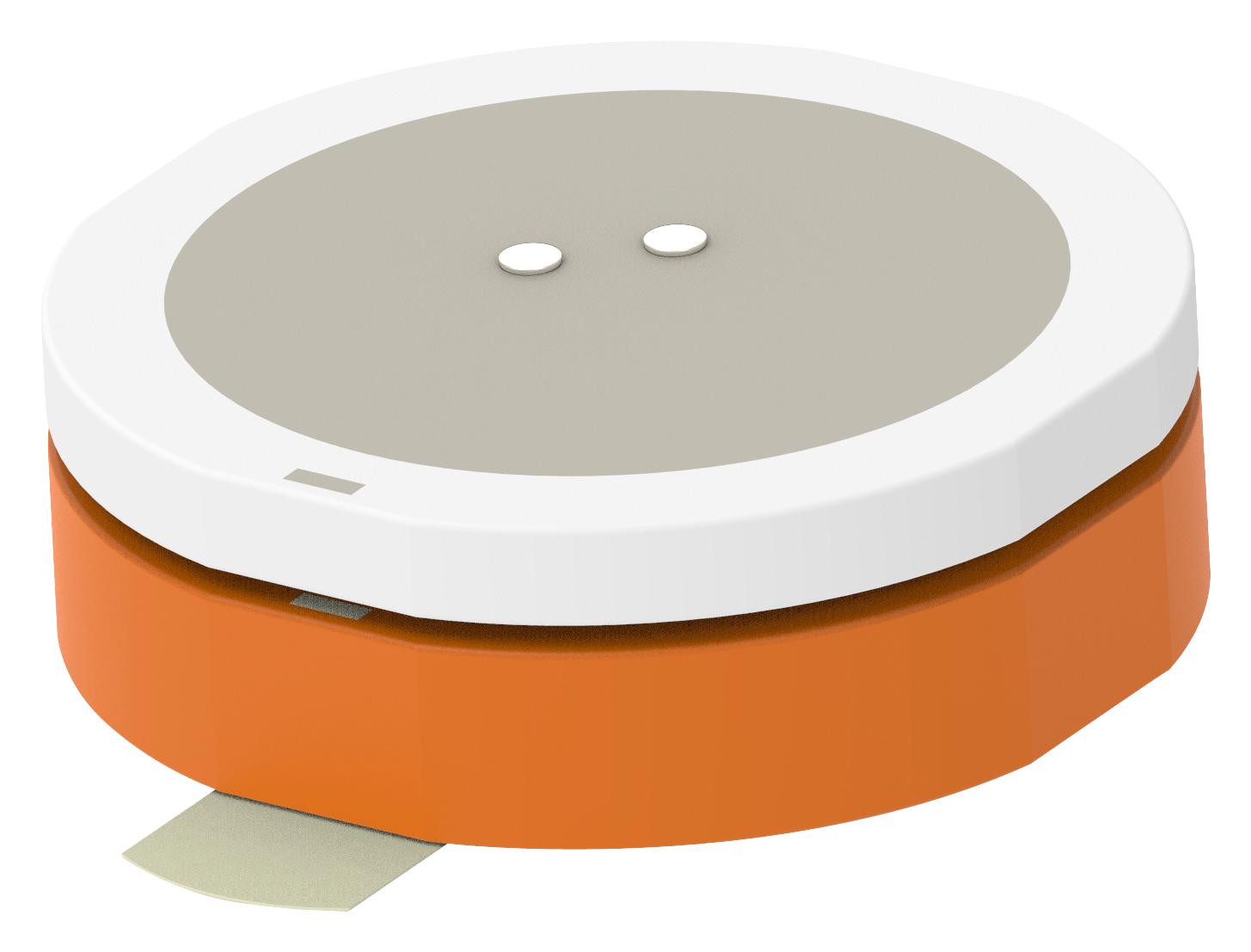

TE CONNECTIVITY 21088401 GNSS Antenna
The TE Connectivity 2108840-1 is a high-performance GNSS antenna designed for a wide range of applications including navigation, positioning, and timing systems. This dual-port antenna supports L1+G1 & L2+E5b+G2 bands, providing robust signal reception. Its compact size (41.0 mm x 41.0 mm x 13.0 mm) and through-hole mounting capability make it suitable for integration into various devices. The antenna offers a peak gain of up to 5.6 dBic and operates within a temperature range of -40 to +85°C, ensuring reliable performance in challenging environments. It is ideal for use in automotive, industrial, and consumer electronics applications.
TE CONNECTIVITY 21088401 GNSS Antenna Specifications:
- Frequency Range (MHz): 1194 - 1255 / 1559 - 1610
- VSWR: < 1.3:1 / < 1.4:1
- Peak Gain at Zenith: Typ. 5.1 dBic / Typ. 5.6 dBic
- Axial ratio at Zenith: Typ. 1.5 dB / Typ. 0.7 dB
- Average Gain: -3.9 dBic / -2.4 dBic
- Isolation: -24 dB / -21dB
- Feed Point Impedance: 50 ohms
- Polarization: RHCP
- Size: 41.0 mm x 41.0 mm x 13.0 mm
- Weight: < 62.7 g
- Mounting: Adhesive Tape
- Operating Temperature: -40 to +85°C
- Storage Temperature: -40 to +85°C
