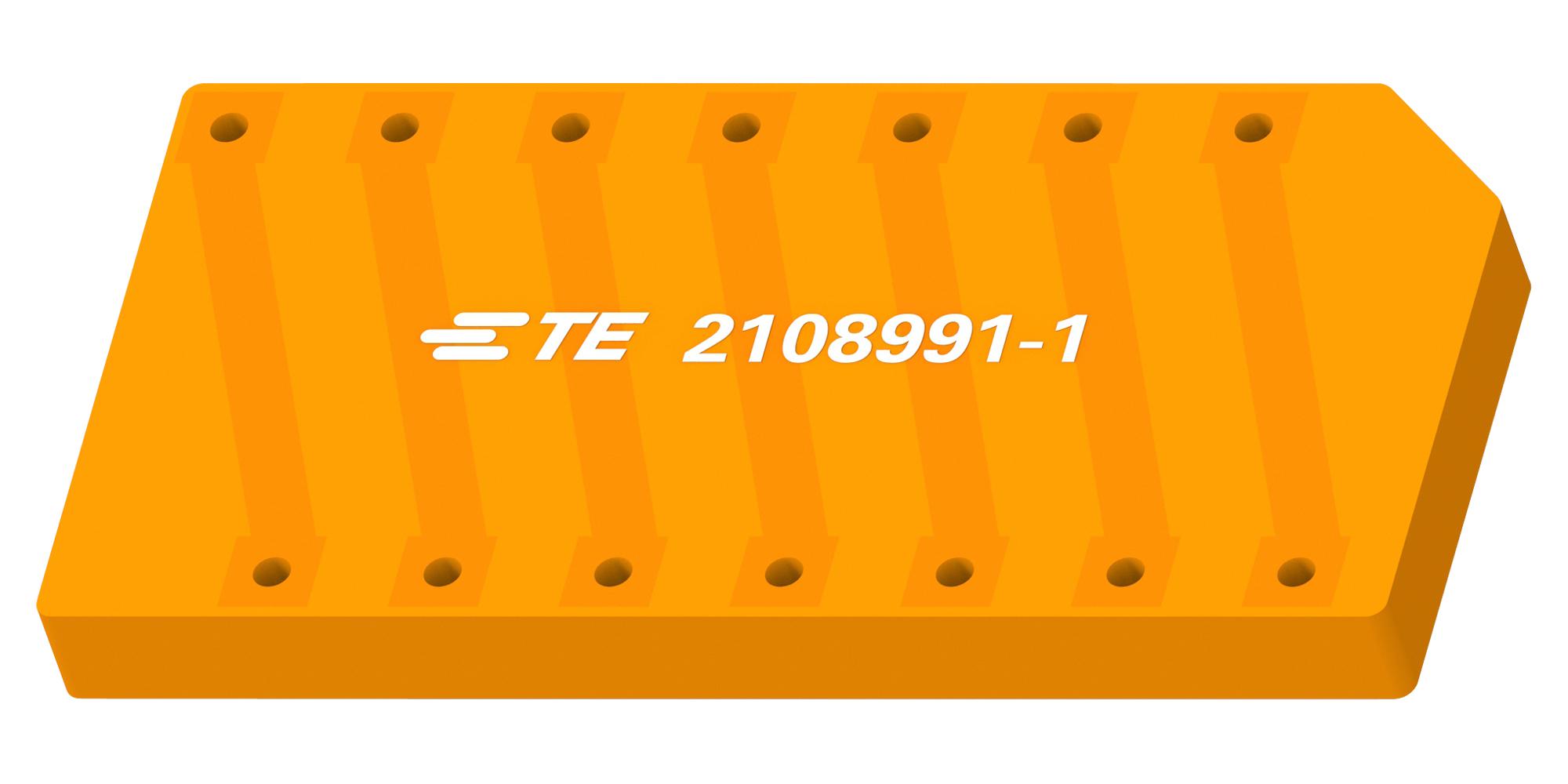

TE CONNECTIVITY 21089911 GSM/LTE Printed Circuit Board Antenna
The TE Connectivity 2108991-1 is a compact and versatile antenna designed for a wide range of wireless applications, including GSM 850/800, and LTE-LB 700. This surface mount (SMT) antenna is ideal for integration into printed circuit boards (PCBs) in IoT devices, mobile communication systems, and other wireless applications. It offers a broad frequency band, ensuring compatibility with various wireless standards. The antenna's robust design and reliable performance make it a suitable choice for demanding industrial environments. It is RoHS compliant and supports various wireless standards like CDMA 850, GSM 900, and ZigBee.
TE CONNECTIVITY 21089911 GSM/LTE Printed Circuit Board Antenna Specifications:
- Antenna Connection Type: Surface Mount (SMT)
- Number of Ports: 1
- Antenna Style: Embedded
- Antenna Type: PCB
- Impedance: 50 Ω
- Frequency Band: 698 – 960 MHz
- Mounts To: Printed Circuit Board
- Mounting Retention Type: Printed Circuit Board
- Product Length: 18 mm
- Product Width: 9 mm
- Product Height: 1.57 mm
- Wireless Standard: 915 ISM & ZigBee US
- Packaging Method: Tape & Reel
- Precision Level: Standard
- EU RoHS Directive 2011/65/EU: Compliant
- EU ELV Directive 2000/53/EC: Compliant
- China RoHS 2 Directive MIIT Order No 32, 2016: No Restricted Materials Above Threshold
- EU REACH Regulation (EC) No. 1907/2006: Current ECHA Candidate List: JUN 2020
- Halogen Content: Low Bromine/Chlorine - Br and Cl < 900 ppm per homogenous material. Also BFR/CFR/PVC Free
- Solder Process Capability: Reflow solder capable to 245°C
Buy the 2108991-1 TE CONNECTIVITY GSM/LTE Printed Circuit Board Antenna | myMectronic
Purchase the TE Connectivity 2108991-1 antenna securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 21089911?
You can click on the BUY or RFQ button to purchase 21089911 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 21089911?
You can download the 21089911 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 21089911?
TE CONNECTIVITY
