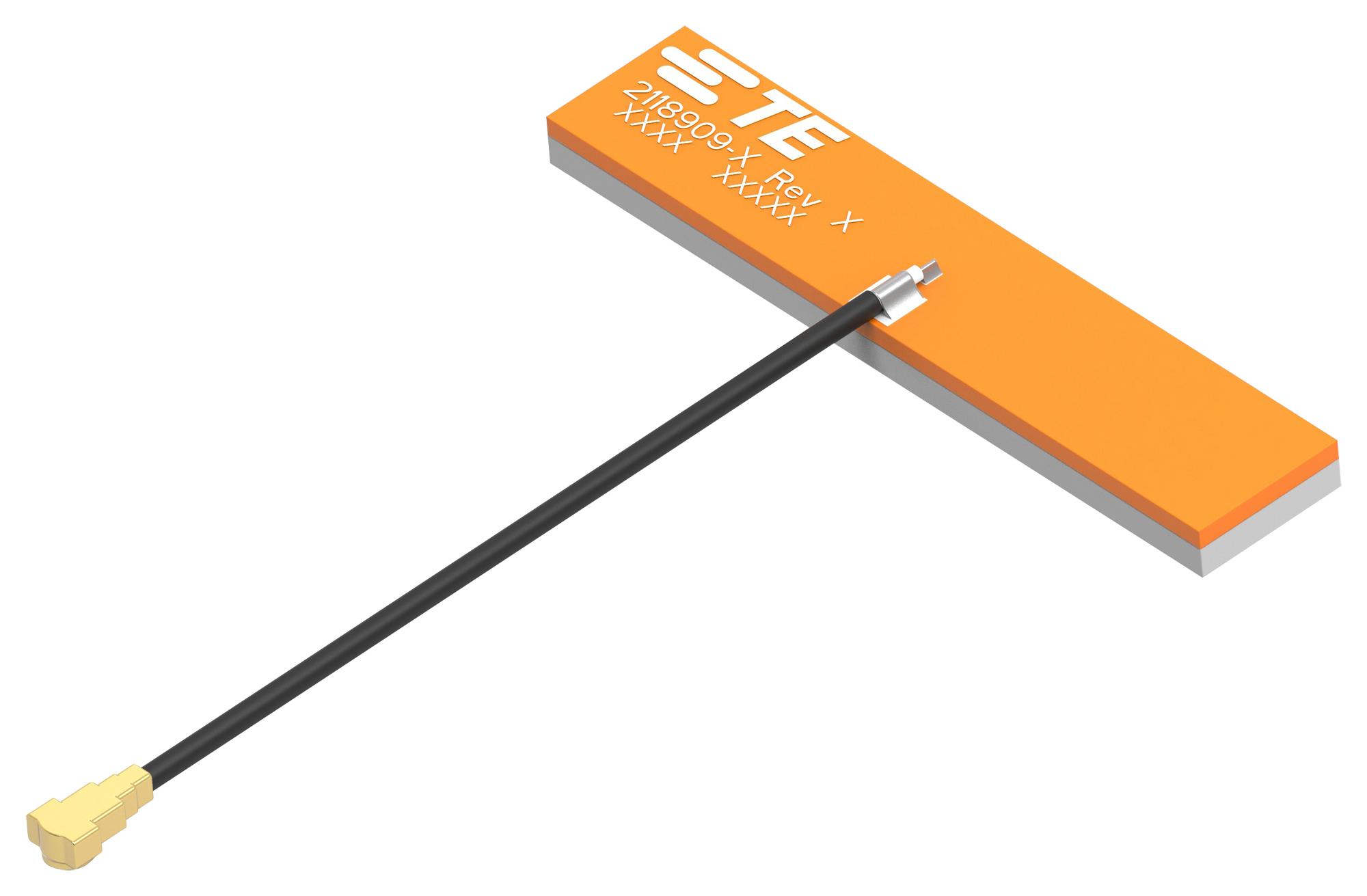

TE CONNECTIVITY 21189092 Wi-Fi Triple Band Antenna
This Wi-Fi 6/6E triple band embedded antenna provides reliable wireless connectivity with widespread frequency coverage from 2400 MHz to 7125 MHz, including WiFi 6E's 6 GHz band. Its compact size of 40 mm x 8 mm x 1 mm and lightweight design under 1.59 grams allow easy mounting using the adhesive backing. Designed for plastic enclosures, it offers high efficiency, peak gain up to 3.0 dBi, and robust power handling of 10 watts, supporting various wireless protocols like Bluetooth and ZigBee for industrial and IoT applications. It ensures stable performance with VSWR below 2.5:1 across all bands.
TE CONNECTIVITY 21189092 Wi-Fi Triple Band Antenna Specifications:
- Frequency Range: 2400-2483.5 MHz, 5150-5875 MHz, 5925-7125 MHz
- VSWR: <2.0:1, <2.07:1, <2.5:1
- Average Efficiency: 75%, 70%, 65%
- Peak Gain: 3.0 dBi, 2.8 dBi, 2.4 dBi
- Average Gain: -1.3 dBi, -1.6 dBi, -1.9 dBi
- Power Handling: 10 Watt CW
- Feed Point Impedance: 50 ohms unbalanced
- Polarization: Linear
- Size: 40.0 mm x 8.0 mm x 1.0 mm
- Weight: < 1.59 grams
- Mounting: Adhesive tape
- Mating Connectors: MHF-type (PN 2337019-1), MHF4-type (PN 2344884-1)
- Cable Diameter: 1.13 mm
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
Buy the TE Connectivity 2118909-1 – Reliable Wi-Fi 6/ 6E Triple Band Embedded Antenna for Industrial Applications
Purchase the TE Connectivity 2118909-1 Wi-Fi 6/6E triple band embedded antenna online today. Its compact size, high efficiency, and wide frequency coverage make it ideal for industrial IoT, smart devices, and wireless solutions. Designed for easy mounting with adhesive backing, it offers peak gain up to 3 dBi and supports Bluetooth and ZigBee protocols. Built to operate reliably between -40°C and +85°C, it ensures stable long-term performance for your wireless communication needs.
Order your TE Connectivity 2118909-1 Wi-Fi 6/6E triple band embedded antenna today and enhance your wireless connectivity with high efficiency and compact design.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 21189092?
You can click on the BUY or RFQ button to purchase 21189092 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 21189092?
You can download the 21189092 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 21189092?
TE CONNECTIVITY
