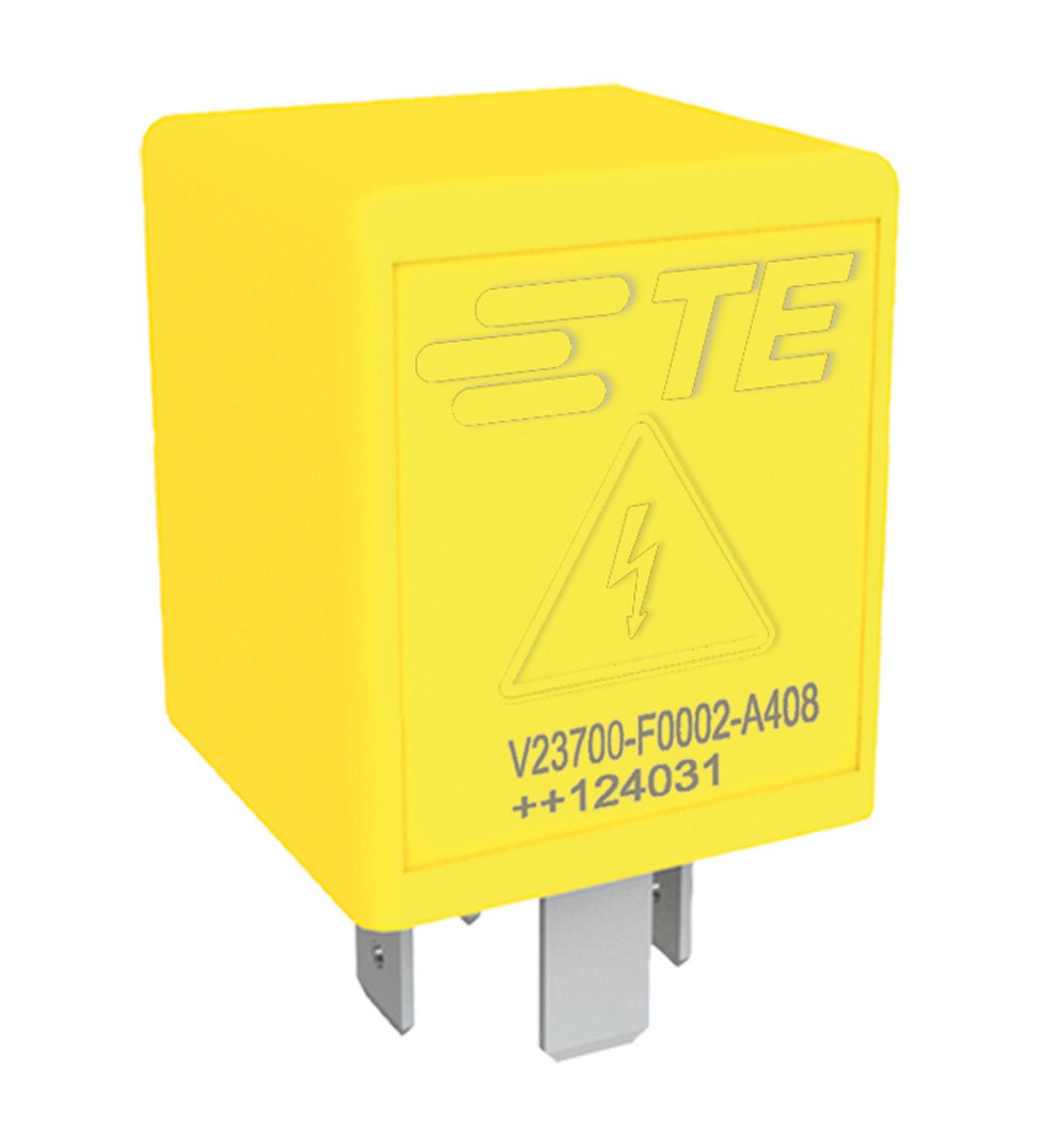

TE CONNECTIVITY 219040587 HV Precharge Relay
The TE Connectivity Mini K HV Precharge Relay is a compact and reliable solution for precharge applications in automotive systems. It's engineered to handle voltage levels up to 450VDC and provides a 20A precharge current, ensuring efficient and safe operation. This relay is commonly used in hybrid, full battery electric vehicles, and fuel-cell cars, contributing to the reliable startup and operation of high-voltage systems. Its robust design and compliance with IEC 60664 standards guarantee performance and longevity in demanding environments. Available in both PCB and plug-in terminal configurations, it offers flexibility for various integration needs.
TE CONNECTIVITY 219040587 HV Precharge Relay Specifications:
- Suitable Voltage Levels: up to 450VDC
- Precharge Currents: up to 20A
- Limiting Break Currents: up to 20A
- Contact Arrangement: 1 form X (NO DM)
- Rated Voltage: 400VDC
- Max Switching Voltage: 450VDC
- Initial Contact Voltage Drop: typ. 150mV, max. 300 mV
- Operate Time: typ. 2.5ms
- Release Time: typ. 1ms
- Mechanical Endurance: >106ops
- Nominal Voltage: 12V
- Max Energization Duration: 2s
- Coil Resistance: 50 Ω±10%
- Coil Power: 2.9 W
- Dielectric Strength: 2800 VDC/3mA
- Insulation Resistance: >200MΩ
- Clearance/Creepage: acc. IEC 60664-1
- Max Altitude: 5500m
- Flammability: acc. UL94-HB
- Ambient Temperature Range: -40°C to +85°C
- Climatic Cycling: EN ISO 6988
- Temperature Cycling (Shock): IEC 60068-2-14
- Damp Heat: IEC 60068-2-3
- Degree of Protection (PCB): RT II
- Corrosive Gas: IEC 60068-2-42
- Shock Resistance (Functional): IEC 60068-2-27
- Terminal Type: PCB and plug-in/QC
- PCB Version Weight: approx. 17g (0.6oz)
- Plug-in Version Weight: approx. 39g (1.4oz)
- Solderability (PCB): hot dip 5s, 215°C
- Resistance to Soldering Heat (PCB): hot dip 10s, 260°C with thermal screen
