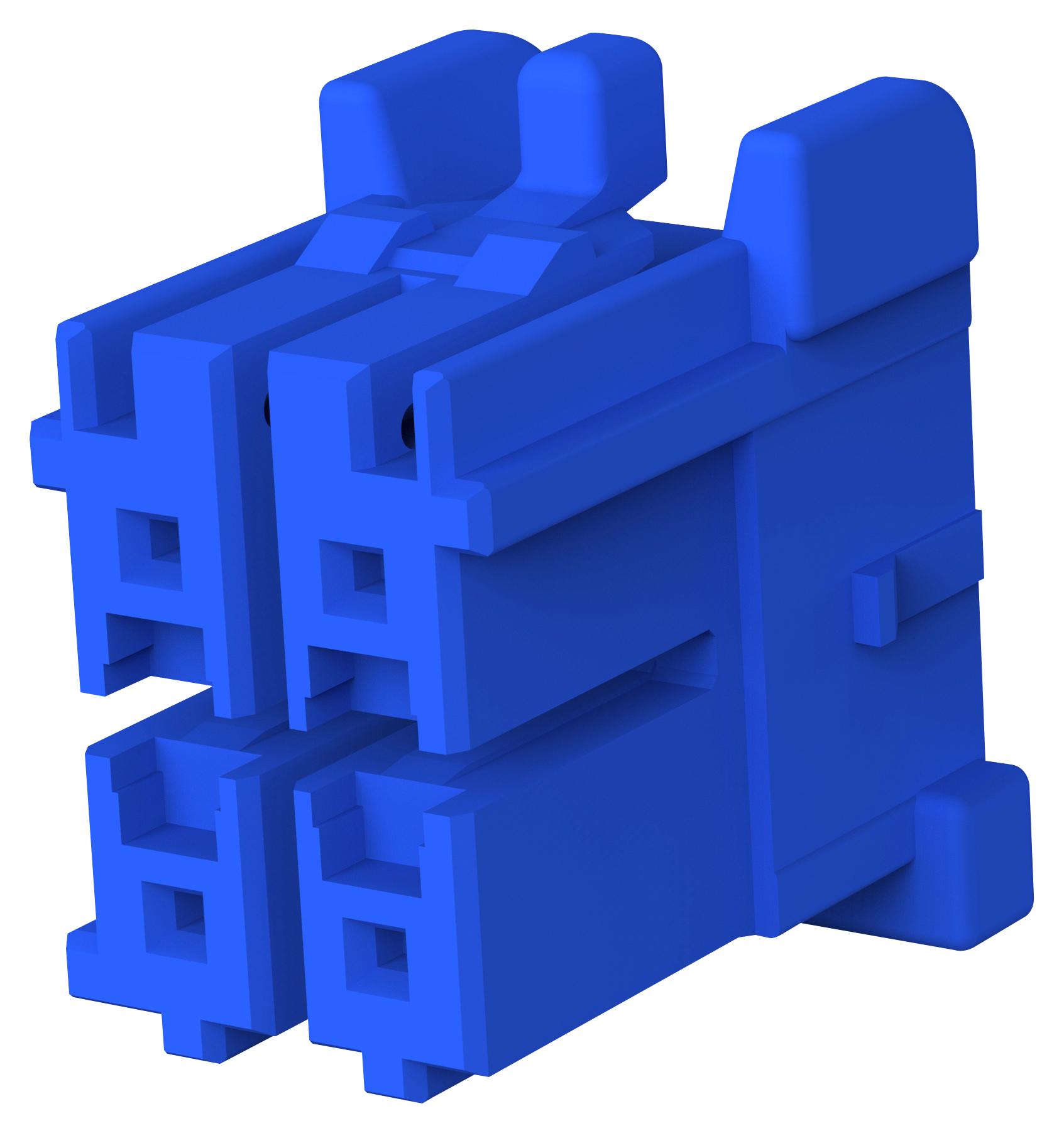

TE CONNECTIVITY 219719052 Inertia Locking Connector
The Grace Inertia Connector 3.3 series is a high-performance electronic component designed for reliable connections in household appliances such as washing machines. It features a 3.3mm pitch, dual beam contact design for durability, and an inertia locking mechanism to prevent disconnection during movement. The connector accommodates wire gauges #20 - #24 AWG and insulation ranges of 1.5 - 2.5mm. Made of UL94-VO rated nylon with tin-plated copper alloy contacts, it ensures safe, secure, and vibration-resistant connections suitable for industrial and domestic applications.
TE CONNECTIVITY 219719052 Inertia Locking Connector Specifications:
- Pitch: 3.3mm
- Contact Material: Tin-plated Copper Alloy
- Housing & TPA: UL94-VO nylon
- Wire Gauge: #20 - #24 AWG
- Wire Insulator Range: 1.5 - 2.5mm
- Voltage Rating: 250V AC/DC
- Current Rating: 4A Max
- Height from PCB to Contact: 8mm
- Design: Inertia locking mechanism, dual beam contact
- Keying Methods: 4 with different colors
- Housing Colors: Natural, Blue, Red, Yellow (Black for TPA)
- Application: Household appliances, washing machines
- Standards: IEC 60335-1 glow wire compliant
- Dimensions: Pitched at 3.3mm, with punched and drilled holes as per datasheet
- Durability: Good contact and mechanical robustness
Buy the Grace Inertia Connector 3.3 – Reliable Locking Connector for Household Appliances
Order the Grace Inertia Connector 3.3 series online to ensure your household or industrial appliance connections are secure, durable, and easy to install. Designed with dual beam contacts and an inertia locking mechanism, this connector prevents disconnection during movement or transportation. Suitable for wiring #20 - #24 AWG and insulating ranges of 1.5 - 2.5mm, it features UL94-VO rated nylon housing with color options for easy identification. Perfect for washing machines and similar household devices, this connector guarantees reliable electrical contact, safety compliance, and long-lasting performance.
Buy Grace Inertia Connector 3.3 now and experience unmatched reliability and secure connections for household and industrial applications.
