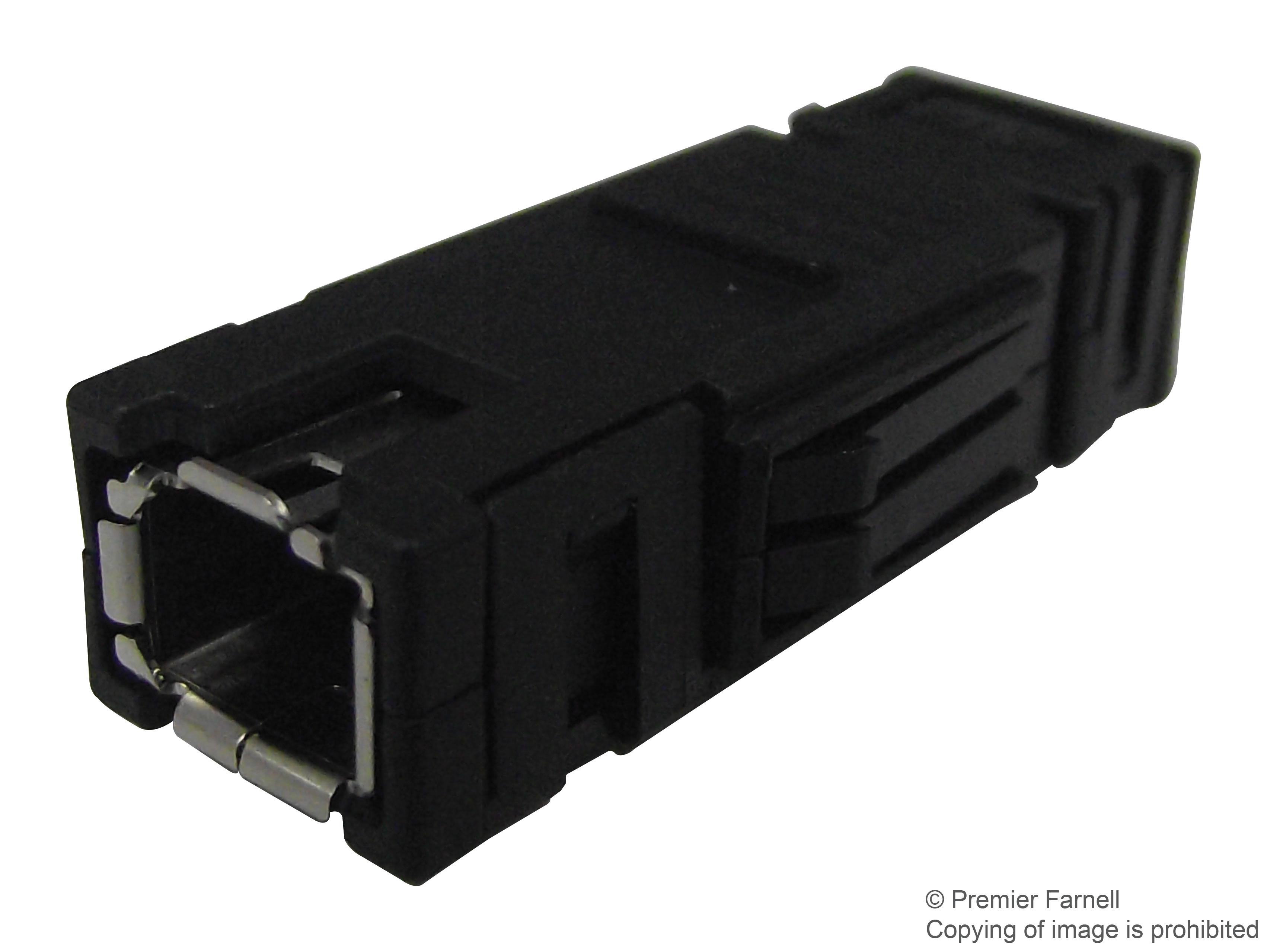

TE CONNECTIVITY 22018641 Industrial Mini I/O Connector
TE Connectivity’s Industrial Mini I/O Field Installable connector provides innovative and time-saving wire-termination alongside serving as a space-saving and reliable I/O solution for industrial environments. Its compact size and innovative piercing termination reduce termination time and allow for field assembly. Designed for stringent industrial environments, this connector ensures reliable connections and increased productivity. It is intermateable with receptacles in different configurations, offering design flexibility.
TE CONNECTIVITY 22018641 Industrial Mini I/O Connector Specifications:
- Operating temperature: −40 °C to +85 °C
- Cable diameter: 7.1 mm Max
- Wire size: 24 AWG Max
- Latch retention force: 98 N (10 kg)
- Plug Kit dimensions: 11.62 x 34 x 8.7 mm
- Receptacle Kit dimensions: 11.7 x 35 x 13.5 mm
- Position: 8 position
- Configuration: Wire-to-board
- Pitch: 0.635 mm
- Rated voltage: 30 V
- Current rating: 0.5 AMPS
- Shell material: Copper alloy
- Contact material: Copper alloy
- Housing material: Thermoplastic
- Standards: Meets Cat5e requirements
- Application specification: 108-78955, 114-5506
Buy the 2201864-1 TE CONNECTIVITY Industrial Mini I/O Connector | myMectronic
Securely purchase the TE Connectivity 2201864-1 Industrial Mini I/O Connector online for reliable industrial connectivity.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 22018641?
You can click on the BUY or RFQ button to purchase 22018641 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 22018641?
You can download the 22018641 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 22018641?
TE CONNECTIVITY
