TE CONNECTIVITY 22136003 Datasheet & Stock

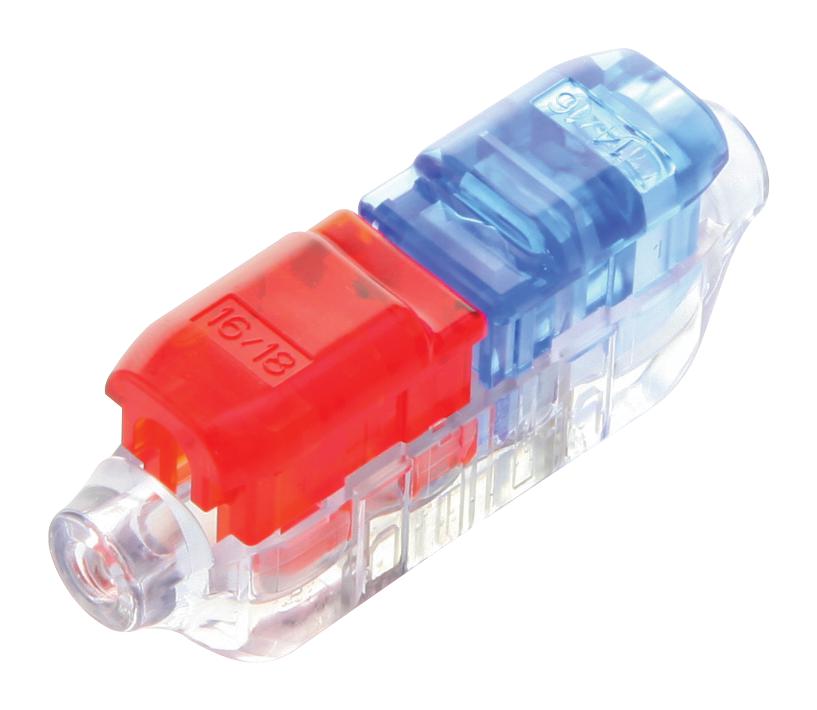

The TE Connectivity 2213600-3 CoolSplice connector is designed for large wire applications, featuring push-button termination using pliers. This connector allows independent termination of each wire, enabling factory pre-termination of one wire and field termination of the other during installation. It provides a waterproof, IP-rated splice solution, saving time and eliminating the need to pre-strip wires thanks to insulation displacement technology (IDC). The connector supports wire sizes from 14/16AWG to 16/18AWG, with a dielectric withstand voltage of 3400VAC. It operates within a temperature range of -40°C to 105°C and has IPX5, IPX7, and IPX8 ratings. Made with tin-plated copper alloy contacts, it is approved under UL 486C and IEC 60998-2-3 standards. This sealed version is suitable for outdoor and industrial applications, including outdoor lighting, indoor fixtures, and wiring harness repairs.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 22136003?
You can click on the BUY or RFQ button to purchase 22136003 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 22136003?
You can download the 22136003 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 22136003?
TE CONNECTIVITY
