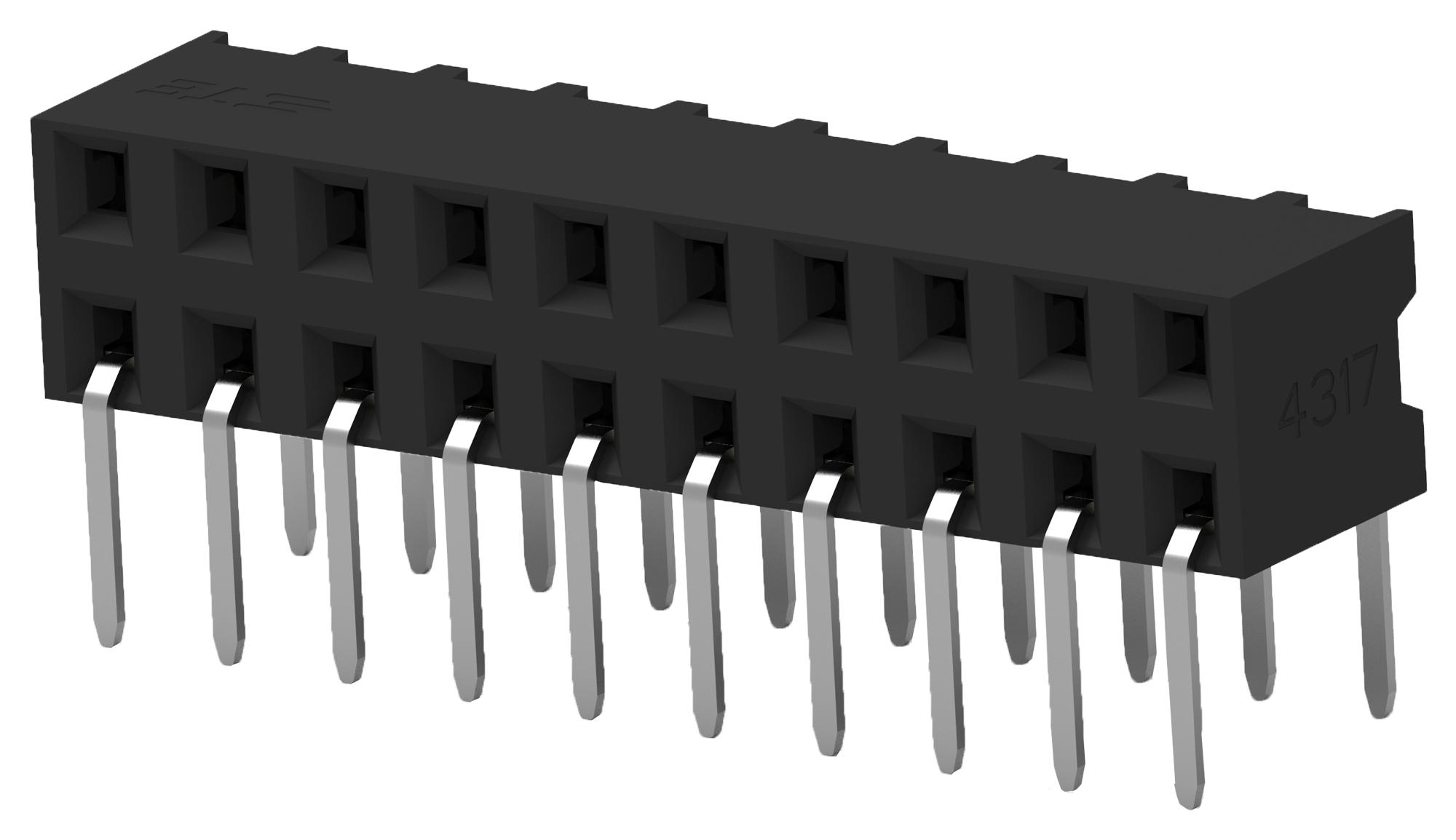

TE CONNECTIVITY 223149260 Board-to-Board Receptacle
TE Connectivity's AMPMODU 2mm Board-to-Board Receptacles are designed for space-efficient, reliable electrical connections in industrial applications. These high-temperature-resistant liquid crystal polymer (LCP) receptacles feature phosphor bronze contacts with dual cantilever beams and multiple gold plating options, ensuring consistent signal transfer and high durability. Suitable for surface-mount, through-hole, and reflow processes, they support up to 25 positions per row, with vertical and horizontal options. Ideal for PLCs, servo drives, building automation, and instrumentation, these receptacles provide robust, space-saving connections in demanding environments.
TE CONNECTIVITY 223149260 Board-to-Board Receptacle Specifications:
- Centerline: 200mm [0.079"]
- Dual beam contact design for increased electrical stability
- Material: Phosphor Bronze contacts, high-temperature liquid crystal polymer (LCP) housing, UL 94V0, black
- Plating: 30p" [0.76um] gold, 15y" [0.38um] gold, 4u" [0.1um] gold
- Operating Temperature: -40°C to 125°C
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Reflow Solder Capable to 260°C
- Compliance: RoHS & REACH, UL Certified, VDE Pending
- Suitable for surface-mount, through-hole, and reflow mounting
- Supports multiple solder tail lengths for PCB thicknesses from 1.6mm to 2.4mm
- Available in tape and reel, tube packaging, with or without caps
- Supports vertical and dual entry configurations
- Mechanical stability with two-point contact
- Applications include PLC, servo drives, industrial controls, instrumentation, building automation, and material handling
Buy the TE Connectivity Series AMPMODU 2mm Board-to-Board Receptacles: 223149260
Enhance your electronic assembly with TE Connectivity's space-efficient AMPMODU 2mm Board-to-Board Receptacles, specially designed for reliable connections in industrial automation. These high-temperature-resistant modules feature dual-beam contacts for increased surface contact, ensuring stable signal transfer. Suitable for surface-mount or through-hole mounting, they support various PCB thicknesses and stacking configurations. Ideal for PLCs, servo drives, and building automation, these receptacles offer robust performance, easy installation, and compliance with industry standards—making them an excellent choice for demanding environments.
Get TE Connectivity AMPMODU 2mm Board-to-Board Receptacles today—built for space-saving, high-reliability connections in industrial automation.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 223149260?
You can click on the BUY or RFQ button to purchase 223149260 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 223149260?
You can download the 223149260 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 223149260?
TE CONNECTIVITY
