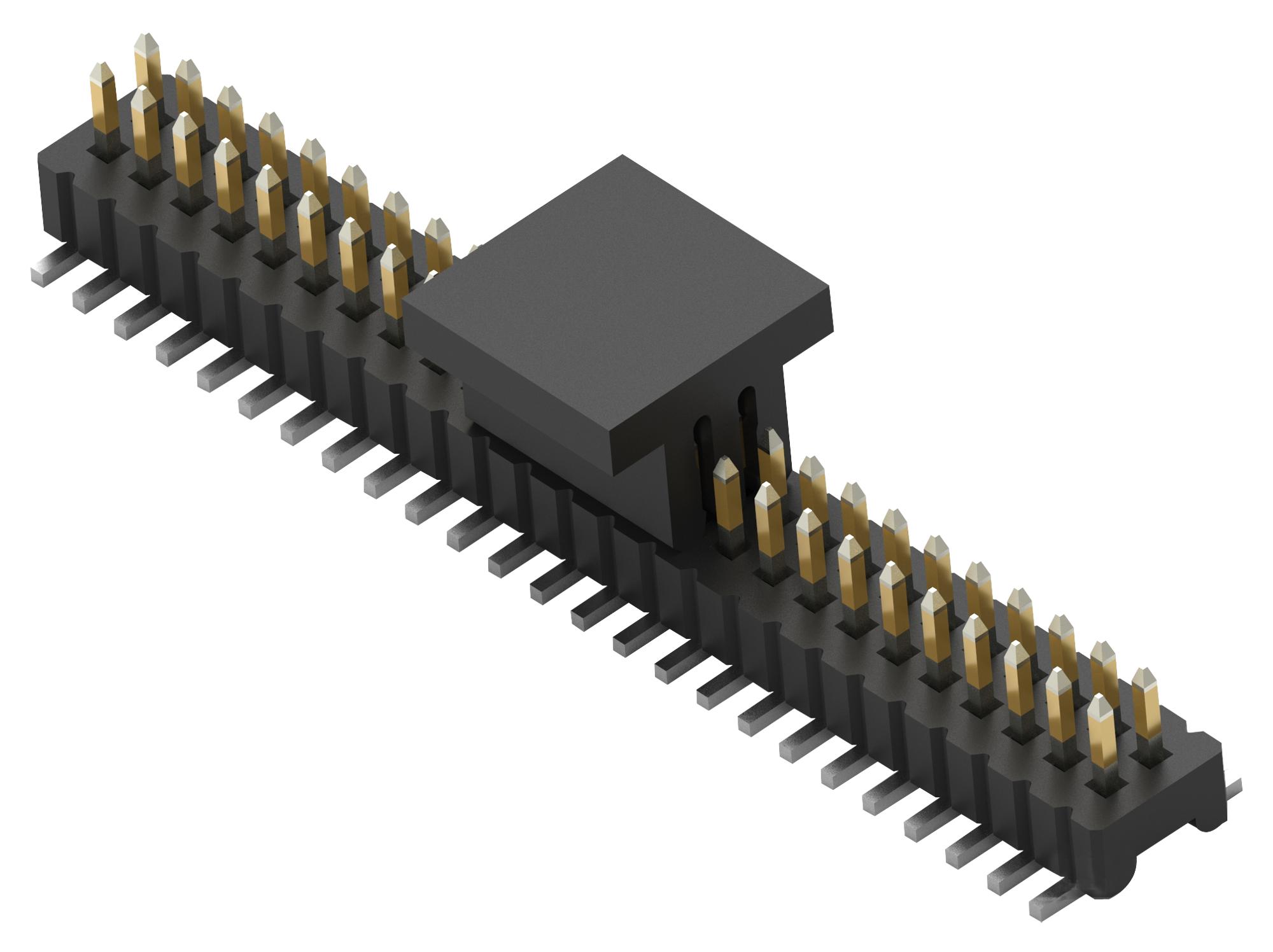

TE CONNECTIVITY 223319285 Small Centerline Connector
TE Connectivity's AMPMODU Small Centerline Interconnection Systems are compact, 1.0 mm pitch connectors designed for high-density PCB layouts, offering up to 85% space savings compared to standard 2.54 mm pitch connectors. These connectors feature dual-beam contacts ensuring reliable electrical connections even under severe shock and vibration conditions. They support automated surface mounting with pick and place caps and are available with gold plating for enhanced durability and corrosion resistance. Suitable for industrial controls, automation, telecommunication, robotics, and instrumentation applications, they support reflow soldering and operate within -55°C to +125°C temperature range.
TE CONNECTIVITY 223319285 Small Centerline Connector Specifications:
- Centerline: 1.0 mm [0.0394"]
- Housing Material: High-temperature thermoplastic (LCP)
- Mounting Style: Surface mount
- Contact Material: Copper alloy with gold flash plating up to 306; 0.76 um
- Receptacle Entry: Dual entry
- Operating Voltage: 30VAC
- Current Rating: 14A max per contact, 0.8A recognized at CSA
- UL Recognition: 1.0A, dielectric withstand voltage 300VAC
- Operating Temperature: -55°C to +125°C
- Soldering: Re-flow capable up to 260°C
- Vibration Resistance: Meets E1A-364-28 standards
Buy the Buy TE Connectivity AMPMODU Small Centerline Part Number 223319285 Online
Order the TE Connectivity Small Centerline Connector online today to benefit from high-density PCB design, reliable electrical contact, gold plating for corrosion resistance, and reflow-solderable features suitable for industrial automation, controls, telecommunication, and robotics. This compact connector saves space by offering 85% more board area efficiency compared to standard connectors. Its dual-beam contact design ensures stable signal transfer in harsh environments. Manufactured with high-temperature thermoplastic and copper alloy contacts, it provides robust performance, easy surface mounting, and long-lasting durability in temperature ranges from -55°C to +125°C, supporting your complex electronic applications.
Get TE Connectivity AMPMODU Small Centerline, high-density connector for reliable and space-saving PCB connections today—designed for durability and precision.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 223319285?
You can click on the BUY or RFQ button to purchase 223319285 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 223319285?
You can download the 223319285 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 223319285?
TE CONNECTIVITY
