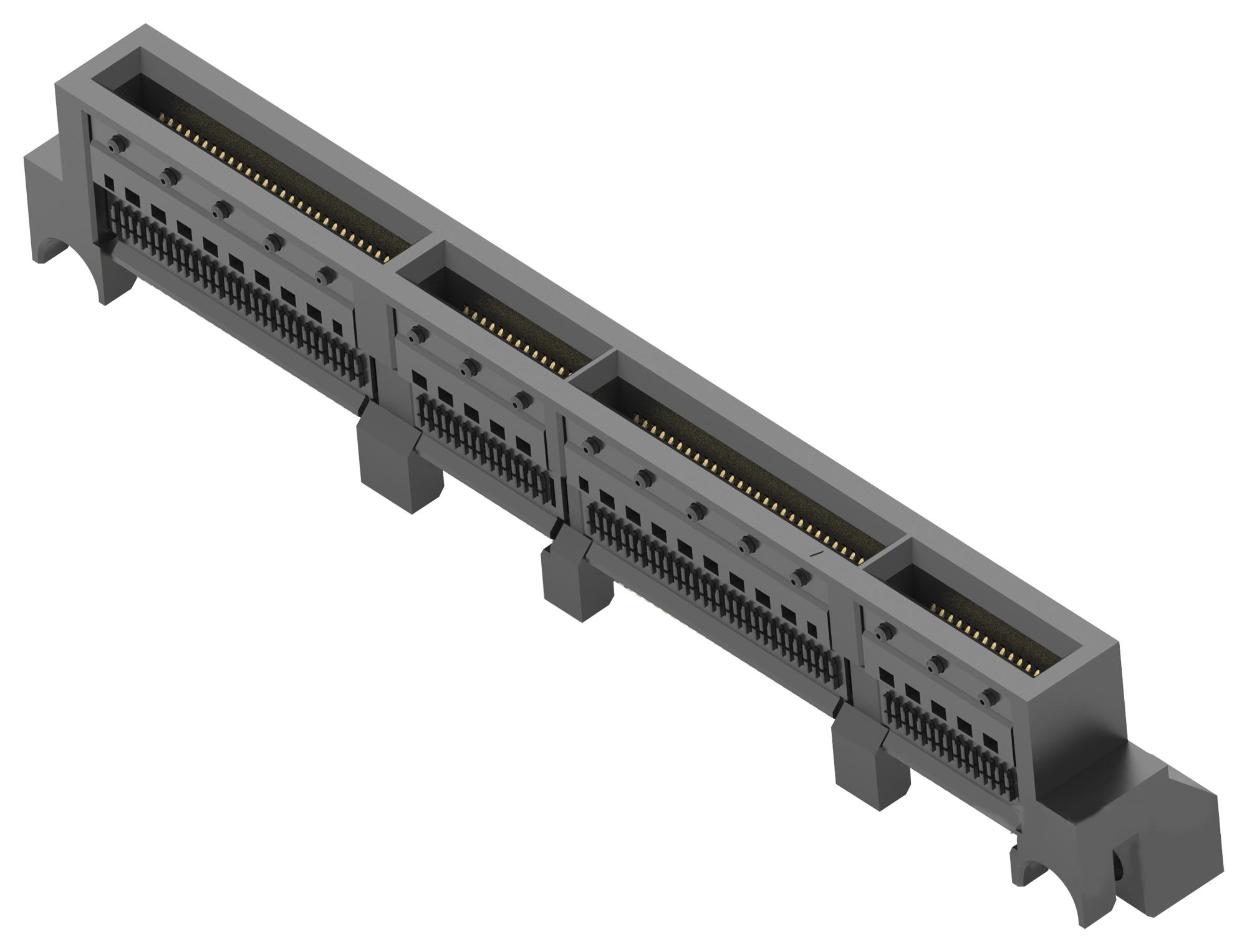

TE CONNECTIVITY 223403211 High-Speed Interconnect
The Sliver internal cabled interconnect solution offers high-density, high-speed connectivity with a 0.6mm pitch, supporting up to 112G and compatible with protocols like PCIe Gen 5, SAS, Ethernet, and InfiniBand. It features vertical, right angle, and card edge configurations with active latches for secure connections, designed for data centers, servers, switches, and HPC applications. Its modular design allows easy scalability, low cost, and elimination of re-timers. Ideal for high-performance networking and storage solutions requiring reliable, flexible, and space-efficient interconnects.
TE CONNECTIVITY 223403211 High-Speed Interconnect Specifications:
- Pitch: 0.6mm
- Supports data rates up to 112G
- Cable: 33AWG low-loss, high-speed cable
- Configurations: vertical, right angle, card edge
- Impedance: 85 and 100 ohm
- Mating options include active latch for security
- Supports diverse protocols: PCIe Gen 5, SAS, Ethernet, InfiniBand
- Modular design allows scalable lane configurations (x4/x8)
- Connector housing: robust metal with active latch design
- Mechanical support for high-density applications
- Compatible with SFF-TA-1002 standard
- Applications: data centers, servers, high-performance computing, storage, network equipment.
- Part number: 223403211
Buy the Buy TE Connectivity Sliver Internal Cabled Part Number 223403211 Online
Enhance your data center, server, or networking project with the TE Connectivity Sliver high-speed interconnect, supporting protocols like PCIe Gen 5 up to 112G. With modular, space-saving design in vertical, right angle, and card edge configurations, it provides secure connections and high-density routing. This robust solution simplifies design, reduces costs by eliminating re-timers, and supports current and future high-speed data requirements, ensuring reliable performance in demanding applications.
Order your TE Connectivity Sliver internal cabled interconnect with part number 223403211 today and enhance your high-speed data center and server connectivity with reliable, space-efficient solutions.
