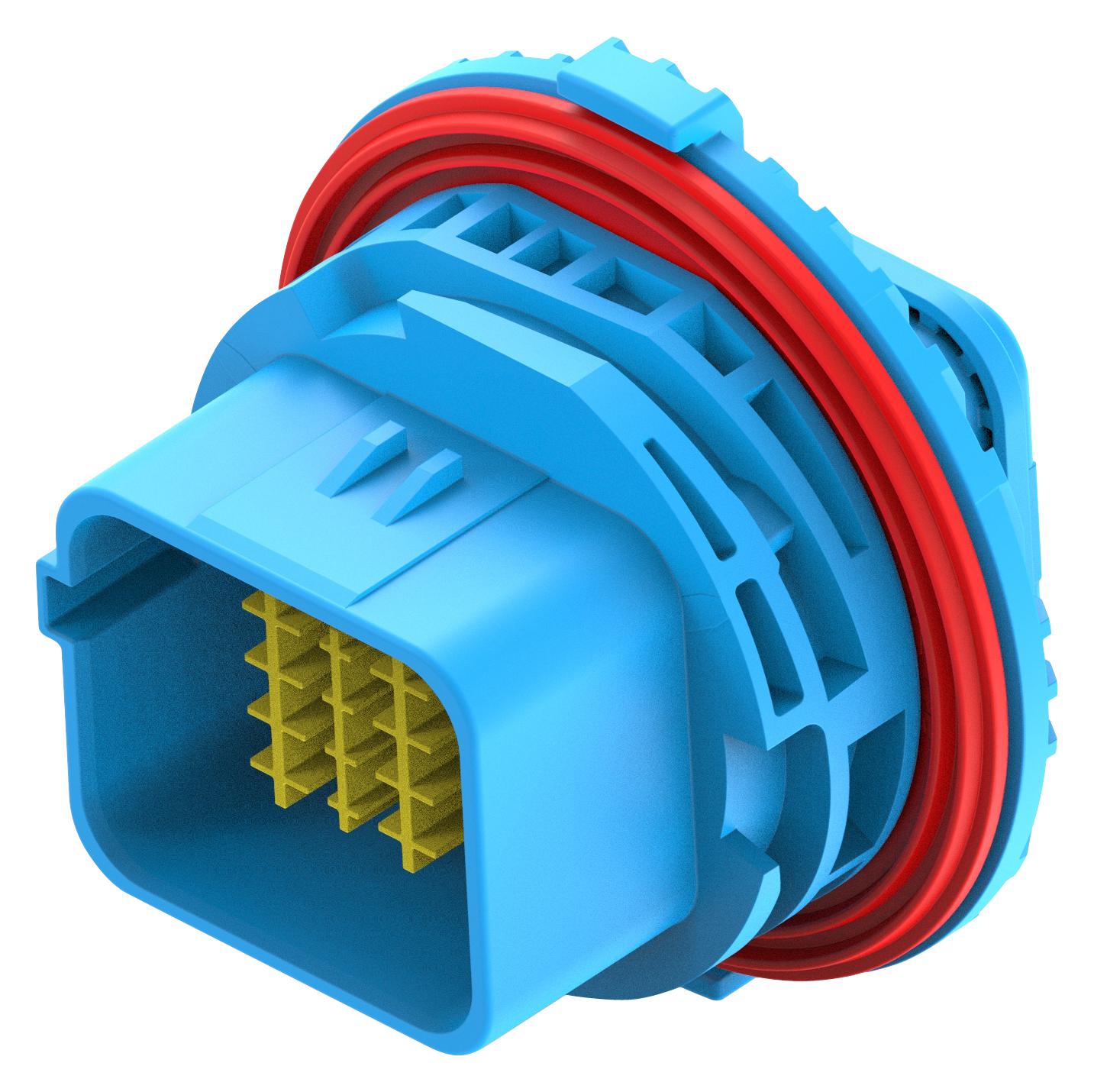

TE CONNECTIVITY 223508914 High-Density Sealed Connector
Providing flexible and robust wire-to-wire connectivity in a compact form factor, TE Connectivity's innovative 20-position high-density hybrid sealed connector utilizes the proven DEUTSCH common contact system for reliable service in harsh environments. Designed to withstand extreme temperatures and engine-level vibrations, this connector features integrated Terminal Position Assurance (TPA) and Connector Position Assurance (CPA), enabling quick and easy installation and repair without additional tools or parts. It offers design flexibility with hybrid contact arrangements and flange mount options. The connector uses high-performance DEUTSCH size 16 and 20 common contacts, includes color-coded options to prevent mis-mating, and features a clean, tang-less contact body for easy installation and maintenance.
TE CONNECTIVITY 223508914 High-Density Sealed Connector Specifications:
- Number of positions: 20
- Connector type: High-density sealed connector
- Contact System: DEUTSCH size 16 and 20 common contacts
- Contact Material: Copper alloy, tin-plated
- Sealing: Hybrid seal for environmental resistance
- Temperature Range: -55°C to +105°C
- Vibration Resistance: Engine-level vibrations
- Features: Integrated Terminal and Connector Position Assurance (TPA & CPA)
- Mounting Options: Flange mount
- Color-coded options to prevent mis-mating
- Design: Tang-less contact body for easy insertion and maintenance
- Housing Material: High-strength thermoplastic
- Application: Reliable wire-to-wire connections in harsh environments
- Installation: Quick to install and repair without extra tools
- Physical Dimensions: Compact form factor for space-constrained applications
Buy the TE Connectivity Series High-Density 20 Position Hybrid Connector: 223508914
Order the TE Connectivity high-density sealed connector with 20 positions today online to ensure dependable, rugged wiring solutions for your industrial and automotive applications. This compact connector features hybrid contact arrangements, integrated TPA and CPA for easy engagement and secure connection. Designed to withstand extreme temperatures, vibrations, and environmental exposure, it provides a quick installation process without additional tools. Reliable, durable, and easy to maintain, this connector is ideal for harsh conditions requiring precise and secure wire-to-wire connectivity.
Buy TE Connectivity 223508914 high-density sealed connector now and experience unmatched reliability and performance in harsh environments.
