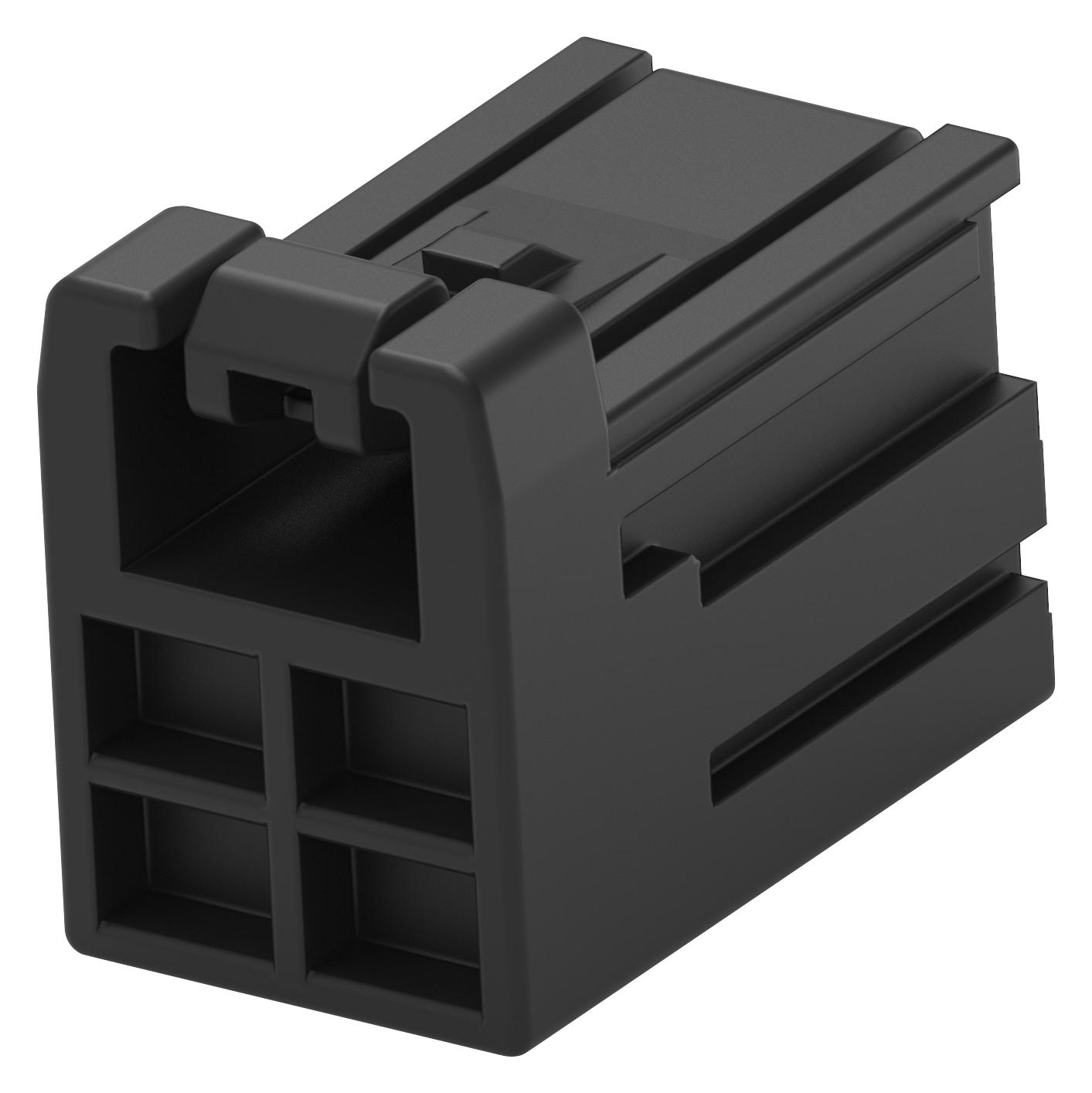

TE CONNECTIVITY 223665154 Wire-to-Wire Connector
The Dynamic D1000 slim wire-to-wire connector is specifically designed for narrow spaces in small industrial equipment and machinery. It is 80% smaller than the D1200 series, featuring a robust locking mechanism and keying to ensure secure connections and prevent accidental disconnection. Ideal for robotics, small industrial robots, collaborative robots, AGVs, and sensors, it provides reliable performance with a maximum voltage of 250V AC/DC and withstands voltages up to 1,500VAC. Made from UL 94V-0 thermoplastic with copper alloy contacts, it operates reliably across temperatures of -55°C to +125°C, offering easy, quick mating and crimping for efficient installation.
TE CONNECTIVITY 223665154 Wire-to-Wire Connector Specifications:
- Applicable wire size: AWG #22 to #30
- Housing Material: Thermoplastic, UL 94V-0, black
- Contact Material: Copper alloy
- Temperature Rating: -55°C to +125°C
- Current Rating: 4.5A/pos at 4x AWG #22, max temperature rise 30°C
- Voltage Rating: AC/DC 250V max
- Withstand Voltage: AC 1,500 V for 1 minute
- Locking and keying features improve connection reliability
- Size reduction: 80% smaller than D1200 series
- Easy mating and crimping process for quick installation
- Application: Robotics, industrial sensors, AGVs, servo motors
Buy the TE Connectivity 23665154 – Reliable Wire-to-Wire Connector for Industrial Applications
Purchase the TE Connectivity wire-to-wire connector online today to ensure reliable and secure connections in your small industrial equipment. Its compact size fits into narrow spaces, making installation quick and easy. Crafted from UL 94V-0 thermoplastic with copper alloy contacts, it withstands temperatures from -55°C to +125°C and handles up to 4.5A per contact at 250V. Designed with locking and keying features, this connector prevents accidental disconnection and is ideal for robotics, sensors, and AGVs, providing durable and dependable performance in demanding environments.
Order your TE Connectivity Series 23665154 wire-to-wire connector today and enhance your industrial equipment with its compact design and reliable performance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 223665154?
You can click on the BUY or RFQ button to purchase 223665154 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 223665154?
You can download the 223665154 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 223665154?
TE CONNECTIVITY
