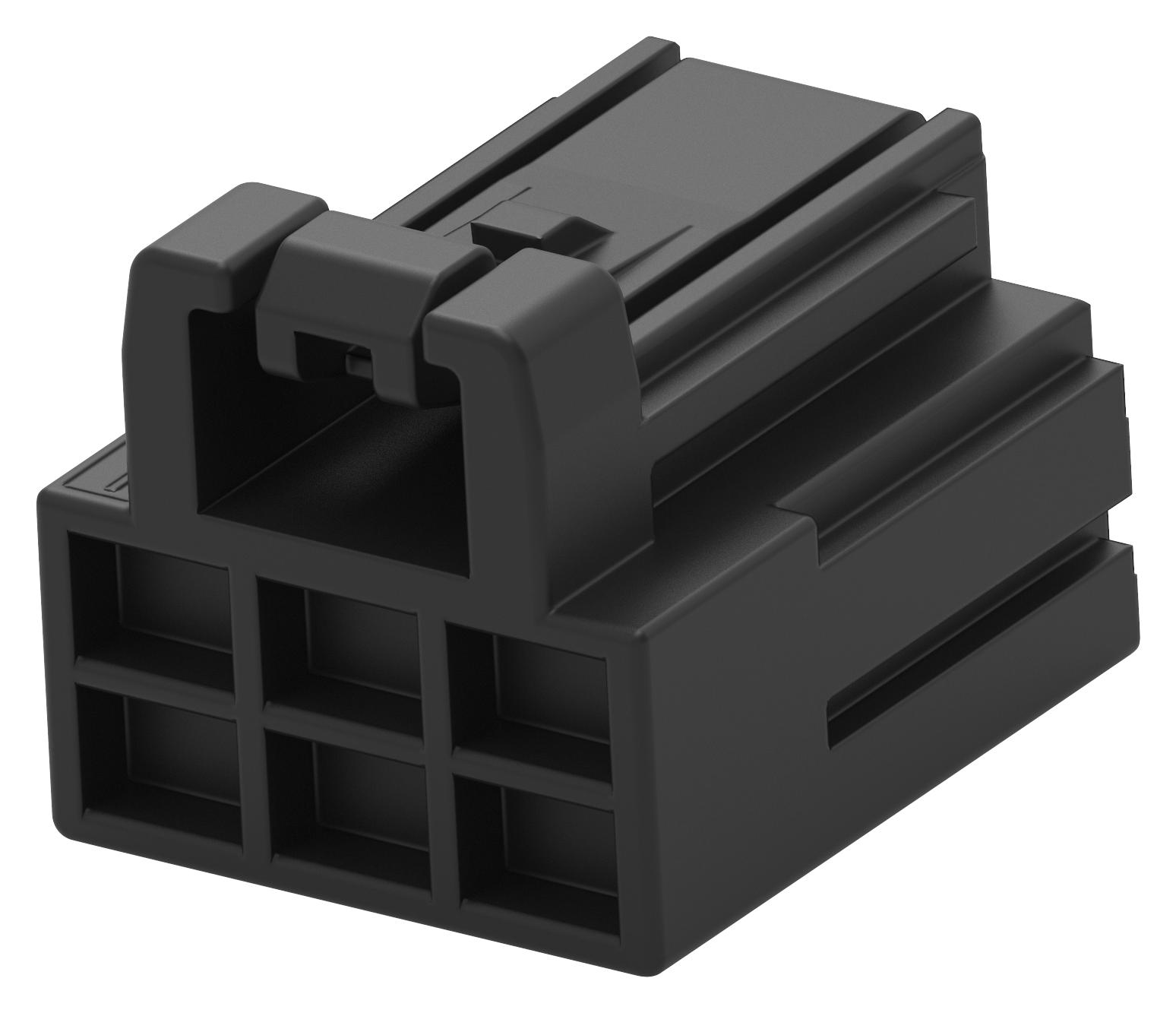

TE CONNECTIVITY 223665156 Wire-to-Wire Connector
The Dynamic D1000 slim wire-to-wire connector is designed for use in narrow spaces within small industrial equipment and machinery. It is 80% smaller than the D1200 series, offering a compact, streamlined design with low interference risk. Features include keying and locking mechanisms that ensure reliable connection, prevent unintentional disconnection, and reduce lever breakage in tight spaces such as robotic arms. Suitable for applications in robotics, small industrial robots, collaborative robots, AGVs, servo motors, and sensors. It supports up to 250V AC/DC, withstands 1,500VAC for 1 minute, and is housed in UL 94V-0 rated black thermoplastic. Made with copper alloy contacts and operable within -55°C to +125°C temperature range.
TE CONNECTIVITY 223665156 Wire-to-Wire Connector Specifications:
- Applicable wire size: AWG #22 to #30
- Material: Thermoplastic UL 94V-0, black
- Contact Material: Copper alloy
- Temperature Range: -55°C to +125°C
- Electrical Rating: 4.5A per position
- Voltage Rating: AC/DC 250V max
- Withstand Voltage: AC 1,500V for 1 minute
- Application: Robotics, small industrial robots, collaborative robots, AGVs, servo motors, sensors
- Size: 6-position receptacle housing with Y key
- Locking and keying for reliable connection
- Connector size: 80% smaller than D1200 series
Buy the Buy TE Connectivity Dynamic D1000 Slim Wire-to-Wire Part Number 223665156 Online
Purchase the TE Connectivity Dynamic D1000 slim wire-to-wire connector online today to benefit from its compact design, reliable locking, and broad application compatibility. This connector is ideal for tight spaces in small industrial equipment, robotics, and sensor systems. Features include a robust thermoplastic housing, copper alloy contacts, and a high voltage rating supporting up to 250V AC/DC. Withstanding temperatures from -55°C to +125°C and rated for 4.5A per pin, it ensures durable, secure connections for demanding industrial environments. Easy to install with quick mating and crimping process, making it perfect for efficient assembly and maintenance.
Buy TE Connectivity Dynamic D1000 slim wire-to-wire connector now and experience reliable space-saving connections in tight industrial spaces.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 223665156?
You can click on the BUY or RFQ button to purchase 223665156 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 223665156?
You can download the 223665156 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 223665156?
TE CONNECTIVITY
