TE CONNECTIVITY 22674405 Small Connector
TE Connectivity’s AMPMODU Small Centerline Interconnection System features 1.0 mm pitch connectors offering 85% space savings over standard 2.54 mm products. These connectors are ideal for industrial control, automation, robotics, and telecommunication applications. They support surface mount technology with gold flash plating for enhanced durability, corrosion resistance, and reliable electrical contact. The high-temperature thermoplastic housing enables reflow soldering at up to 260°C. Designed for board-to-board connections, they are RoHS and REACH compliant, ensuring safety and environmental standards are met. The connectors support up to 50 positions per row, suitable for compact, high-density PCB designs.
TE CONNECTIVITY 22674405 Small Connector Specifications:
- Centerline: 1.0 mm [0.0394”]
- Housing: high-temperature thermoplastic (LCP)
- Mounting style: surface mount
- Header/receptacle contact material: copper alloy
- Plating options: 30” [0.76 um] gold flash
- Receptacle entry: dual entry
- Operating temperature: -55°C to +125°C
- Reflow soldering capable up to 260°C
- Operating voltage: 30VAC
- Current rating: 14A max per contact for receptacle, 0.8A recognized at UL, 1.0A at UL
- Dielectric withstanding voltage: 300VAC
- Vibration: meets E1A-364-28, no electrical discontinuity over 1 microsecond
- Packaging: tubes with pick & place caps

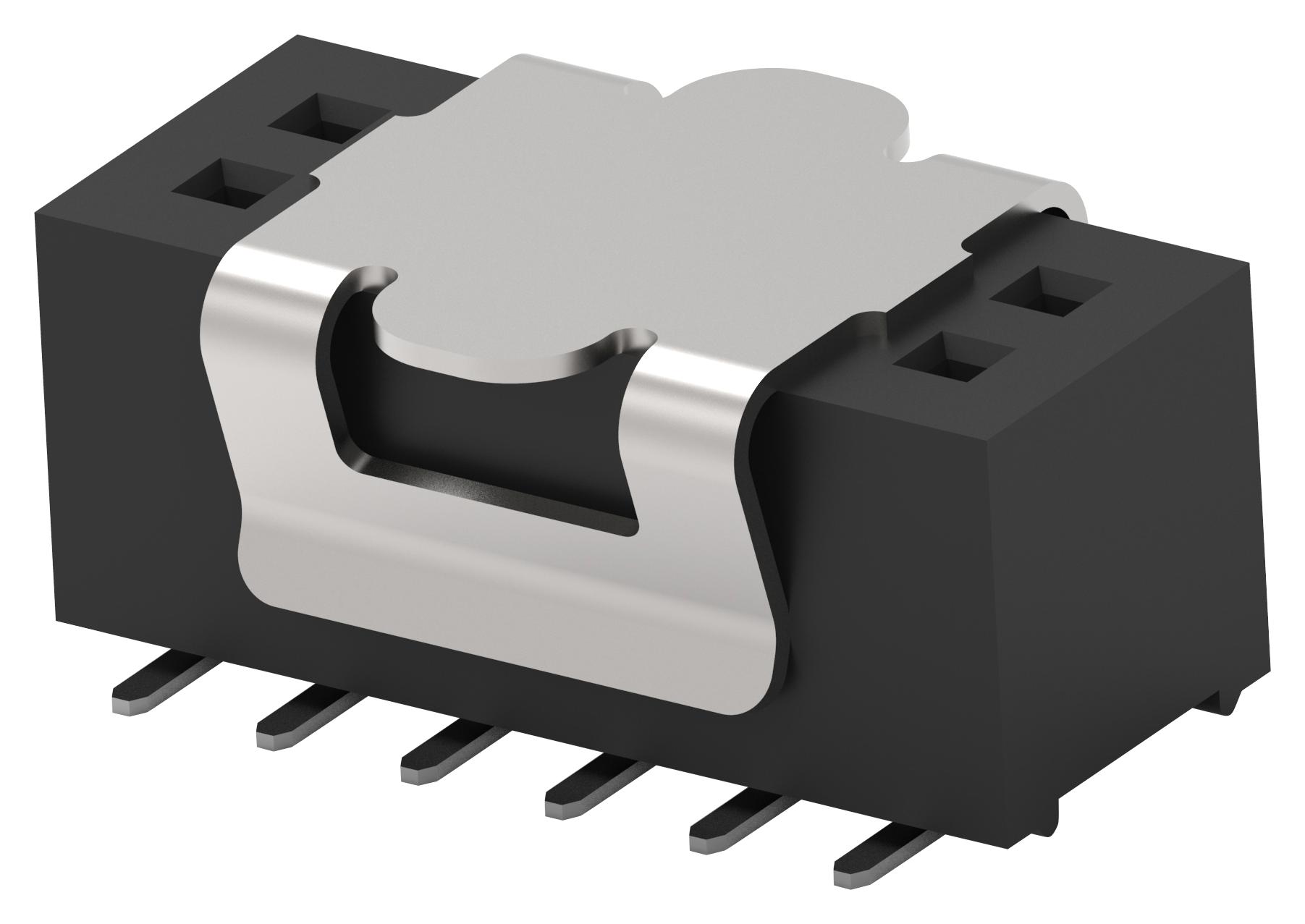

Buy the Buy TE Connectivity Small Centerline Interconnection System Part Number 22674405 Online
Secure your high-density PCB designs with TE Connectivity’s Small Centerline connector. Featuring a 1.0 mm pitch, gold flash plating, and surface mount design, this compact connector offers reliable signal transfer and maximum space savings. Its durable thermoplastic housing withstands high temperatures for reflow soldering up to 260°C, making it perfect for automation, industrial controls, and telecommunication systems. RoHS and REACH compliant, it supports up to 50 positions per row, providing flexibility in compact electronic assemblies. Order online today for fast, dependable delivery.
Order your TE Connectivity Small Centerline connector part number 22674405 today and ensure reliable, space-efficient connections for your high-density PCB projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 22674405?
You can click on the BUY or RFQ button to purchase 22674405 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 22674405?
You can download the 22674405 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 22674405?
TE CONNECTIVITY
