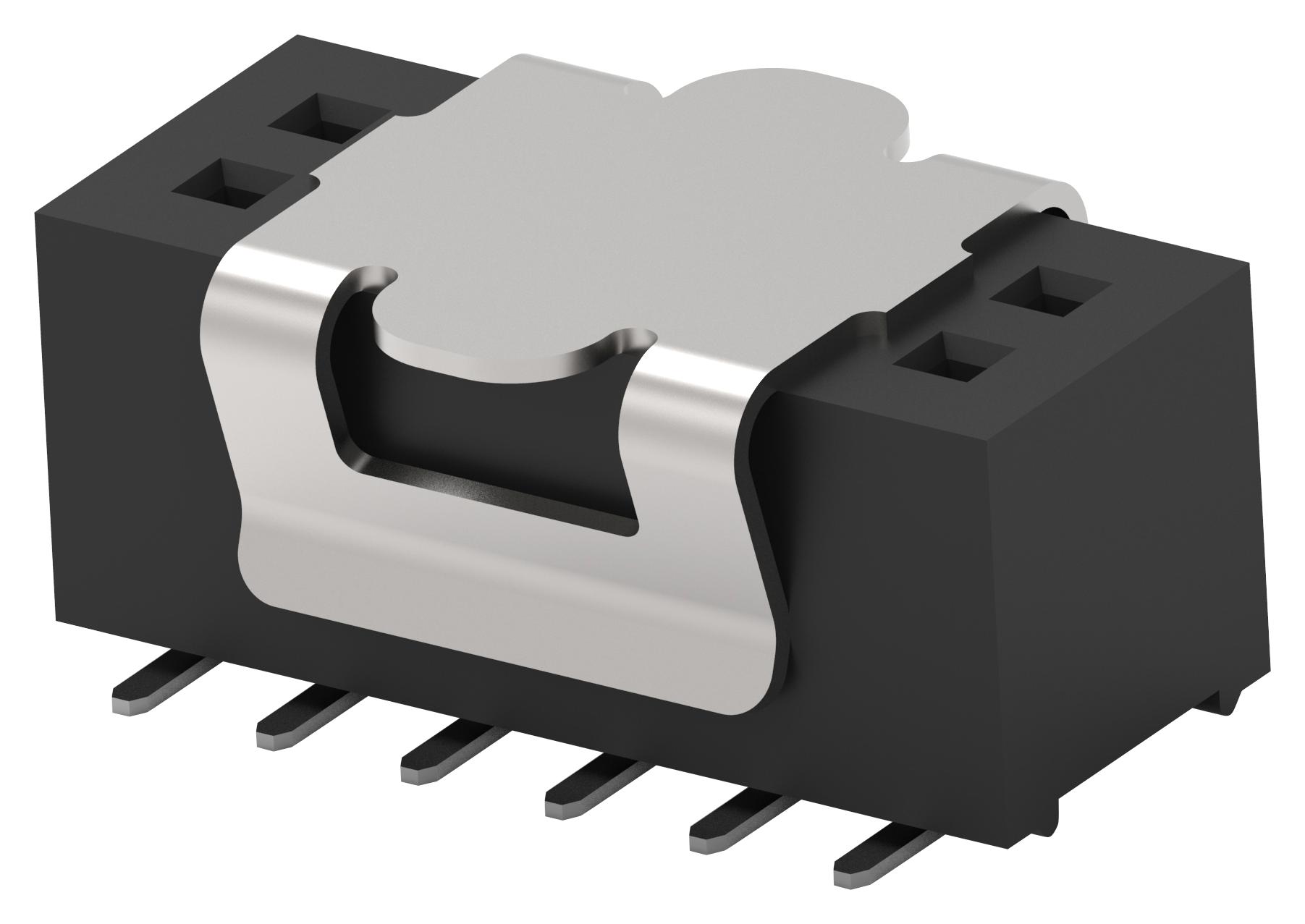

TE CONNECTIVITY 22674406 Interconnection System
TE's AMPMODU Small Centerline Interconnection System features 1.0 mm pitch connectors that save 85% space compared to standard 2.54 mm units. Designed for high reliability, its dual-beam contact ensures consistent electrical connections even under shock and vibration conditions. Suitable for automated manufacturing, it supports surface mounting with pick and place caps, offers gold flash plating for enhanced durability, and accommodates up to 50 positions per row. Made with high-temperature thermoplastic (LCP), it is RoHS and REACH compliant, with a voltage rating of 30VAC and operation in temperatures from -55°C to +125°C.
TE CONNECTIVITY 22674406 Interconnection System Specifications:
- Centerline: 1.0 mm [0.0394”]
- Housing: high-temperature thermoplastic (LCP)
- Mounting style: surface mount
- Header/receptacle contact material: copper alloy
- Plating options: 30” [0.76 um] gold flash
- Receptacle entry: dual entry
- Operating temperature: -55°C to +125°C
- Current rating: 14A max per contact
- Operating voltage: 30VAC
- Dielectric withstanding voltage: 300VAC
- Solderability: re-flow capable up to 260°C
- Packaging: tubes with pick & place caps
- Connector size: double row, 5-50 positions per row
- RoHS and REACH compliant
- UL recognized at 1.0A, CSA recognized at 0.8A
Buy the TE Connectivity Series AMPMODU Small Centerline: 22674406
Order TE Connectivity's AMPMODU Small Centerline Interconnection System online today to enjoy reliable, space-efficient PCB connections. Designed for industrial automation, building controls, robotics, and telecommunication equipment, these connectors provide high durability with gold plating, re-flow compatibility, and dual-entry receptacles. Their compact 1.0 mm pitch saves significant board space while ensuring excellent electrical contact even in severe shock and vibration environments. Perfect for automated manufacturing with surface mount capability, they are RoHS and REACH compliant, guaranteeing quality and environmental safety for your projects.
Buy TE Connectivity AMPMODU Small Centerline connector now and experience unmatched reliability, space savings, and ease of automated assembly.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 22674406?
You can click on the BUY or RFQ button to purchase 22674406 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 22674406?
You can download the 22674406 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 22674406?
TE CONNECTIVITY
