TE CONNECTIVITY 22674408 Small Centerline Connector
TE Connectivity's AMPMODU Small Centerline Interconnection Systems feature 1.0 mm pitch connectors that achieve 85% space savings compared to standard 2.54 mm pitch connectors. Designed for reliable signal transfer even in severe shock and vibration environments, these connectors support automated surface mounting with pick and place caps. Made from high-temperature thermoplastic, with copper alloy contacts plated in gold, they support a wide range of industrial and automation applications, offering multiple position options up to 100, with robust electrical and mechanical performance in extreme temperatures.
TE CONNECTIVITY 22674408 Small Centerline Connector Specifications:
- Centerline: 1.0 mm [0.0394"]
- Housing: high-temperature thermoplastic (LCP)
- Mounting style: surface mount
- Header/receptacle contact material: copper alloy
- Plating options: 30" [0.76 um] gold flash or unshrouded gold
- Receptacle entry: dual entry
- Operating temperature: -55°C to +125°C
- Operating voltage: 30VAC
- Current rating: 14A max per contact; 0.8A recognized at CSA, 1.0A at UL
- Solderability: re-flow capable up to 260°C
- Dielectric withstanding voltage: 300VAC
- Vibration: Meets E1A-364-28 standards with no electrical discontinuity greater than 1 microsecond

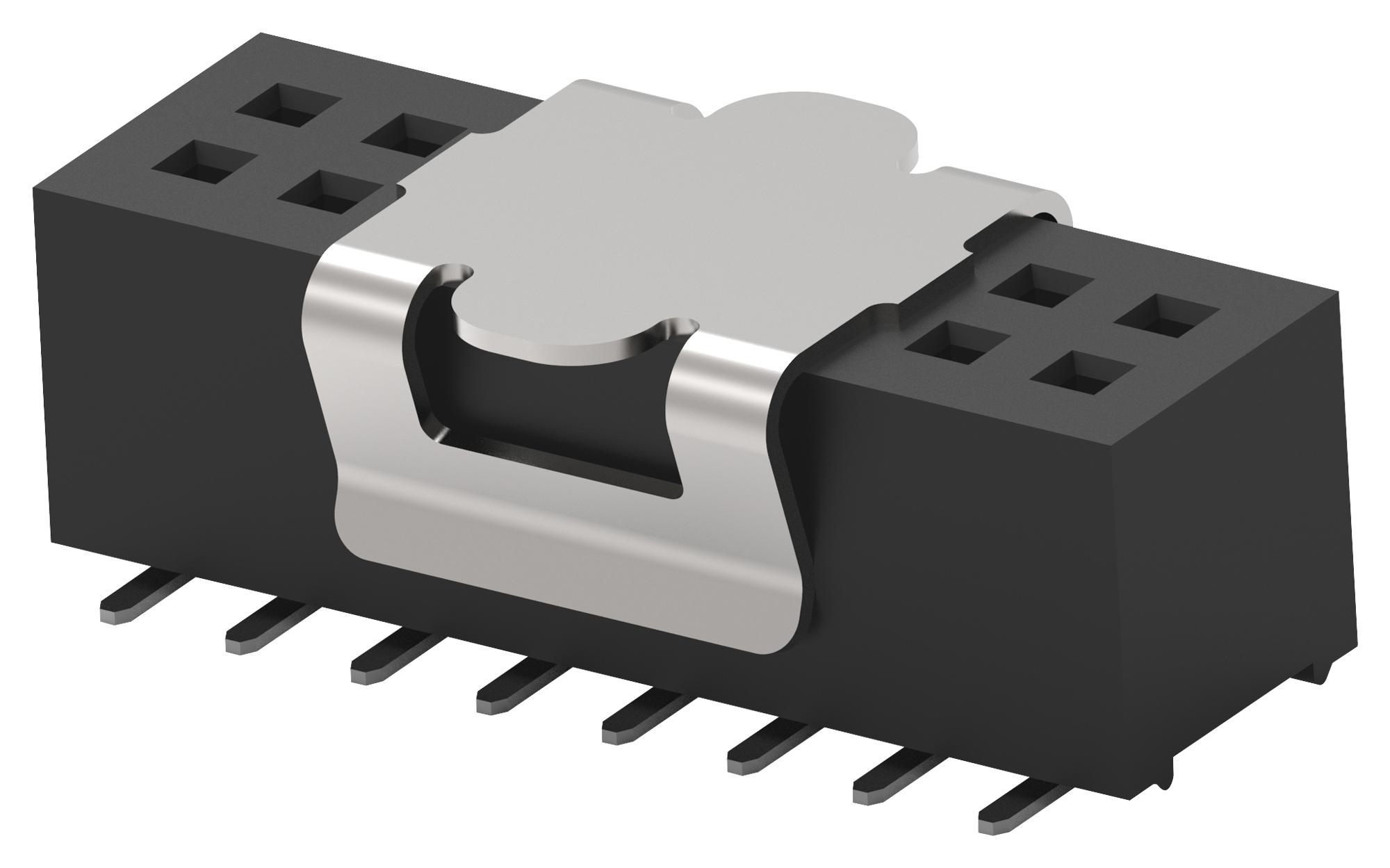

Buy the TE Series Small Centerline Interconnection Systems: 22674408
Enhance your industrial and automation systems with TE's Small Centerline Connector designed for space-saving, reliable signal transfer, and robust performance. Suitable for automated PCB assembly, these connectors feature a 1.0 mm pitch and dual-beam contacts with gold plating for corrosion resistance. Made from high-temperature thermoplastic, they operate within -55°C to +125°C, supporting voltages up to 30VAC and currents up to 14A per contact. Perfect for PLCs, robotics, telecommunication gear, and building automation, ensuring durability and easy reflow mounting.
Order your TE Series Small Centerline Interconnection Systems 22674408 today and give your industrial automation projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 22674408?
You can click on the BUY or RFQ button to purchase 22674408 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 22674408?
You can download the 22674408 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 22674408?
TE CONNECTIVITY
