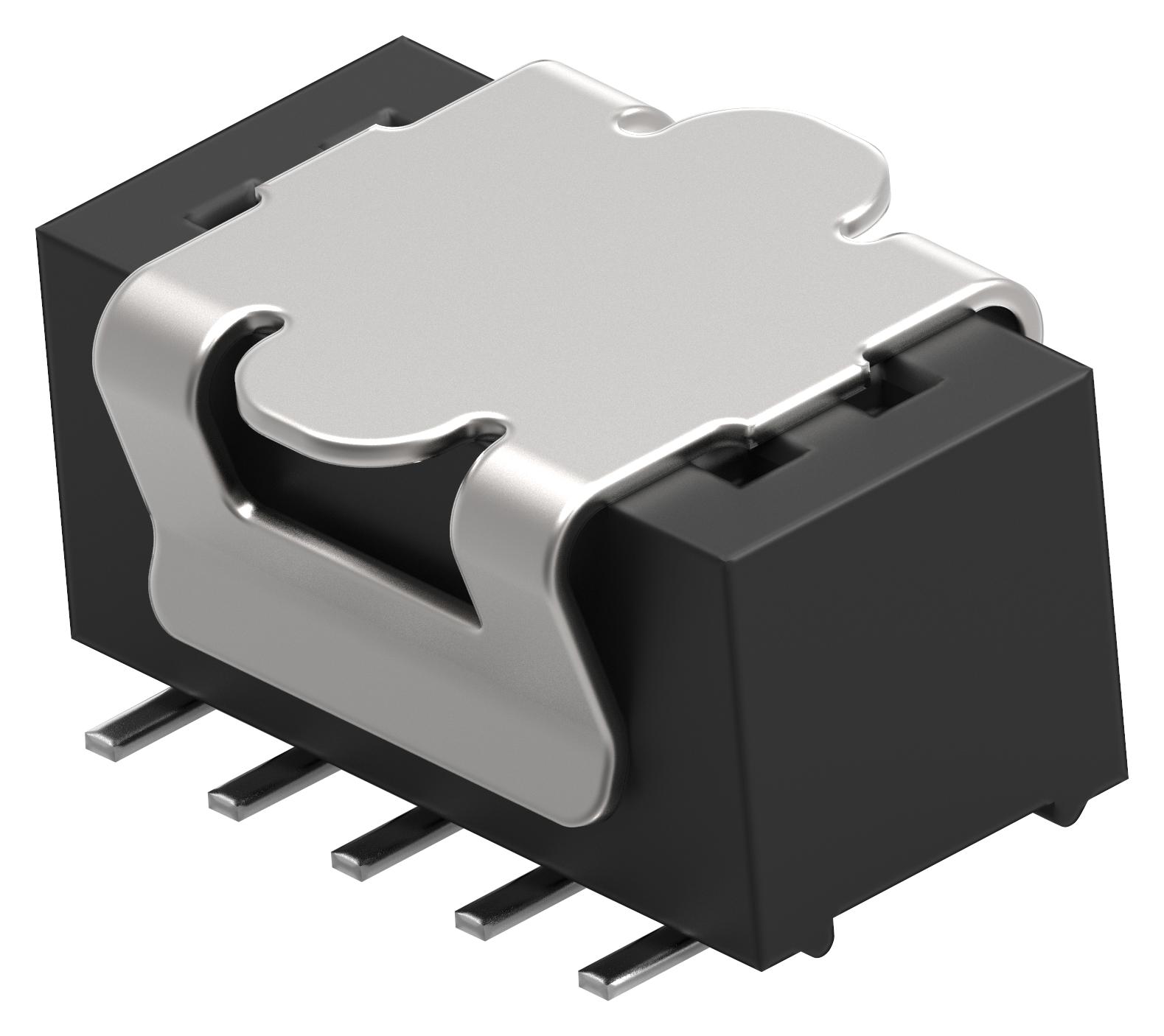

TE CONNECTIVITY 22674655 Miniature Connector
TE Connectivity’s AMPMODU Small Centerline Interconnection Systems are compact, high-density connectors with 1.0 mm pitch, ideal for space-saving PCB layouts in industrial automation, robotics, and communication devices. Featuring dual-beam contacts with gold flash plating, these surface-mount connectors support automated assembly, with high temperature thermoplastic housings for durability. They operate up to 260°C reflow soldering, withstand -55°C to +125°C, and handle voltages up to 30VAC. Suitable for high-reliability connections in severe shock and vibration conditions, they offer flexible configurations from 5 to 50 positions per row and multiple plating options.
TE CONNECTIVITY 22674655 Miniature Connector Specifications:
- Pitch: 1.0 mm (0.0394")
- Housing Material: high-temperature thermoplastic (LCP)
- Contact Material: copper alloy with 30" gold plating or 5" gold flash
- Mounting Style: surface mount, vertical
- Number of rows and positions: 5-50 per row, double row
- Operating Temperature: -55°C to +125°C
- Reflow Soldering: up to 260°C
- Voltage Rating: 30VAC maximum
- Current Rating: 0.8A to 1.0A depending on configuration
- Dielectric Withstanding Voltage: 300VAC
- RoHS and REACH compliant
- Packaging: tubes with pick & place caps
- Vibration Resistance: no electrical discontinuity greater than 1 microsecond
- Certifications: UL recognized at 1.0A, CSA recognized at 0.8A
Buy the TE Connectivity 22674655 – Reliable Miniature PCB Connectors for Industrial Applications
Enhance your electronic assembly with TE Connectivity’s Miniature Connector, designed for space-efficient, reliable PCB connections in demanding environments. Features include high-temperature thermoplastic housings, dual-beam gold-plated contacts, and compatibility with automated surface-mount manufacturing. With up to 50 positions per row, these connectors support high-density designs for industrial automation, robotics, and telecommunication applications. They withstand harsh shock, vibration, and temperature extremes, ensuring durability and performance. Purchase online today to benefit from quick delivery, proven quality, and seamless integration into your electronic systems.
Order your TE Connectivity 22674655 series compact connectors today and ensure space-efficient, high-reliability PCB connections for automation and robotics projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 22674655?
You can click on the BUY or RFQ button to purchase 22674655 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 22674655?
You can download the 22674655 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 22674655?
TE CONNECTIVITY
