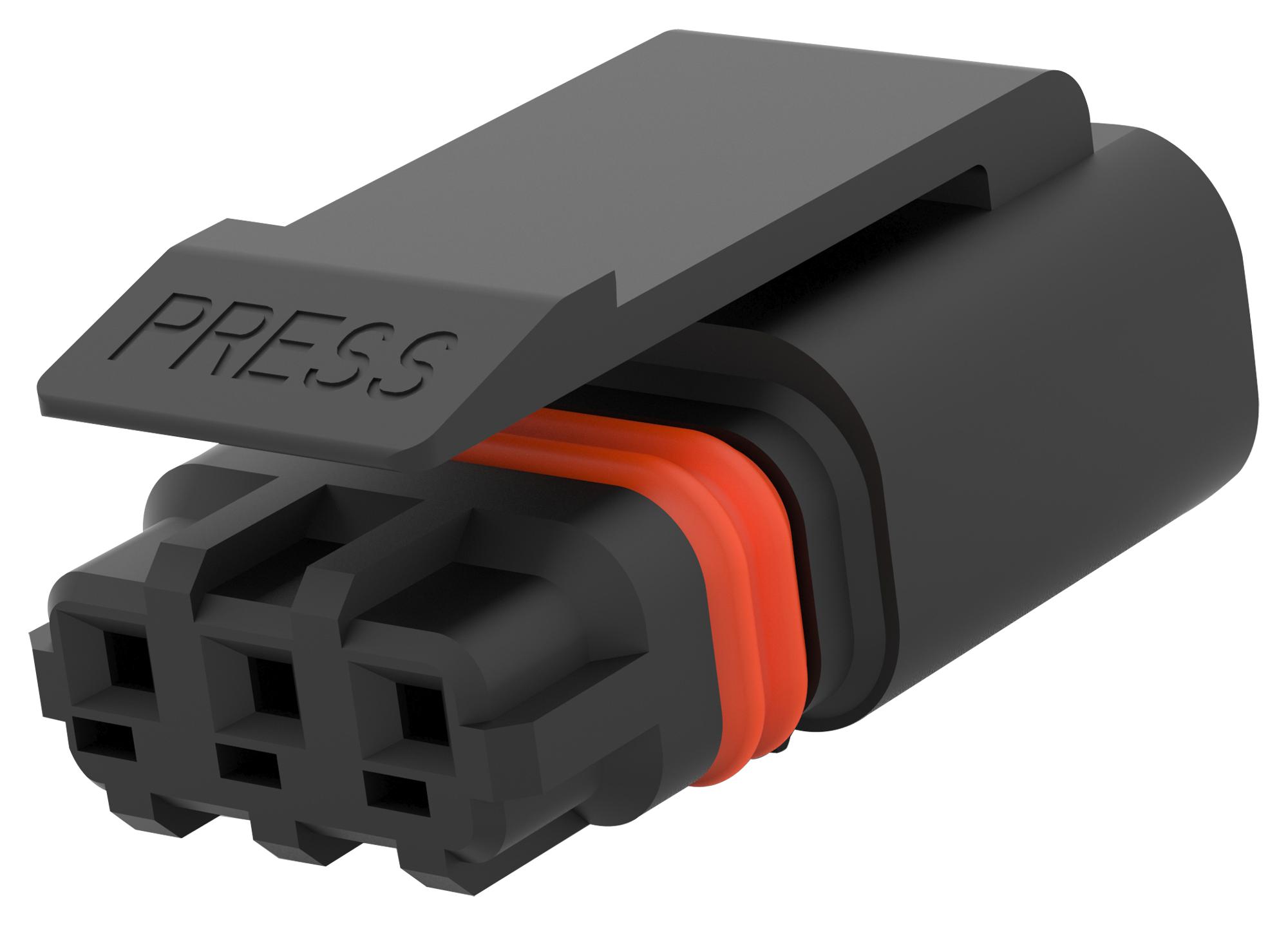

TE CONNECTIVITY 228340743 Waterproof Wire Connector
The Miniature IP67 Sealed Wire-to-Wire Connector by TE Connectivity is an outdoor, waterproof connector designed for high humidity environments and harsh conditions. It features a press-to-release spring latch for secure mating, pre-assembled seals for quick installation, and a compact size to save space. Suitable for outdoor lighting, refrigeration, kitchen appliances, and HVAC systems, it supports up to 5A at 400V AC, with a dielectric withstand voltage of 1800VAC, and operates efficiently across -40°C to +105°C, ensuring dependable performance in demanding applications.
TE CONNECTIVITY 228340743 Waterproof Wire Connector Specifications:
- Application Specification: 114-137093
- Product Specification: 108-137093
- Housing Material: PA, UL 94 V-O
- Contact Material: Copper Alloy with Tin plating
- Seal Material: Rubber
- Current Rating: 18 AWG: 5A Max, 20-22 AWG: 3.5A Max
- Voltage Rating: 400V AC Max
- Dielectric Withstanding Voltage: 1800VAC
- Operating Temperature: -40°C to +105°C
- Durability: 30 cycles
- Sealing: Pre-assembled rubber seals
- Latch Type: Press-to-release spring latch
- Environments: Outdoor, high humidity, harsh conditions
Buy the TE Connectivity Miniature IP67 – Reliable Waterproof Connectors for Industrial Applications
Enhance your outdoor and industrial projects with TE's waterproof wire connector, rated IP67 for superior protection. Its compact design and secure press-to-release latch ensure quick, reliable assembly, making it perfect for outdoor lighting, refrigeration, and HVAC systems. Supported by UL approval, it withstands temperatures from -40°C to +105°C and handles up to 5A at 400V AC. Choose TE's miniature waterproof connector for durable, dependable connections in demanding environments, easily identifiable by color-coded options.
Order your TE Connectivity Series228340743 waterproof connector today and ensure your outdoor and high humidity projects have dependable sealing and secure connections.
