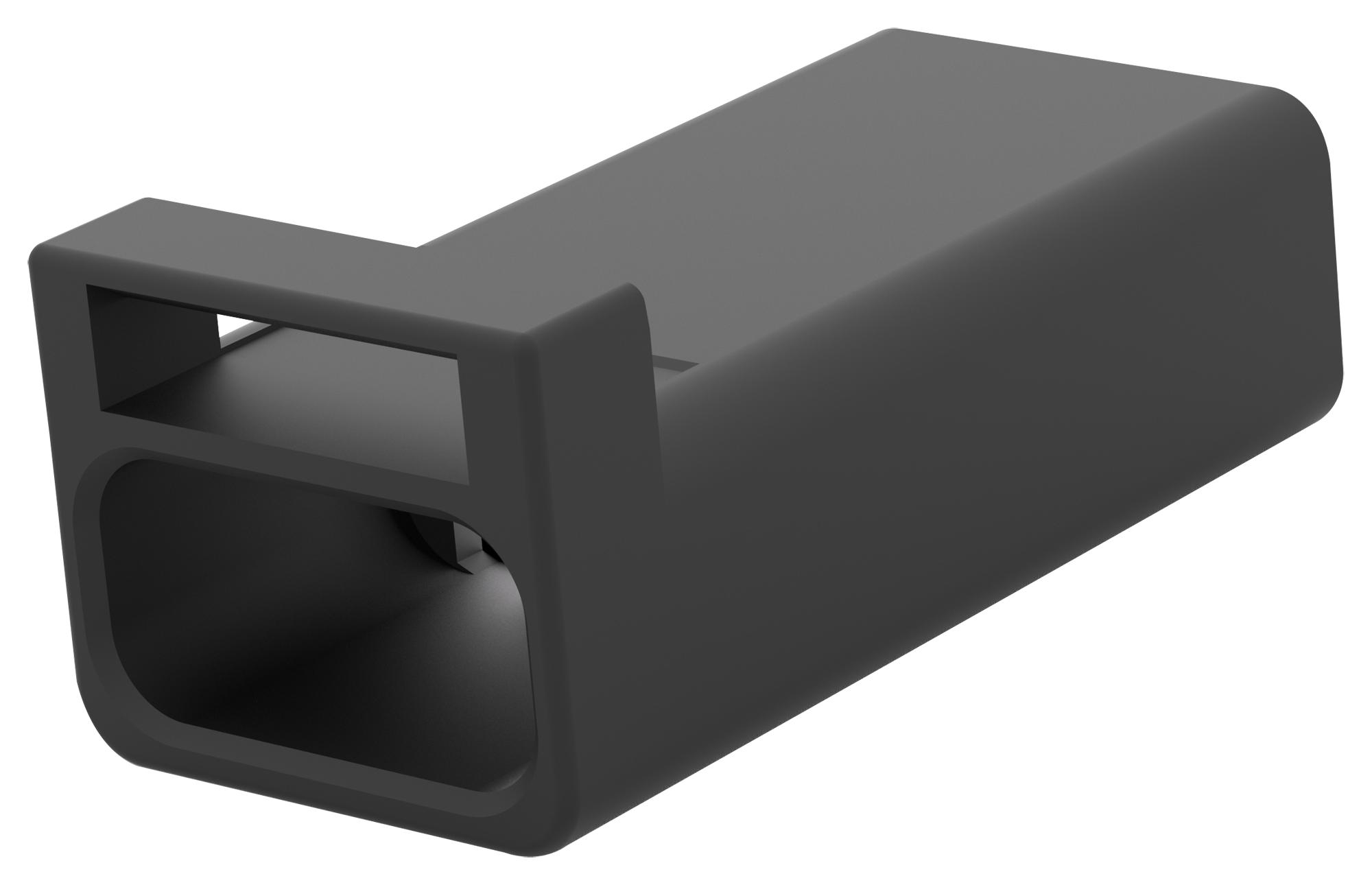

TE CONNECTIVITY 228340753 Sealed Wire Connector
The Miniature IP67 Sealed Wire-to-Wire Connector from TE Connectivity offers a compact, durable solution for outdoor lighting, refrigeration, HVAC, and kitchen appliances. Built to withstand harsh environments, it features a press-to-release latch, pre-assembled seals, and a rubber seal ensures waterproof connection. Rated at 5A for 18 AWG and 3.5A for 20-22 AWG, with a voltage of 400V AC, it operates efficiently from -40°C to +105°C. Made of UL 94 V-O rated PA housing, copper alloy contacts with tin plating, and rubber seals, it provides a reliable, long-lasting connection suitable for demanding applications.
TE CONNECTIVITY 228340753 Sealed Wire Connector Specifications:
- Current Rating: 18 AWG: 5A Max., 20-22 AWG: 3.5A Max.
- Voltage Rating: 400V AC Max.
- Dielectric Withstanding Voltage: 1800VAC
- Operating Temperature: -40°C to +105°C
- Durability: 30 cycles
- Housing Material: PA, UL 94 V-O
- Contact Material: Copper Alloy with Tin plating
- Seal Material: Rubber
- Application Specification: 114-137093
- Product Specification: 108-137093
- Approval Status: UL1977 in process
- Waterproof IP67 rating, press-to-release latch, pre-assembled seals, rubber seals, compact size, multiple color options
Buy the Buy TE Connectivity Miniature IP67 Sealed Wire-to-Wire Connector Part Number 228340753 Online
Enhance your outdoor and high-humidity applications with the TE Connectivity Sealed Wire Connector, designed for durability and reliable waterproof performance. Its compact size, press-to-release latch, and pre-assembled seals save installation time and ensure a secure connection. Rated at 5A and 400V AC, it withstands temperatures from -40°C to +105°C, making it ideal for outdoor lighting, refrigeration, HVAC, and kitchen appliances. Choose from multiple colors for easy identification and assembly, ensuring your projects are completed efficiently and reliably.
Order your TE Connectivity Miniature IP67 Sealed Wire-to-Wire Connector today and benefit from its waterproof design, robust performance, and easy installation for outdoor projects.
