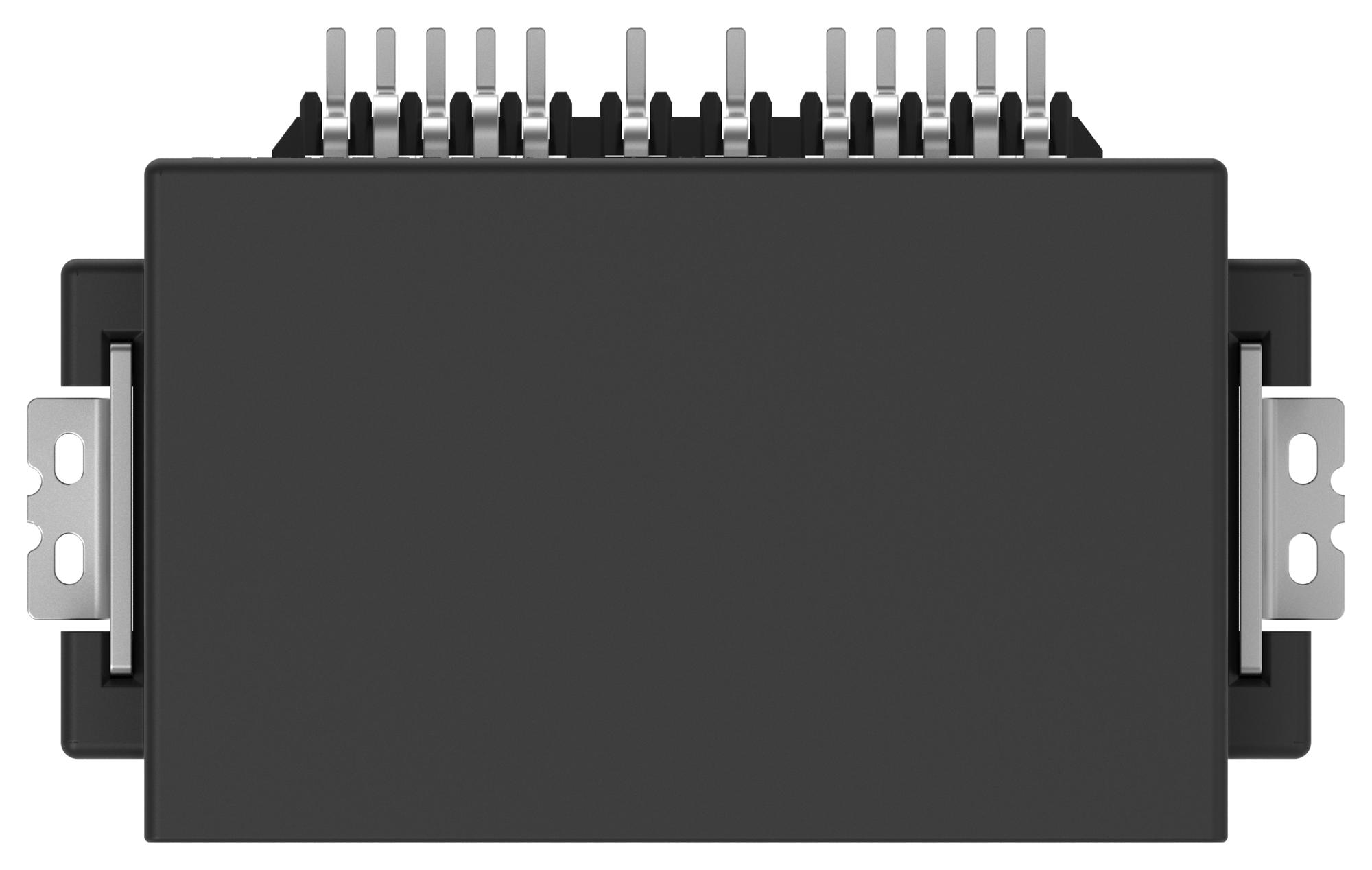

TE CONNECTIVITY 228344650 Dynamic Mini Series Connector
The Dynamic Mini Series connectors from TE Connectivity are designed for signal transmission on PCBs, providing a lower profile and valuable space savings compared to existing Dynamic D1000 connectors. These connectors offer high reliability thanks to their “second lock” design and protective latch concept, ensuring secure connections and preventing accidental unlatching. Applications include new energy systems, automation, machinery, robotics, servo drives, and process controllers. The connectors are suitable for SMT reflow assembly, reducing system costs and improving efficiency.
TE CONNECTIVITY 228344650 Dynamic Mini Series Connector Specifications:
- Rated Current: 3A
- Rated Voltage: 250V AC / 125V DC
- Withstand Voltage: 650V AC / 1000V DC
- AWG: 22-26
- Pitch: 1.80mm
- Durability: 30 cycles
- Position: 12, 16 & 20
- Operating Temperature: -40~125°C
- Contact: Copper alloy
- Plating: Tin over Nickel
- HDR Housing: Nylon
- Rec Housing: PBT
- Spacer: PBT
- Solder Peg: Copper alloy
- Product Specification: 108-137443
- Application Specification: 114-137527
- Nominal cross-section: 0.13-0.17 mm2
- Insulation DIA: 0.85-1.10 mm
Buy the 2-2834465-0 TE CONNECTIVITY Dynamic Mini Series Connector | myMectronic
Purchase the TE Connectivity 2-2834465-0 Dynamic Mini Series connector securely and efficiently online.
