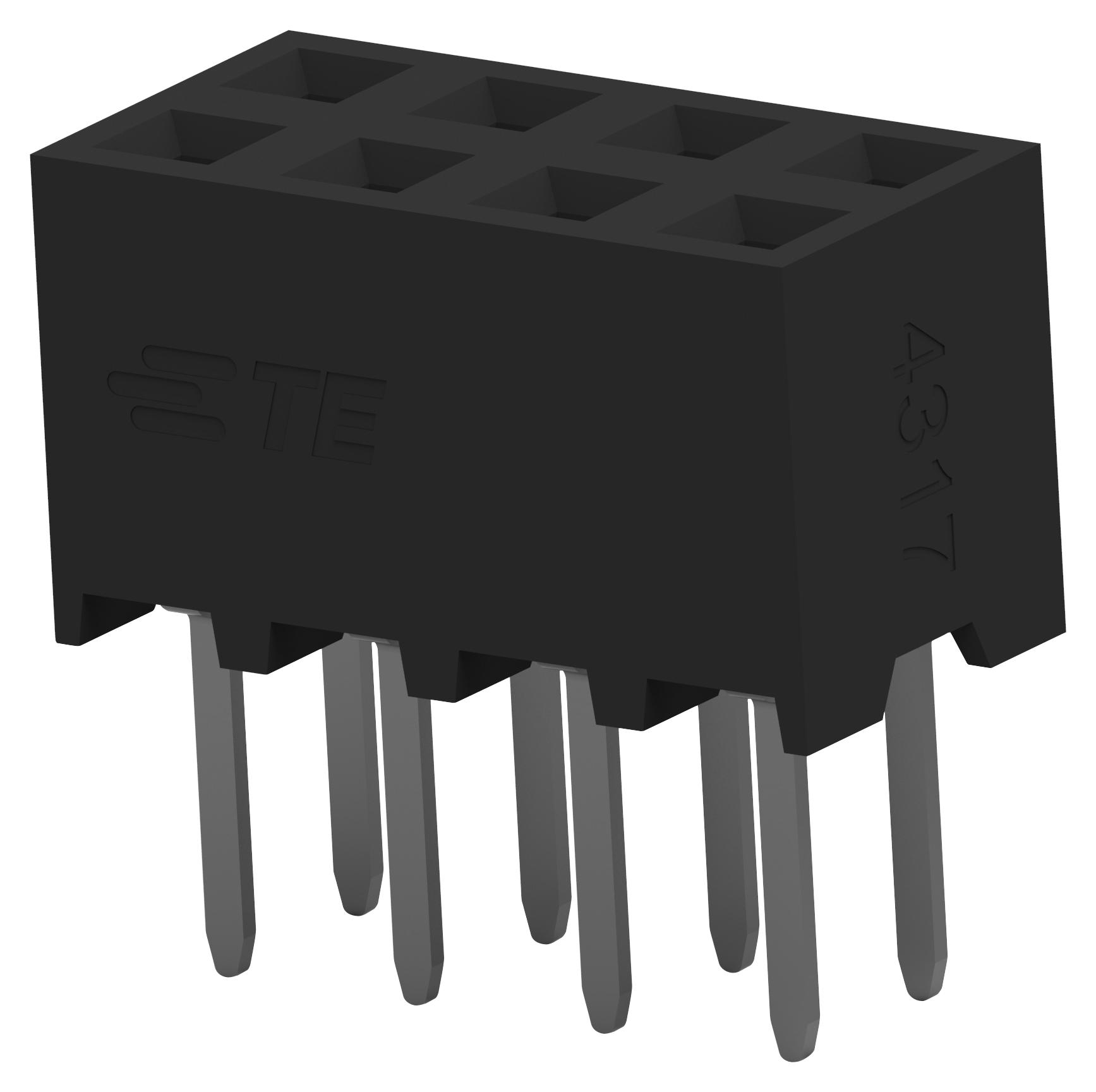

TE CONNECTIVITY 23148208 2mm Board-to-Board Receptacle
TE Connectivity's AMPMODU 2mm Board-to-Board receptacles are designed for reliable signal transfer in a compact form factor. Featuring phosphor bronze contacts with dual cantilever beams and housed in high-temperature liquid crystal polymer (LCP) plastic, these receptacles offer increased contact surface area and are suitable for automated surface-mount, through-hole-reflow, and traditional through-hole mount processes. They are ideal for applications such as PLC, servo drives, industrial controls, material handling, and instrumentation.
TE CONNECTIVITY 23148208 2mm Board-to-Board Receptacle Specifications:
- Centerline: 2.00mm [0.079"]
- Contact Type: Dual beam receptacle
- Entry Type: Top- and dual-entry vertical and horizontal
- Mounting Type: Surface-mount and through-hole
- Solder Tail Lengths: 1.6mm to 2.4mm [0.063" to 0.094"]
- Positions per Row: Up to 25
- Environmental: UL94V0, halogen free / low halogen
- Operating Temperature: -40°C to 125°C
- Vibration: No electrical discontinuity greater than 1 microsecond
- Reflow Solder Temperature: Capable to 260°C
- Plating Options: 30 μ " [0.76 μ m] Gold, 15 μ ” [0.38 μ m] Gold, 4 μ '' [0.1 μ m] Gold
- Contact Material: Phosphor Bronze
- Housing Material: High temperature plastic (LCP), UL 94V0, Black
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Certifications: UL Certified, VDE Approval Pending
- Product Specification: 108-64040
- Application Specification: 114-32186
